2xLAN Extended T range HDMI Intel Core i5 Intel Core i7 Intel Core i9 IP65 LAN MIL-STD-810 Screen Size 15"

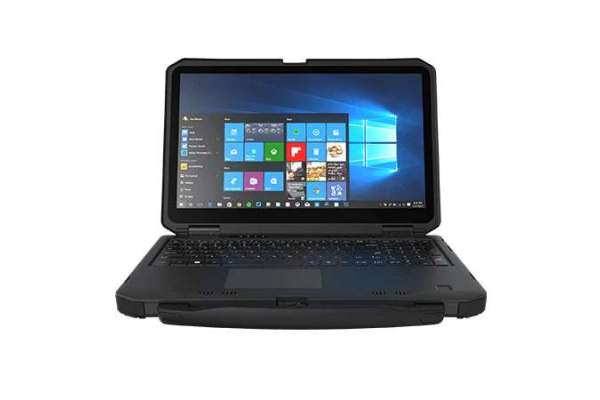

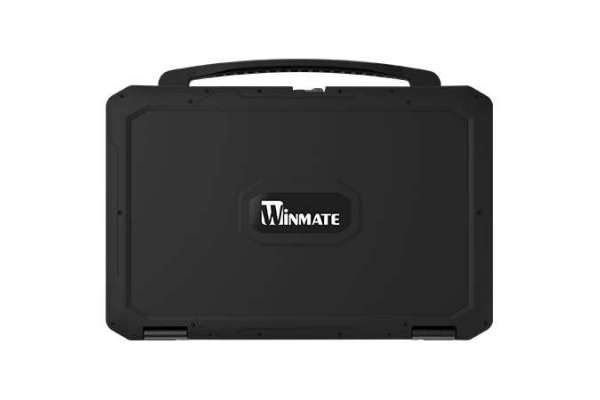

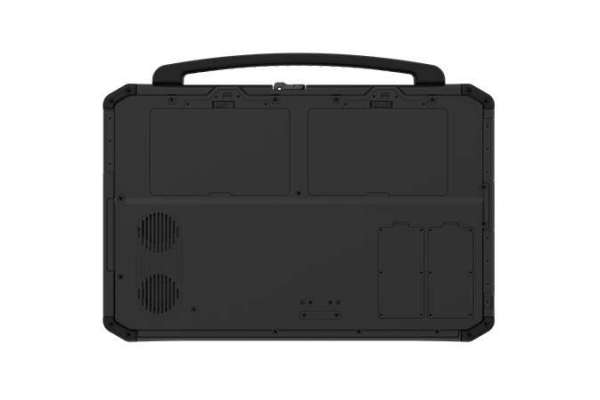

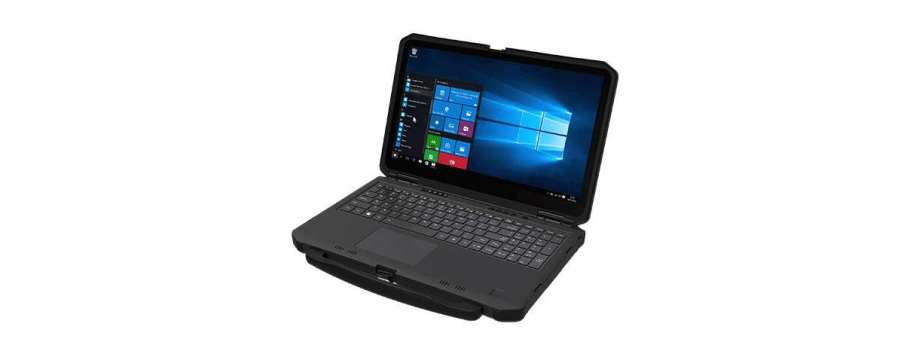

15.6” Rugged Laptop with Intel® Alder Lake Processor 12th generation Winmate L156AD

Price and avalability

Partnumber Description Price VAT incl Avalability
L156AD/i5-12/16/1000 Захищений ноутбук Winmate L156AD, ip65, 15.6" FHD (1920 x 1080), 800nits, touch, 2 MP Front camera, Intel Core i5-1235U, RAM 16Gb, 1 TB NVMe SSD, WiFi/BT/GPS, Win 10 IoT Ent. LTSC (64 bit)  163 512,0 Доступно
  • 12th generation Intel® Processor Family – Alder Lake Processor
  • 15.6” FHD Panel resolution with PCAP touch
  • Dual battery with hot-swappable design for whole-day-work
  • Anti-glare technology for sunlight readability
  • Magnesium alloy enclosure with double injection for drop protection
  • IP65 waterproof and dustproof

Additional information

Display

Size 15.6 inches
Type Projected Capacitive Multi Touch
Resolution 1920x1080
Panel Brightness 800.0 nits
Contrast Ratio 800:1
View Angles 85,85,85,85
Bonding Optical Bonding for Sunlight Viewability

System Specification

Processor
  • Intel Core i5-1235U (up to 4.4GHz)
  • Intel Core i7/i9 Processor (Optional)
Memory
  • 8GB DDR5 SDRAM
  • 16GB DDR5 SDRAM (Optional)
  • 32GB DDR5 SDRAM (Optional)
Storage
  • 256GB M.2 NVMe SSD
  • 512GB M.2 NVMe SSD (Optional)
  • 1TB M.2 NVMe SSD (Optional)
  • 2TB M.2 NVMe SSD (Optional)
  • 2nd storage available with up to 2TB M.2 NVMe SSD (Optional)
Smart Card Reader Smart Card Reader
Security
  • Trusted Platform Module (TPM) 2.0
  • Kensington Lock
Operating System
  • Windows 10 IoT Enterprise LTSC (64 bit)
  • Windows 11 IoT Enterprise LTSC (64 bit) (Optional)
WLAN Support
BT Support
WWAN 4G LTE (Optional)
GNSS GPS, GLONASS
RFID HF RFID reader 13.56 MHz (Optional)
Fingerprint Scanner Fingerprint scanner (Optional)

Camera

Front Camera 2MP front camera

Mechanical

Dimension 387.6 x 256 x 38.8 mm
Weight 3.8kg
Cooling System Fan design

IO Ports

USB Port 3 x USB 3.0 (Type A), 1 x USB 3.0 (Type C)
Serial Port 1 x DB9 (RS232 / RS422 / RS485, software switchable)
LAN 2 x RJ45-10/100/1000 GigaLAN port
Video 1 x HDMI 4K Output (Optional)
Audio
  • 1 x Audio combo 3.5mm audio combo jack
  • Dual Digital Mic With Noise Cancellation
  • Dual Speaker
SD Card Slot 1 x Micro SDXC Slot
SIM Card Slot 1 x Nano SIM card slot
Indicator 4x LED Indicator for Power, Battery, HDD, RF status

Environment

Operating Humidity 10% to 90% RH, non-condensing
Operating Temperature -20°C to 60°C
Storage Temperature -30°C to 70°C
Shock MIL-STD-810H Method 516.8 Procedure I
Vibration MIL-STD-810H Method 514.8 Procedure I
Drop MIL-STD-810H Method 516.8, 3 ft
IP rating IP65
EMC
  • MIL-STD-461G CE101, CE102, RE101, RE102, CS118 (Default)
  • MIL-STD-461G CS101, CS114, CS115, CS116, RS101, RS103 (Optional)

Certification

Certification CE, FCC

Security Function

SOTI MobiControl SOTI MobiControl Compliance
Kensington Lock Kensington Lock Support

Control

Button
  • 1 x Power,
  • 4 x Programmable Function Keys

Power

Battery Hot­swappable 2 x 11.55V typ. 3220 mAh Li­Ion Battery (3S1P)
Battery Operating Time Standard. Battery: 11 hours
Power Rating 19V DC
Adapter 100-240V, 50-60Hz, 120W / 19V DC

Accessory

Accessory
  • Adapter and Power Cord
  • Standard Battery
