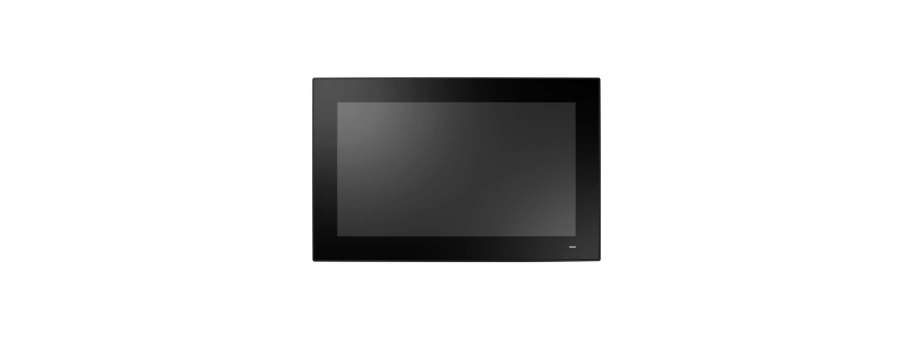

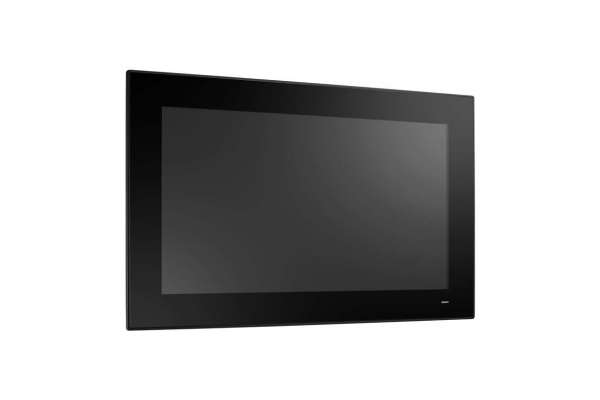

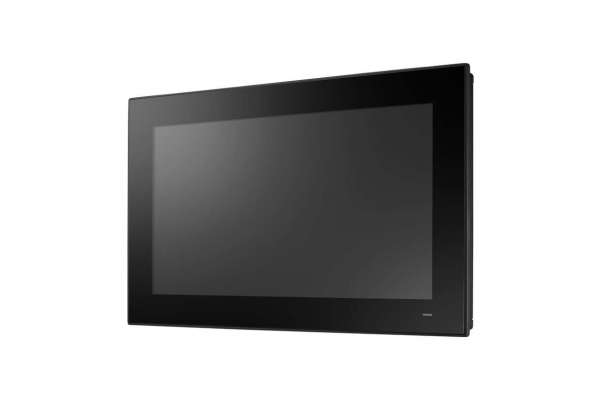

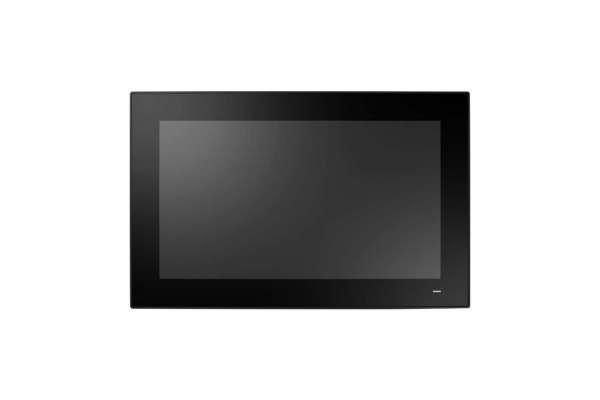

15.6" Fanless Widescreen Panel PC with Intel® 13th Gen Core™ i7/i5/i3 Processor Advantech PPC-415W

Manufacturer: Advantech
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-415W-PD3A Панельний комп'ютер Advantech, 15.6" PPC w/Intel i3-1315URE, P-CAP  106 250,0
PPC-415W-PD5A Панельний комп'ютер Advantech, 15.6" PPC w/Intel i5-1345URE, P-CAP  119 678,0
PPC-415W-PD7A Панельний комп'ютер Advantech, 15.6" PPC w/Intel i7-1365URE, P-CAP  135 173,0

Designed for high-performance computing 13th gen applications, PPC-415W with a 15.6" FHD provides a superior human-machine interface and reliability, with multi-touch screen, rich I/O and aluminum alloy front bezel. The inclusion of PCIe/PCI slot for fieldbus or proprietary card expansion increases the system’s compatibility for diverse applications. In addition, Time Sensitive Network(TSN)configuration integrated allows more possibilities for optimized industrial applications.

  • 15.6" true-flat Full HD LCD panel with projected capacitive touchscreen, anti-glare coating
  • Intel® Core™ i7-1365URE/i5-1345URE/i3-1315URE processor with fanless system design
  • Supports PCIe x4 or PCI expansion
  • 1 x isolated RS-422/485 with auto flow
  • Wide input power range (9 ~ 32 VDC)
  • Dual 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
  • 3 x Independent displays
  • 1 x M.2 bay (2242/2280) for storage only
  • Support TPM2.0 hardware security
  • Supports VESA 100 mounting interface

Additional information

System
CPU i7-1365URE i5-1345URE i3-1315URE
Core 10 10 6
Frequency 1.70 GHz upto 4.9 GHz with Turbo 1.40 GHz upto 4.6 GHz with Turbo 1.20 GHz upto 4.5 GHz with Turbo
Cache 12 MB Intel® Smart Cache 12 MB Intel® Smart Cache 10 MB Intel® Smart Cache
Memory 2 x SODIMM, DDR5 4800, max. 32GB x 2 2 x SODIMM, DDR5 4800, max. 32GB x 2 2 x SODIMM, DDR5 4800, max. 32GB x 2
Storage
  • 1 x 2.5" SATA bay (Max. 7mm)
  • 1 x M.2 2242/2280 M Key slot for Storage (SATA or NVME PCIe x 4 , support SATA RAID)
  • 1 x 2.5" SATA bay (Max. 7mm)
  • 1 x M.2 2242/2280 M Key slot for Storage (SATA or NVME PCIe x 4 , support SATA RAID)
  • 1 x 2.5" SATA bay (Max. 7mm)
  • 1 x M.2 2242/2280 M Key slot for Storage (SATA or NVME PCIe x 4 , support SATA RAID)
Network (LAN) 2 x Intel I226LM controller; Speed: 10M / 100M / 1000M / 2.5G 2 x Intel I226LM controller; Speed: 10M / 100M / 1000M / 2.5G 2 x Intel I226LM controller; Speed: 10M / 100M / 1000M / 2.5G
I/O
  • 5 x Serial ports: 2 x RS-232, 1 x RS-422/485 with 1K VDC isolation,2 x RS-232 (on right side optional)
  • 3 x USB3.2, 1 x USB2.0
  • 1 x Line-Out, 1 x Mic-In
  • 1 x HDMI 1.4
  • 1 x DisplayPort (1.4a)
  • 1 x 8bit GPIO (optional)
  • 5 x Serial ports: 2 x RS-232, 1 x RS-422/485 with 1K VDC isolation,2 x RS-232 (on right side optional)
  • 3 x USB3.2, 1 x USB2.0
  • 1 x Line-Out, 1 x Mic-In
  • 1 x HDMI 1.4
  • 1 x DisplayPort (1.4a)
  • 1 x 8bit GPIO (optional)
  • 5 x Serial ports: 2 x RS-232, 1 x RS-422/485 with 1K VDC isolation,2 x RS-232 (on right side optional)
  • 3 x USB3.2, 1 x USB2.0
  • 1 x Line-Out, 1 x Mic-In
  • 1 x HDMI 1.4
  • 1 x DisplayPort (1.4a)
  • 1 x 8bit GPIO (optional)
Expansion
  • 1 x M.2 2230 E Key slot for wireless card
  • 1 x PCIe x 4 ; 1 x PCI (optional)
  • 1 x M.2 2230 E Key slot for wireless card
  • 1 x PCIe x 4 ; 1 x PCI (optional)
  • 1 x M.2 2230 E Key slot for wireless card
  • 1 x PCIe x 4 ; 1 x PCI (optional)
Watchdog Timer 255 timer levels, set up by software 255 timer levels, set up by software 255 timer levels, set up by software
Security 1 x TPM2.0 1 x TPM2.0 1 x TPM2.0
Speaker 2 x 1W 2 x 1W 2 x 1W

Physical Characteristics
Dimensions 419.7 x 269 x 59 mm (16.5 x 10.6 x 2.3 in) 419.7 x 269 x 59 mm (16.5 x 10.6 x 2.3 in) 419.7 x 269 x 59 mm (16.5 x 10.6 x 2.3 in)
Enclosure Front bezel Die cast aluminum alloy Rear: PC+ABS Die cast aluminum alloy Rear: PC+ABS Die cast aluminum alloy Rear: PC+ABS
Mounting Panel / VESA (100) Panel / VESA (100) Panel / VESA (100)
Weight 5.4kg (11.9 lb) 5.4kg (11.9 lb) 5.4kg (11.9 lb)

OS Support
OS Support Microsoft® Windows 11 (64-bit), Win 10 IOT LTSC, Linux Microsoft® Windows 11 (64-bit), Win 10 IOT LTSC, Linux Microsoft® Windows 11 (64-bit), Win 10 IOT LTSC, Linux

Power Consumption
Input Voltage 9 ~ 32 VDC 9 ~ 32 VDC 9 ~ 32 VDC
Power Consumption i5-1345URE Typ.70W Max.105W (Burn-in test 8.1 in Windows 10 64bit) i5-1345URE Typ.70W Max.105W (Burn-in test 8.1 in Windows 10 64bit) i5-1345URE Typ.70W Max.105W (Burn-in test 8.1 in Windows 10 64bit)

LCD
Display Type 15.6" TFT LCD (LED backlight) 15.6" TFT LCD (LED backlight) 15.6" TFT LCD (LED backlight)
Max. Resolution 1920 x 1080 1920 x 1080 1920 x 1080
Viewing Angle 89(left), 89(right), 89(up), 89(down) 89(left), 89(right), 89(up), 89(down) 89(left), 89(right), 89(up), 89(down)
Luminance (cd/m2 ) 450 450 450
Contrast Ratio 800 800 800
Backlight Lifetime 50,000 hr (min.) 50,000 hr (min.) 50,000 hr (min.)

Touchscreen
Touch Type Multi-touch projected capacitive Multi-touch projected capacitive Multi-touch projected capacitive
Light Transmission 88 % ± 2 % 88 % ± 2 % 88 % ± 2 %
Controller USB interface USB interface USB interface

Environment
Operating Temperature -20 ~ 60 °C (-4 ~ 140 °F) -20 ~ 60 °C (-4 ~ 140 °F) -20 ~ 60 °C (-4 ~ 140 °F)
Storage Temperature -40 ~ 60 °C (-40 ~ 140 °F) -40 ~ 60 °C (-40 ~ 140 °F) -40 ~ 60 °C (-40 ~ 140 °F)
Relative Humidity 95% @ 40 °C (Non-Condensing) 95% @ 40 °C (Non-Condensing) 95% @ 40 °C (Non-Condensing)
Shock Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27 Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27 Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27
Vibration Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, Follows IEC 60068-2-64 Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, Follows IEC 60068-2-64 Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, Follows IEC 60068-2-64
EMC CE, FCC Class B, EN 61000-6-2, BSMI, UKCA CE, FCC Class B, EN 61000-6-2, BSMI, UKCA CE, FCC Class B, EN 61000-6-2, BSMI, UKCA
Safety CB, UL, CCC, UKCA CB, UL, CCC, UKCA CB, UL, CCC, UKCA
Front Panel Protection IP66 compliant IP66 compliant IP66 compliant
