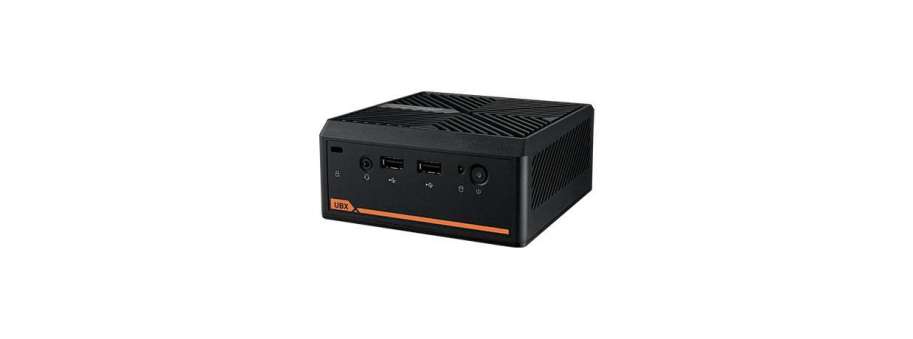

Signage & Edge PC Advantech UBX-330M

NUC-Sized Edge Computer with Intel® Core™ Ultra 7/5 Processors and I/O Expansion, Supporting Intel Arc Graphics and vPro Enterprise on Selected SKUs Advantech UBX-330M

The UBX-330M is a NUC-sized Edge Intelligent Computer, powered by Intel Core Ultra 7/5 processors and three AI engines for low-latency, real-time processing. With flexible I/O expansion, Intel Arc graphics, and vPro Enterprise security (select SKUs), it ensures seamless connectivity and enterprise-grade protection. Built for reliability, advanced backup and recovery features enable real-time data replication, secure snapshots, and failover support, minimizing downtime in critical applications. Compact yet powerful, UBX-330M delivers top-tier performance, adaptability, and data resilience for intelligent city services and AI-driven workloads.

• Powered by Intel Core Ultra 7 / Ultra 5 processors
• Equipped with three AI engines for low-latency, fast response
• Offers flexible and versatile I/O expansion
• Compact NUC-sized cubic form factor
• Includes Intel Arc graphics and vPro Enterprise on select SKUs
• Supports advanced backup and disaster recovery technology*
• Supports AI modules through M.2 expansion, delivering efficient edge AI inference
• Efficient thermal dissipation solution with a quiet acoustic design
• Offers a versatile mounting kit compatible with VESA, wall mount, pole mount, DIN rail, and ARM mount options
• Includes a dedicated power adapter bracket for improved cable management

Additional information

Processor	Core Ultra 5 125H Core Ultra 5 135U Core Ultra 7 155U
Graphic Engine	125H: Intel Arc graphics 135U/155U: Intel graphics
TPM	TPM 2.0 chip
Memory	DDR5-SODIMM *1, up to 48G
Storage	M.2 2280 B+M Key *1, supports NVMe, SATA SSD and Apacer CoreSnapshot Quick Backup SSD*

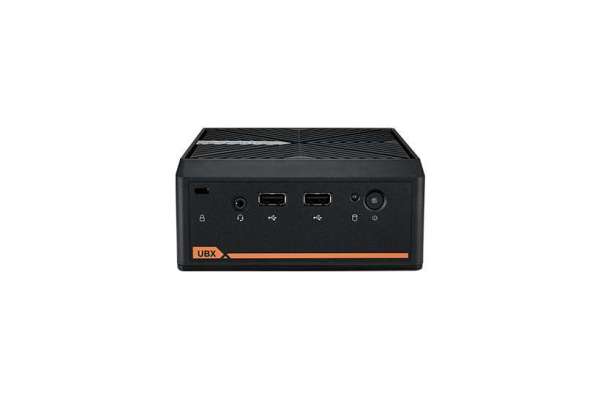

Front I/O
USB	USB Type A 2.0 *2
Audio	Mic-in/Line-out Combo Audio *1
Button	Power Pushbutton *1
LED	Storage Indicator *1
Kensington Lock	Kensington Lock *1

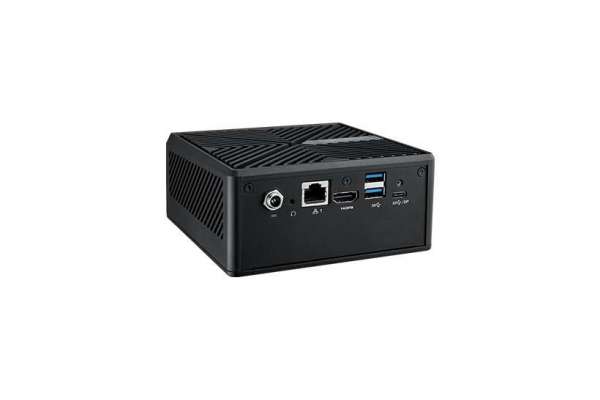

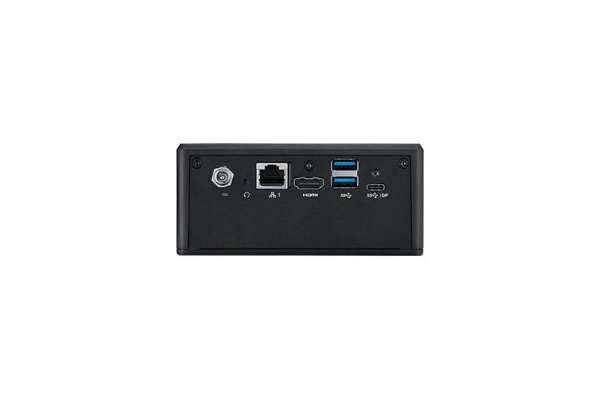

Rear I/O
USB	USB 3.2 *2
Video	USB-C *1, supports DisplayPort protocols and 10W power delivery HDMI 2.1 *1
LAN	LAN *1, up to 2.5 Gbps
Button	System Recovery Button *1 (Equipped with Apacer CoreSnapShot Quick Backup SSD)
Power	DC 12V Power Jack w/ Lock *1
WiFi	M.2 2230 E Key *1

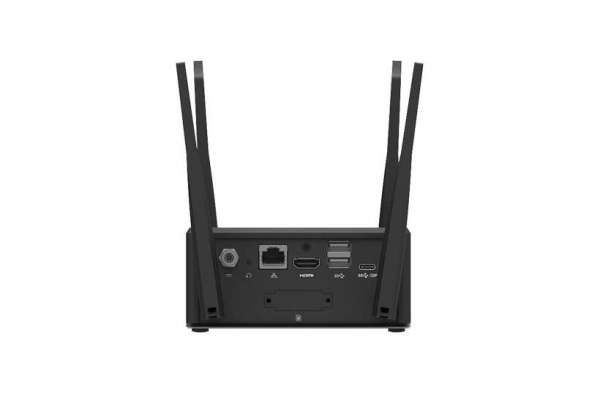

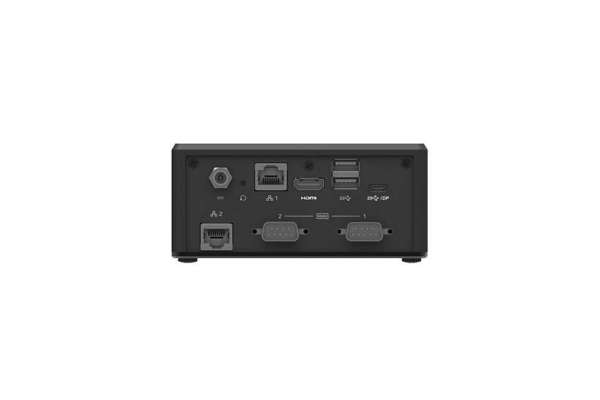

Expansion	UBX-300E-CM00: – COM *2, supports RS232 only – LAN *1, supports up to 2.5 Gbps UBX-300E-SA00: – 2.5" SATA Storage *1 UBX-300E-TE00: – M.2 3052 B Key *1 – SIM Slots *1 – Antenna *4
Intel vPro	125H/155U: Intel vPro Essential 135U: Intel vPro Enterprise
Operating System	Windows 10 LTSC 21H2 Windows 11 LTSC 24H2 Ubuntu 24.04
Environment
Operating Temperature	0 ~ 40 °C
Storage Temperature	-20 ~ 60 °C
Physical
Dimensions (W x D x H)	125 x 125 x 58.25 mm
Weight	NW: 0.8 Kg
Software	SUSI, DeviceOn
Certificate	CE, FCC Class B, CCC, BSMI, UL, CB, EN 62368, ErP, RF RED
