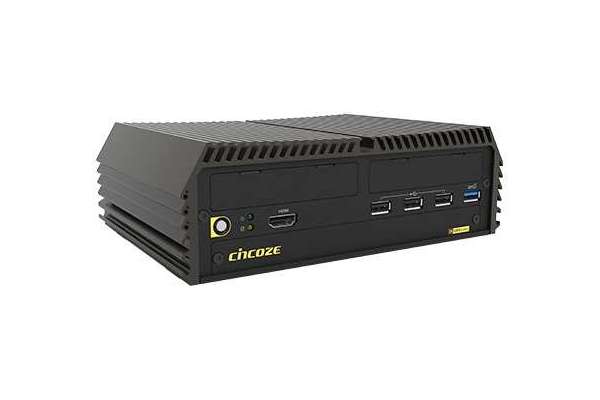

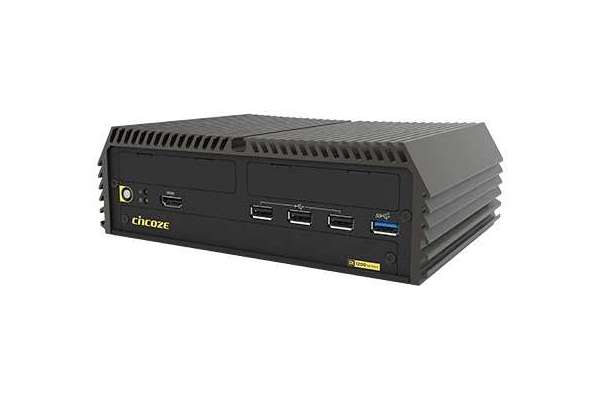

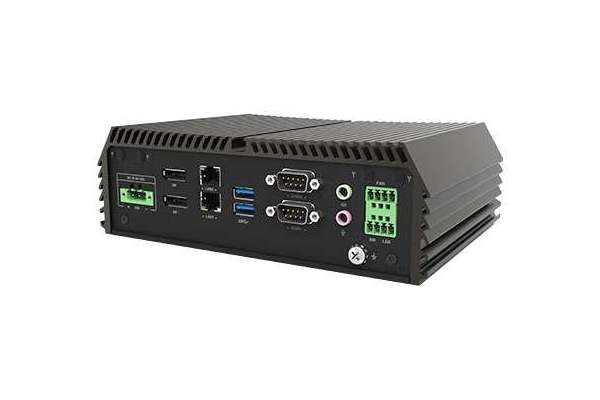

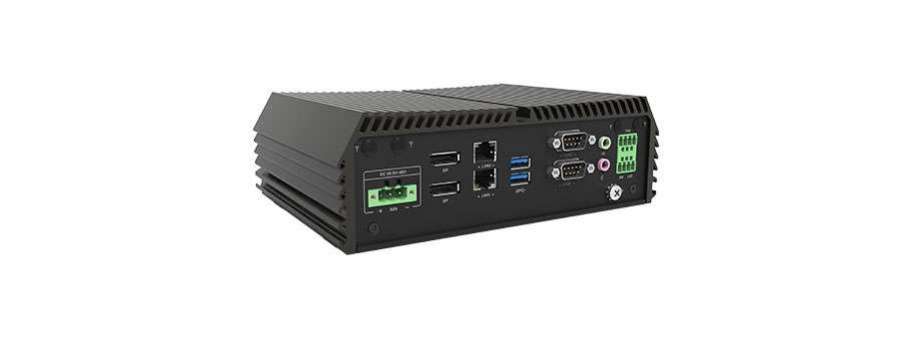

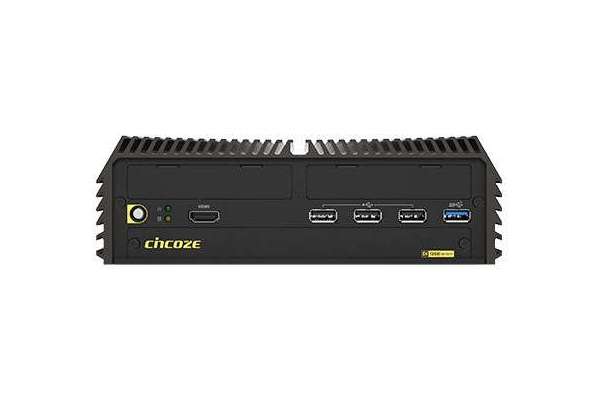

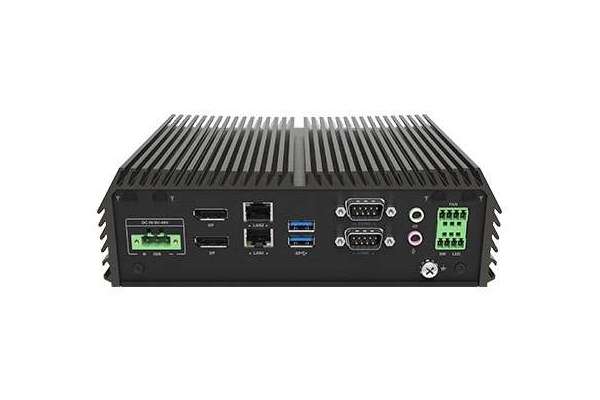

Intel® 12th Gen. Alder Lake-P Platform, High Performance and Power Saving Rugged Embedded Computer Cincoze DI-1200

The DI-1200, with a 12th generation Intel® Core™ U-series (Alder Lake-P Platform) processor, provides outstanding performance and boasts a low power consumption of 15W. The compact DI-1200 offers rich I/O interfaces and expansion options, meeting the requirements for high-performance, rugged embedded computers used in confined spaces. It suits for industrial automation, warehousing and logistics, transportation, environmental monitoring, and IoT applications.

  • Onboard 12th Intel® Alder Lake-P U-Series Core™ i7/i5/i3 Processors
  • 1 x DDR5 SO-DIMM Sockets, Supports up to 4800MHz 32GB Memory
  • Quad Independent Display (2x DP/HDMI/CMI Display)
  • 1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion
  • 1x M.2 Key B Type 3042/3052 Socket for 5G/Storage/Add-on Card Expansion
  • CMI Technology for Optional I/O Module Expansions
  • CFM Technology for Power Ignition Sensing Function & PoE
  • Wide Operating Temperature -40°C to 70°C

Additional information

System

Processor

Onboard 12th Intel® Alder Lake-P U-Series CPU:

- Intel® Core™ i7-1265UE 10 Cores Up to 4.70 GHz, TDP 15W

- Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W

- Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W

Memory 1x DDR5 SO-DIMM Socket, Supports Un-buered and non-ECC Type, Up to 32GB
BIOS AMI BIOS

Graphics

Graphics Engine
  • Integrated Intel® Iris® Xe Graphics: Core™ i7-1265UE, i5-1245UE
  • Integrated Intel® UHD Graphics: Core™ i3-1215UE
Maximum Display Output Supports Quad Independent Display
HDMI 1x HDMI Connector (3840 x 2160@60Hz)
DP 2x DisplayPort Connector (3840 x 2160@60Hz)
CMI Display 1x CMI Interface for Optional CMI-DP/CMI-HDMI/CMI-VGA Module Expansion

Audio

Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

I/O

LAN

2x 2.5 GbE LAN, RJ45

- GbE1: Intel® I225

- GbE2: Intel® I225

COM 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB
  • 1x 10Gbps USB 3.2 Gen2 x1, Type A
  • 2x 5Gbps USB 3.2 Gen1 x1, Type A
  • 3x 480 Mbps USB 2.0, Type A

Storage

SSD/HDD 1x 2.5" SATA HDD/SSD Bay (SATA 3.0)
M.2 SSD 1 x M.2 SSD shared by M.2 Key B Type 3052 Socket
RAID Support RAID 0/1

Expansion

M.2 Key E Socket 1x M.2 Key E Type 2230 Socket, Support Wireless / Intel CNVi Module Expansion
M.2 Key B Socket 1x M.2 Key B Type 3042/3052 Socket, Support 5G / Storage / Add-on Card Expansion
SIM Socket 2 x Front Accessible SIM Socket
CMI (Combined Multiple I/O) Interface
  • 1x CMI Interface for optional CMI-LAN Module Expansion
  • 1x CMI Interface for optional CMI-Display / CMI-COM / CMI-DIO Module Expansion
CFM (Control Function Module) Interface 1x CFM IGN Interface for optional CFM-IGN Module Expansion

Other Function

External FAN Connector 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Clear CMOS Switch 1x Clear CMOS Switch
Reset Button 1x Reset Button
Instant Reboot Support 0.2sec Instant Reboot Technology
Watchdog Timer Software Programmable Supports 256 Levels System Reset

Power

Power Button 1x ATX Power On/Off Button
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off 1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED 1x Remote Power LED, 2-pin Terminal Block

Physical

Dimension ( W x D x H ) 203 x 142 x 66.8 mm
Weight Information 1.8 KG
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / Side / DIN-RAIL / VESA Mount
Physical Design
  • Fanless Design
  • Cableless Design
  • Jumper-less Design
  • Unibody Design

Operating System

Windows Windows® 10
Linux Supports by project

Environment

Operating Temperature
  • -40°C to 70°C
  • PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling)
  • With extended temperature peripherals; Ambient with air flow
  • According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 70°C
Relative Humidity 95%RH @ 70°C (non-Condensing)
Shock, Vibration MIL-STD-810H
EMC
  • CE, UKCA, FCC, ICES-003 Class A
  • EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only)
  • EN 50155 (EN 50121-3-2 Only)
  • E-mark (Pending)
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 50121-3-2 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN 61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.)
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
