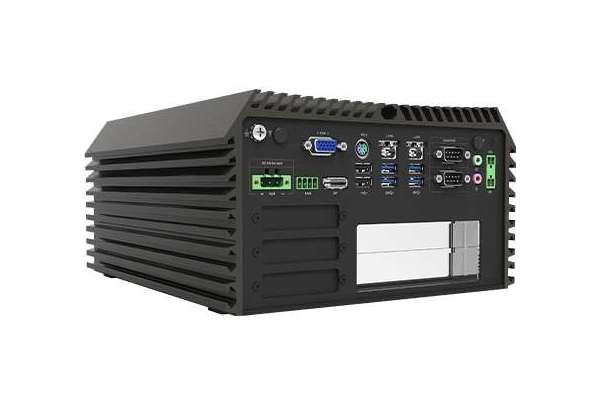

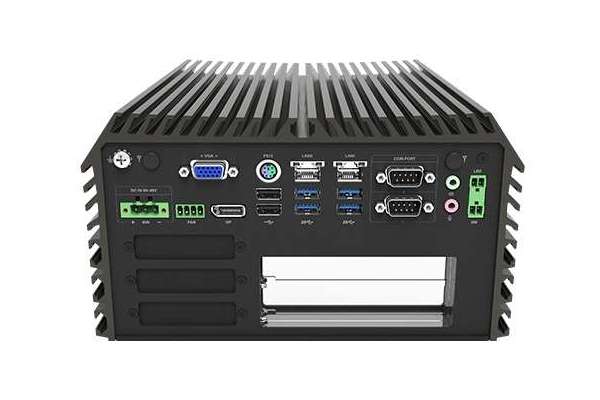

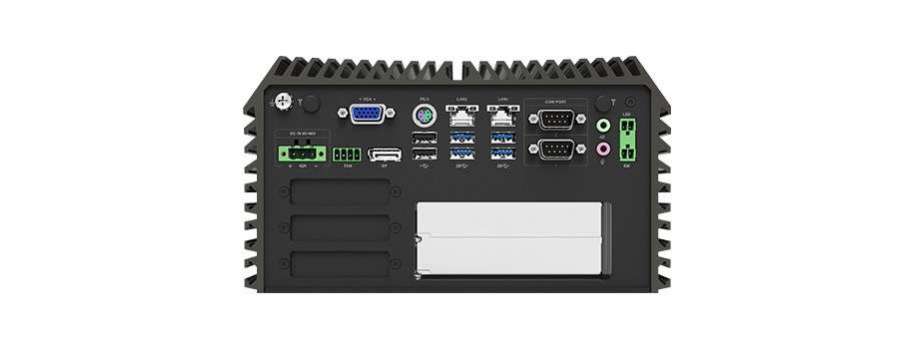

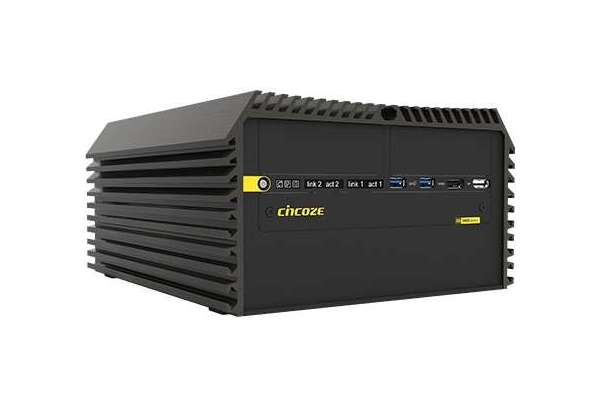

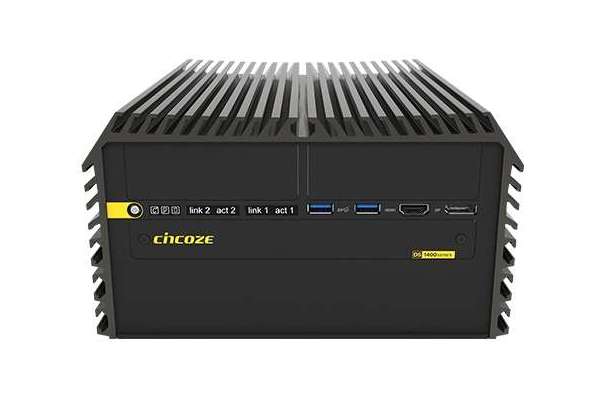

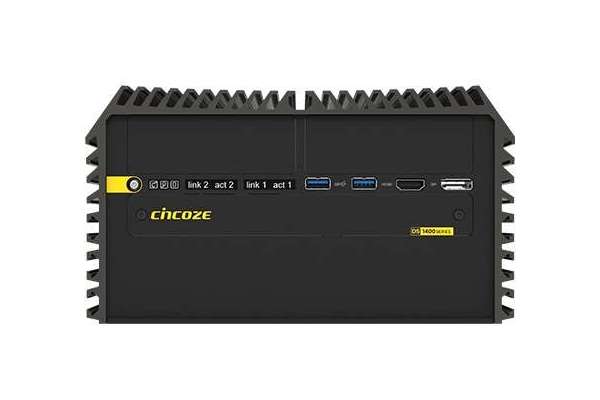

High Performance, Expandable and Modular Rugged Embedded Computer on 12th Generation Intel® Core™ Series Processors with 2x PCI/PCIe Cincoze DS-1402
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| DS-1402-R10 | Компактний комп'ютер Cincoze DS-1402-R10, 13/12th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 2x PCI/PCIe Expansion Slot | 76 755,0 |
The DS-1402 is a high-performance, expandable, and rugged embedded computer, boasting outstanding performance as well as rich industrial I/O interfaces and robust functionalities. To meet various application needs, it has dual PCI/PCIe expansion capability and it can also flexibly expand the required I/O and specific functions through Cincoze's unique CMI, CFM, and MEC modules. Moreover, the DS-1402 has passed multiple international certifications, ensuring stable and reliable performance in diverse harsh environments. It is an ideal choice for manufacturing and railway applications.
Intel® 12th Gen Alder Lake-S Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
• 2x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHz, 64GB
- 2x GbE LAN and optional 2x 10GbE LAN
- 2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD
- 2x PCI/PCIe expansion slots
- Optional CMI modules for I/O expansion
- Optional CFM modules for ignition sensing & PoE
- Wide operating temperature -40°C to 70°C
- MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)
- Safety Standard: UL, cUL, CB, IEC, EN 62368-1
Additional information
System |
|
| Processor |
• 12th Generation Intel® Alder Lake-S Series CPU: - Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W - Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W - Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W - Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W - Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W - Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W - Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W - Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W - Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W - Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W - Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W - Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W |
| Chipset | Intel R680E Chipset |
| Memory | 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-bu ered and ECC Type, Up to 64GB |
| BIOS | AMI BIOS |
Graphics |
|
| Graphics Engine |
|
| Maximum Display Output | Supports Quad Independent Display |
| VGA | 1x VGA Connector : 1920 x 1080@60Hz |
| DP | 2x DP Connector : 4096 x 2304@60Hz * Verified maximum DP resolution: 3840x2160 @60Hz |
| HDMI | 1x HDMI Connector : 4096x2160@30Hz * Verified maximum resolution: 3840x2160 @30Hz |
Audio |
|
| Audio Codec | Realtek® ALC888, High Definition Audio |
| Line-out | 1x Line-out, Phone Jack 3.5mm |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm |
I/O |
|
| LAN |
2x GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210 |
| COM | 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| USB |
|
| PS/2 | 1 x PS/2, 6 Pin Mini-DIN Female Connector |
Storage |
|
| SSD/HDD |
|
| mSATA | 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket ) |
| M.2 SSD | 1x M.2 Key M Type 2280 Socket, Support PCIe Gen3 x4 NVMe SSD or SATA SSD ( SATA 3.0 ) |
| RAID | Support RAID 0/1/5/10 |
Expansion |
|
| PCI Express | 2x PCI/PCIe Expansion Slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm |
| Mini PCI Express | 3x Full-size Mini-PCIe Socket |
| SIM Socket | 2x SIM Socket |
| CMI (Combined Multiple I/O) Interface |
|
| CFM (Control Function Module) Interface | 1x CFM IGN Interface for optional CFM-IGN Module Expansion |
Other Function |
|
| External FAN Connector | 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
| Power Ignition Sensing | Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module) |
| Clear CMOS Switch | 1x Clear CMOS Switch |
| Reset Button | 1x Reset Button |
| Instant Reboot | Support 0.2sec Instant Reboot Technology |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset |
Power |
|
| Power Button | 1x ATX Power On/Off Button |
| Power Mode Switch | 1x AT/ATX Mode Switch |
| Power Input | 9 - 48VDC, 3-pin Terminal Block |
| Remote Power On/Off | 1x Remote Power On/Off, 2-pin Terminal Block |
| Remote Power LED | 1x Remote Power LED, 2-pin Terminal Block |
Physical |
|
| Dimension( W x D x H ) | 227 x 261 x 128 mm |
| Weight Information | 5.44 kg |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting | Wall |
| Physical Design |
|
Reliability & Protection |
|
| Reverse Power Input Protection | Yes |
| Over Voltage Protection |
|
| Over Current Protection | 15A |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation |
| MTBF | 371,274 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 |
Operating System |
|
| Windows | Windows® 10 |
| Linux | Supports by project |
Environment |
|
| Operating Temperature |
35W TDP Processor: -40 °C to 70 °C 65W TDP Processor: -40 °C to 50 °C (With External Fan Kit) - With extended temperature peripherals; Ambient with air flow - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | - 40 °C to 85 °C |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) |
| Shock | MIL-STD-810G |
| Vibration | MIL-STD-810G |
| EMC |
|
| EMI |
|
| EMS |
|
| Safety | UL, cUL, CB, IEC, EN 62368-1 |
