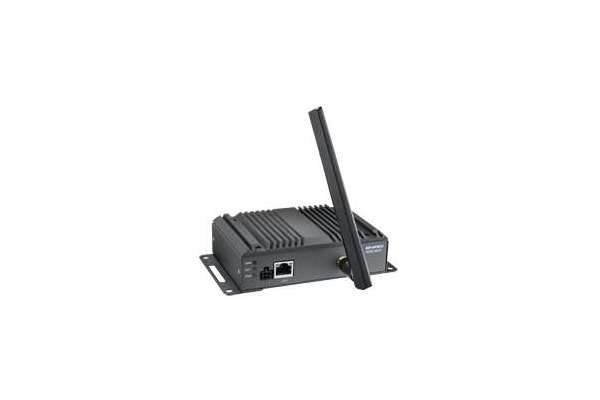

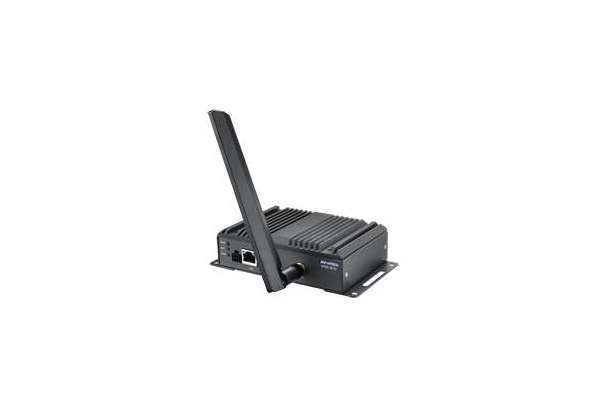

Industrial wireless Gateway LoRaWAN Ethernet 10/100 Mbps, auto MDI/MDIX Advantech WISE-6610
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| WISE-6610-N100-A | LoRaWAN Gateway 100 nodes with 915 Mhz | 45 310,3 | |
| WISE-6610-E100-A | Шлюз Advantech WISE-6610, LoRaWAN Gateway 100 nodes with 868 Mhz | 45 310,3 | |
| WISE-6610-A100-A | LoRaWAN Gateway 100 nodes with 923 Mhz | 45 310,3 | |
| WISE-6610-N500-A | LoRaWAN Gateway 500 nodes with 915 Mhz | 56 976,4 | |
| WISE-6610-E500-A | LoRaWAN Gateway 500 nodes with 868 Mhz | 56 976,4 | |
| WISE-6610-A500-A | LoRaWAN Gateway 500 nodes with 923 Mhz | 56 976,4 |
The WISE-6610 is a high-performance LoRaWAN gateway with reliable connectivity options for industrial environments and LoRaWAN protocol support for building LoRaWAN private and public networks. It also supports other protocols, including MQTT, and its hardware and software flexibility provides rich features to edge intelligence systems. The WISE-6610 allows for VPN tunnel creation with various protocols that ensure safe communication. It also provides a network server that can encrypt and convert LoRaWAN data in the device, and its redundancy-enhanced functions are specifically designed to prevent connection loss.
- Long-range wide area IoT gateway.
- LoRaWAN protocol for closed and public system application.
- Ethernet and I/O for connecting a wide array of field assets.
- DIN rail and wall mounting design.
- Low power consumption for solar and battery power applications.
- Enhanced memory for hosting custom software applications.
- Redundancy-enhanced functions for continuous data transmission
Additional information
Specifications
| WSN Support | |
| Standard | LoRaWAN |
| Frequency | 868/915 MHz |
| ANT Connector | RP-SMA Male connector x 1 |
| LAN Interface | |
| Ethernet | 10/100 Mbps, auto MDI/MDIX |
| Connector | 1 x RJ45 |
| Protection | 1.5-kV built-in magnetic isolation protectio |
| Digital I/O | |
| Port Type | 1x Digital Input On Voltage: 2.7V to 36VDC |
| Port Connector | 4-way Molex mini-fit connector |
| General | |
| LED Indicators | PWR, DAT, WAN, ETH |
| Reboot Trigger | Reset button |
| Software | |
| Network and Routing | DHCP server, NAT/PAT, VRRP, dynamic DNS client, DNS proxy, VLAN, QoS, DMVPN, NTP client/server, IGMP, BGP, OSPF, RIP, SMTP, SMTPS, SNMP v1/v2c/ v3, backup routers, PPP, PPPoE, SSL, port forwarding, host port routing, Ethernet bridging, network server |
| Configuration | SSH, Web Browser |
| Network Security | HTTPS, SSH, VPN tunnels, SFTP, DMZ, firewall (IP filtering, MAC address filtering, inbound/outbound port filtering) |
| VPN tunnelling | Open VPN client and server and P2P, L2TP, PPTP, GRE, EasyVPN, IPSec with IKEv1 and IKEv2 |
| Mechanics | |
| Dimensions (W x H x D | 150 x 37.5 x 83 mm (5.9" x 1.48" x 3.27") |
| Mounting | DIN rail, wall |
| Weight | 500g |
| Enclosure Rating | IP30 |
| Power Requirements | |
| Power Input | 9 ~ 36 VDC |
| Power Connector | 4-way Molex mini-fit connector |
| Power Consumption | 3.1/6.6/40 mW (average/peak/sleep mode) |
| Environment | |
| Operating Temperature | -40 ~ 75°C |
| Storage Temperature | -40 ~ 85°C |
| Operating Humidity | 10 ~ 95% RH |
| Regulatory Approvals | |
| EMC | EN61000-4-2, Level 3 EN61000-4-3, Level 3 EN61000-4-4, Level 3 EN61000-4-5, Level 3 EN61000-4-6, Level 3 EN61000-4-12, Level 3 EN61000-4-11, voltage dip: 70% |
| Shock | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
