All-Round Capacity Touch FullHD IP65 Screen Size 15" Screen Size 21"

15.6" HD TFT LED LCD/21.5" Full HD TFT LED LCD Standalone Multi-Touch Industrial Monitor by Advantech SPC-815(M)/ SPC-821(M)

Price and avalability

Partnumber Description Price VAT incl Avalability
SPC-821-PBEK 21.5" Push button module w/ 3 functional buttons  32 549,1
SPC-815-PBEK 15.6" Push button module w/ 3 functional buttons  29 213,8
SPC-821-WOEK 21.5" Push button Panel w/o functional buttons  19 938,6
SPC-815-WOEK 15.6" Push button panel w/o functional buttons  17 956,0

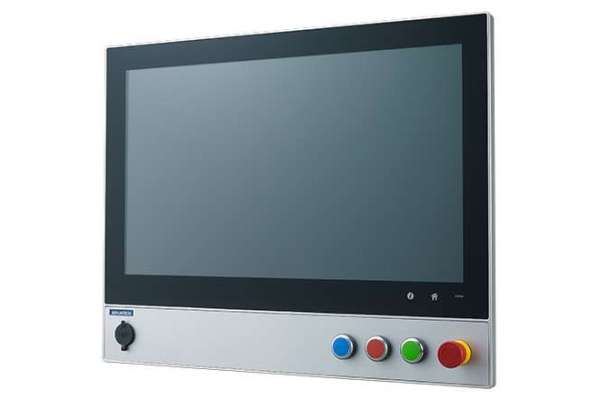

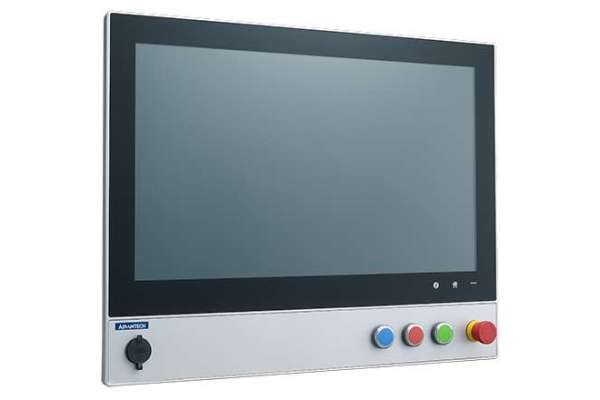

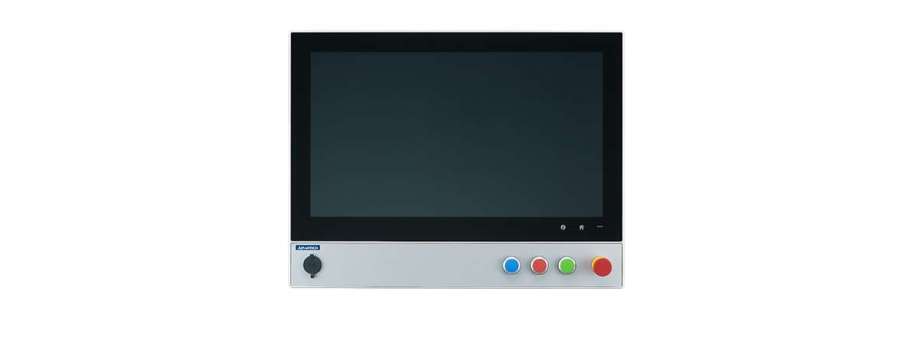

SPC-815 (M) and SPC-821 (M) are standalone multi-touch industrial monitors that can be pole mounted and integrated with an extension unit that supports RAFI FS22+ Series pushbuttons. Designed to be compatible with diverse industrial mounting standards, such as CP 40 (Rittal) and CS-480 B.Flex (Bernstein), SPC-815 (M) and SPC-821 (M) provide versatile monitors that can be installed in a variety of intelligent factories. The monitors are also equipped with a silicone-free enclosure that features all-around IP65-rated protection from water and dust. Moreover, with the inclusion of an I/O cover, all cables can be hidden for a tidy appearance and simplified wiring installation.

  • 15.6"/21.5" (Full) HD TFT LED LCD display
  • 16:9 widescreen with P-CAP multi-touch control
  • Built-in function keys for intuitive operation
  • Scratch-resistant touch panel with 7H surface hardness
  • Front-facing LED indicators show operating status
  • Silicone-free enclosure with all-round IP65-rated protection
  • Supports CP 40 (Rittal) and CS-480 B.Flex (Bernstein) mount standards
  • Front-facing USB ensures easy maintenance
  • Supports the RAFI FS22+ Series pushbuttons

Additional information

General

Certification CCC, CE, FCC Class A, UL
Cooling System Fanless design
Dimensions (W x H x D)
  • SPC-815: 402.19 x 333.19 x 67 mm (without flange for arm mount) 402.19 x 333.19 x 160 mm (with flange for arm mount)
  • SPC-821: 546.69 x 420.34 x 67 mm (without flange for arm mount) 546.69 x 420.34 x 160 mm (with flange for arm mount)

Enclosure

  • Front bezel: Die-cast aluminum alloy
  • Rear housing: Die-cast aluminum alloy
  • Front push button bracket : metal sheet

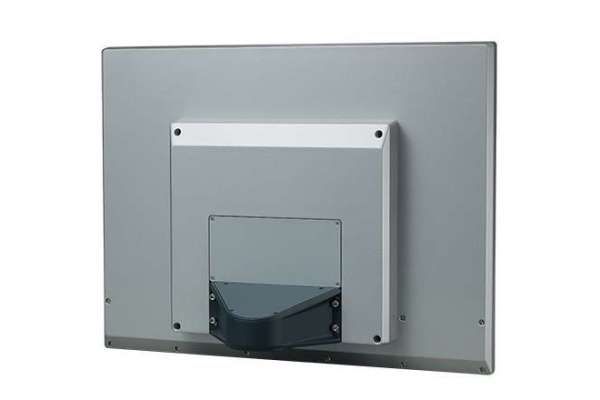

Mount Options
  • Pole Mount : Supports Rittal CP40 and Bernstein
  • CS-480 B.Flex arm system dimension
  • VESA Mount (Optional)
Power Input 24 VDC
Weight (Net)
  • 21.5": 8 kg/ 17.6 lb
  • 15.6": 7.2 kg/ 15.9 lb
Video Input DP, HDMI, HD BASE-T

LCD Display

Display Type
  • 21.5" Full HD TFT LED
  • 15.6" HD TFT LED (FHD optional)
Display Size 21.5"/15.6"
Max. Resolution
  • 21.5": 1920 x 1080
  • 15.6": 1366 x 768
Max. Colors 16.7 M
Luminance 250 (21.5")/400 (15.6") cd/m2
Viewing Angle (H/V)
  • 21.5": 178°/178°
  • 15.6": 170°/130°
Backlight 50,000 hr lifetime

Touchscreen

Light Transmission ≥88%
Resolution 4096 x 4096 dots
Type Projected capacitive
OS Support Windows® 7/8/10/XPe/CE and Linux
Hardness 7H
Multi Touch 10 points, USB interface in Win 7/8/10, Linux

Environment

Humidity 10 ~ 95% RH @ 40 °C/104 °F, non-condensing (tested for 48 hrs)
Ingress Protection All-round IP65 rating
Operating Temperature 0 ~ 55 °C (32 ~ 131 °F)
Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F)
