19" SXGA Front IP65 Industrial Monitor with HDMI, VGA & DVI Advantech IDS-3319
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| IDS-3319G-35SXA1 | Промисловий РК дісплей Advantech 19" SXGA Front IP65 Monitor, 350N, w/glass | 54 955,8 | |
| IDS-3319P-35SXA1 | Промисловий дисплей Advantech IDS-3319, 19" SXGA 350 cd/m2, Front IP65 Monitor with P-Cap Touch, -20~60°C. | 68 296,4 | Доступно |
| IDS-3319R-35SXA1 | Промисловий РК дісплей Advantech 19" SXGA Front IP65 Monitor, 350N, w/5WR TS | 59 402,4 |

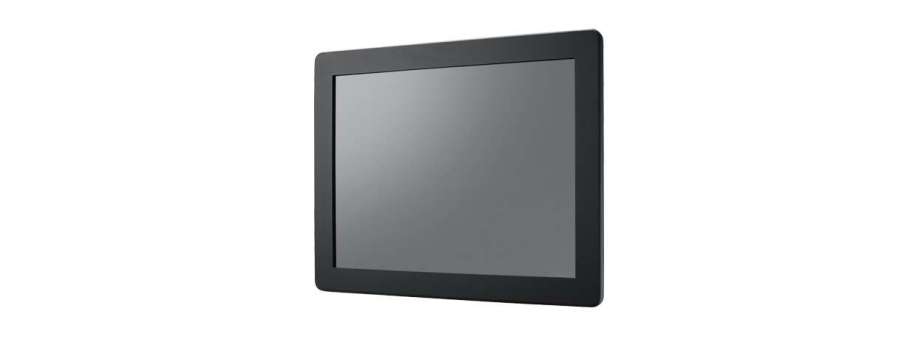

The Advantech IDS-3319 Embedded Industrial Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series provides not only IP65 ingress rating at the front surface, but also with standard integrated frame design, supporting rear and VESA mounting which brings the benefits of easy installation and provides flexibility for different applications.
- Front IP65 for waterproof and dustproof
- 19" SXGA LCD panel with LED backlight
- -20 ~ +60 °C wide range operating temperature
- 5-wire resistive, P-cap touchscreen solution or tempered smudge resistant protected glass
- Multiple signal interfaces with HDMI, VGA & DVI
- Standard integrated frame
- Versatile mounting methods for rear mounting and VESA mounting
- Anti-Reflective treatment (customised solution)
- Ultra high brightness solution of 1200 cd/m2 for outdoor applications (customized solution)
- Remote control via RS232 (customized solution)
Additional information
Display |
|
| Model | IDS-3319 |
| Size | 19" LED panel |
| Resolution | 1280 x 1024 (SXGA) |
| Viewing Angle | 85°/85° (H), 80°/80° (V) |
| Brightness | 350 (cd/m2 ) |
| Color Support | 16.7M |
| Contrast Ratio | 1000:1 |
| Response Time | 10 [msec] |
| Backlight Life (hrs) | 70,000 hrs |
Touchscreen |
|
| Touchscreen Type | 5-Wire Resistive Touchscreen / Projected Capacitive Touchscreen |
| Surface Hardness | 3H / 6H |
| Durability | 10 million touches / - |
| Transparency | 80% / 86 ± 3% |
Environment |
|
| Operating Temperature | -20 ~ 60 °C (-4 ~ 140 °F) |
| Storage Temperature | -30 ~ 70 °C (-22 ~ 158 °F) |
| Humidity | 5 ~ 90% @ 40 °C, non-condensing |
| Vibration | 5-500 Hz, 0.026G²/Hz, 2.16Grms, X, Y, Z 1 hour per axis |
System |
|
| I/O | VGA x 1, DVI x 1, HDMI x 1, 12V DC Jack x 1, USB x 1, RS232 x 1 (RS232 and USB are reserved for the connection to enable touch usage only) |
| OSD | Keys: Power on/off, Menu/Enter, Left/Up, Right/Down, Exit/Auto, Source Menu Functions: Brightness, Contrast, Screen Setting, Color Temp, OSD Language, Reset, Auto Adjust |
| Power | 60 W power adapter, with AC 100 ~ 240 V input and DC +12 V @ 5 A output |
| EMC Compliance | CE/FCC/CCC /BSMI |
