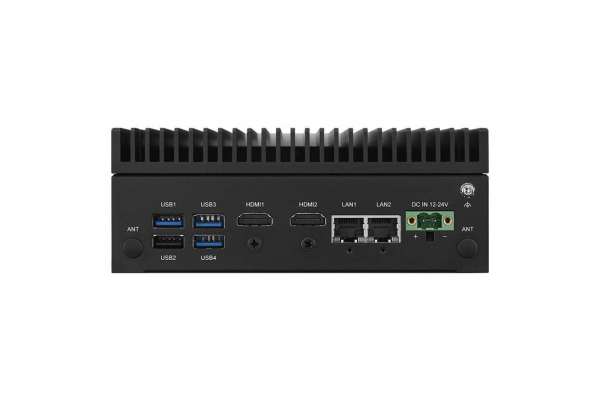

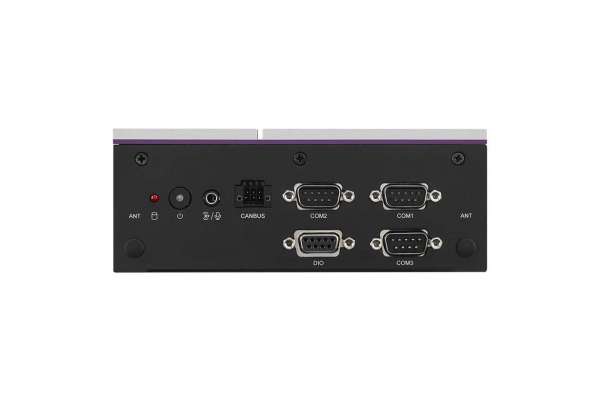

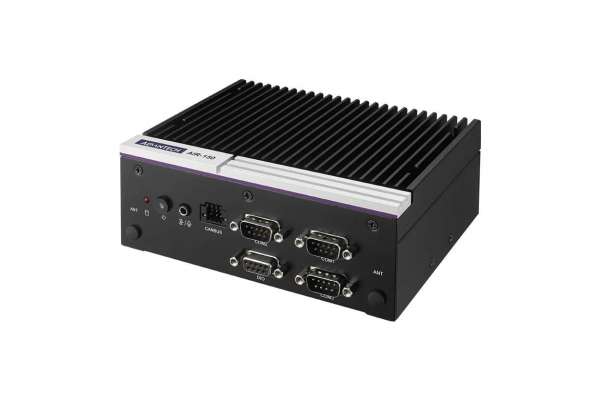

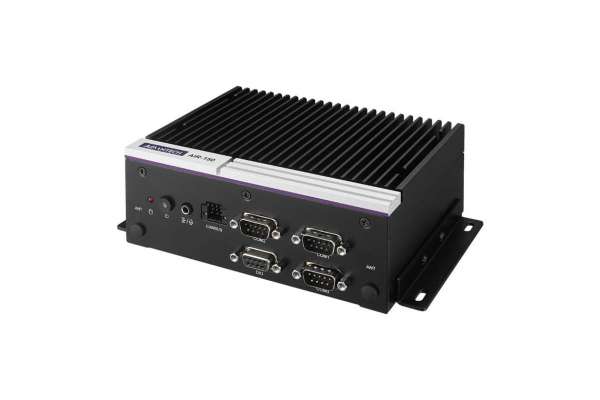

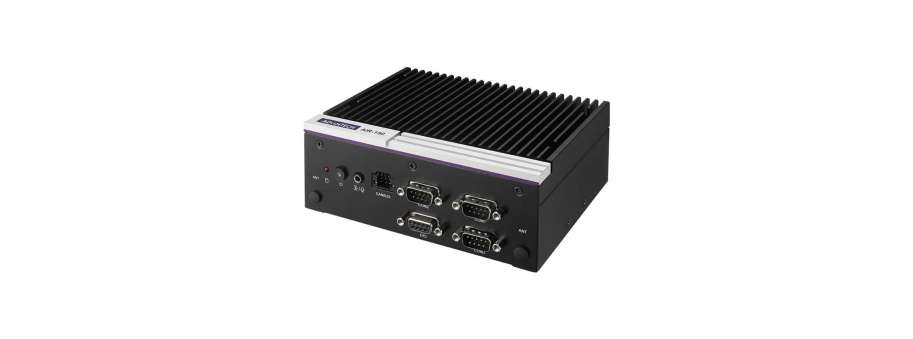

26 TOPS AI Inference System Intel 13th Gen. with Hailo-8 AI Advantech AIR-150
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| AIR-150-S44A1 | Intel i5-1345UE w/ Hailo-8 AI Inference system | 92 829,2 | |
| AIR-150-S24A1 | Intel i3-1315UE w/ Hailo-8 AI Inference system | 80 192,9 |
- 13th gen. Intel Core i3/i5 up to 14 Watt with 10 Cores
- Empowered by Hailo-8 M.2 AI module up to 26 TOPS
- Compact Fanless 156 x 112 x 60mm dimensions
- Dual 4K lockable HDMI 2.0b, 4096x2160 resolution
- Vertical I/O: 3x COM/1x DIO/2x CANBus/2x LAN/4x USB
- Rich AI toolkits for runtime integration and model deployment
- Flexible expansion with 3x M.2: M key 2280 (NVMe storage), E key 2230 (Wi-Fi), B key 3042 (Hailo AI)
- Suitable for Industrial usage: -20~60°C wide temperature and 12-24V wide voltage support
Additional information
| AIR-150-S44A1 | AIR-150-S24A1 | |
Processor System |
||
| CPU | Core i5-1345UE | Core i3-1315UE |
| System Chipset | Integrated in CPU | Integrated in CPU |
Memory |
||
| Technology | Dual Channel DDR5 5200 MHz 262 pin SO-DIMM | Dual Channel DDR5 5200 MHz 262 pin SO-DIMM |
| Capacity | Max. capacity 64GB | Max. capacity 64GB |
Graphics |
||
| Chipset | Intel® Iris® Xe Graphics eligible | Intel® UHD Graphics for 13th Gen Intel® Processors |
| Graphic Engine |
|
|
| HDMI | 2x HDMI 2.0b: 4096x2160@60Hz, Dual Display | 2x HDMI 2.0b: 4096x2160@60Hz, Dual Display |
Storage |
||
| SSD/M.2 | SATA Slim M-Key 2280 (SATA, PCIex4 Gen.4 NVMe) | SATA Slim M-Key 2280 (SATA, PCIex4 Gen.4 NVMe) |
I/O Interface |
||
| LAN1 | 10/100/1000 Mbps Intel i219 1GbE | 10/100/1000 Mbps Intel i219 1GbE |
| LAN2 | 100/1000/2500 Mbps Intel i226 2.5 GbE | 100/1000/2500 Mbps Intel i226 2.5 GbE |
| USB 2.0/USB 3.2 | 1/3 | 1/3 |
| Audio | 1 x Mic-in / Line-out, Realtek ALC888S HD Audio | 1 x Mic-in / Line-out, Realtek ALC888S HD Audio |
| COM |
|
|
| DIO | DB9 8 bit, 1 port | DB9 8 bit, 1 port |
| CANBus | 2x3 pin, 2 ports | 2x3 pin, 2 ports |
Expansion |
||
| M.2 |
|
|
| Trusted Platform Module | ||
| TPM 2.0 | SLB9670XQ2.0 (on board) | SLB9670XQ2.0 (on board) |
Power Requirement |
||
| Power Requirement | 12-24 VDC | 12-24 VDC |
| Power Type | ATX/AT mode (Default ATX) | ATX/AT mode (Default ATX) |
Power Consumption |
||
| Typical (OS idle mode) | 17.9W | 17.9W |
| Max. (Full loading) | 45.81W | 45.81W |
Physical Characteristics |
||
| Mounting | Wall Mounting/Din-Rail | Wall Mounting/Din-Rail |
| Dimensions (W x H x D) | 156 x 112 x 60 mm | 156 x 112 x 60 mm |
| Weight | 1.3 kg | 1.3 kg |
Environment |
||
| Operating Temperature | -20 ~ 60 °C, with 0.7m/s air flow | -20 ~ 60 °C, with 0.7m/s air flow |
| Storage Temperature | -40 ~ 85 °C (-40 ~ 185°F) | -40 ~ 85 °C (-40 ~ 185°F) |
| Relative Humidity | 95% @ 40 °C (non-condensing) | 95% @ 40 °C (non-condensing) |
| Vibration during Operation | 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis (with Wall Mount) | 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis (with Wall Mount) |
| Shock during Operation | 30 G, IEC-60068-2-27, half sine, 11 ms duration (with Wall Mount) | 30 G, IEC-60068-2-27, half sine, 11 ms duration (with Wall Mount) |
Software Support |
||
| Microsoft Windows | Windows 10/ Windows 11 IoT 64-bit | Windows 10/ Windows 11 IoT 64-bit |
| Linux | Ubuntu 22.04 | Ubuntu 22.04 |
Certification |
||
| EMC | CE/FCC Class B, Heavy Industry 61000-6-4, 61000-6-2, CCC, BSMI | CE/FCC Class B, Heavy Industry 61000-6-4, 61000-6-2, CCC, BSMI |
| Safety | UL, CB, CCC, BSMI | UL, CB, CCC, BSMI |
