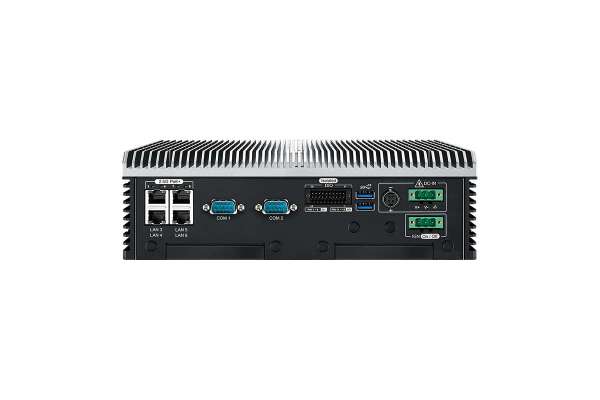

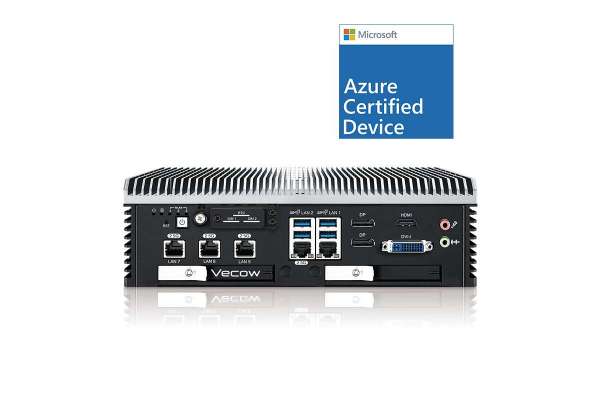

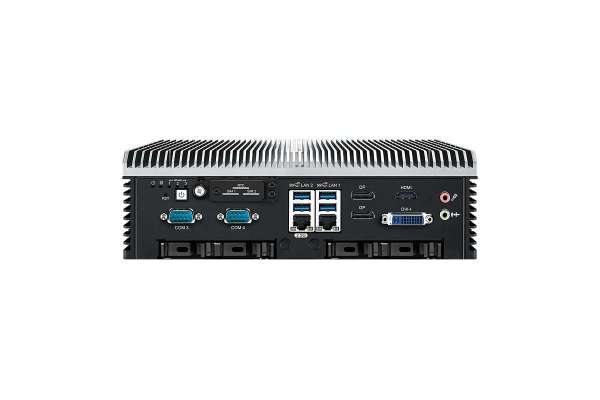

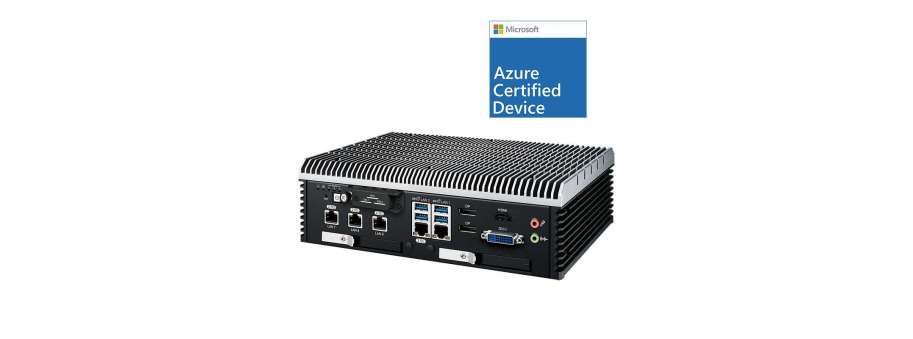

Workstation-grade Platform on Intel® Core™ i9/i7/i5/i3 Processor 14th gen Vecow ECX-3000

Manufacturer: Vecow
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
ECX-3000-PoES Промисловий компактний комп'ютер Vecow ECX-3000, Intel Core i7/ i5/ i3 Processor , 5 2.5G LAN w/4 PoE+, 1 GigE LAN, 4 COM, 2 SIM, 6 USB 3.2, 16 Isolated DIO, 4 M.2 Tray  114 660,0
ECX-3025R Промисловий компактний комп'ютер Vecow ECX-3000, Intel Core i7/ i5/ i3 Processor , 8 2.5G LAN w/4 PoE+, 1 GigE LAN, 2 COM, 2 SIM, 6 USB 3.2, 16 Isolated DIO, 2 SSD Tray  115 577,0

Workstation-grade Platform : Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) with Intel® R680E Chipset, fanless -40°C to 75°C operating temperature, multiple 10G LAN/2.5G LAN/GigE LAN/SIM socket configuration, max 6 USB 3.2 Gen 2 connections supporting up to 10Gbps data rate, outstanding system performance, 5G/WiFi 6/4G/3G/LTE/GPRS/UMTS mobile availability, 9V to 50V power input. Software ignition power control and rugged reliability in harsh environments, all-in-one integrated features, Vecow ECX-3000 Series Fanless Embedded System is your new generation choices for Machine Vision, In-vehicle Computing, Public Security, Factory Automation, Intelligent Transportation System (ITS), Robotic Control, AMR/AGV, Deep Learning, and any Edge AI applications.

  • Workstation-grade Platform : Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) running with Intel® R680E PCH supports max 65W TDP CPU
  • Intel® UHD Graphics 770/730 driven by Intel® Xe architecture with up to 32 graphics execution units (EUs) delivers immersive interactions with integrated graphics and accelerated AI performance
  • 8 Independent 2.5G LAN with 4 IEEE 802.3at PoE+
  • 4 Front-access M.2 SSD Tray, 6 USB 3.2 Gen 2
  • DC 9V to 50V Power Input, Software Ignition Control
  • Supports Intel® vPro, TCC, Time-Sensitive Networking (TSN), and TPM 2.0
  • Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
  • Certified Intel® ESDQ (Edge Software Device Qualification) for Autonomous Mobile Robots (AMR)

Additional information

System
Processor
  • 24-core Intel® Core™ i9/i7/i5/i3 Processor (14th gen, Raptor Lake-S Refresh)
  • 24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S)
  • 16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
Chipset Intel® R680E Chipset
BIOS AMI
SIO IT8786E
Memory 2 DDR4 3200MHz SO-DIMM, up to 64GB
OS Windows 11, Windows 10, Linux

I/O Interface
Serial Up to 4 COM RS-232/422/485
USB 6 USB 3.2 Gen 2
Isolated DIO 16 Isolated DIO : 8 DI, 8 DO (Optional)
LED Power, HDD, PoE, Wireless
SIM Card 2 External SIM Card Sockets
RTC Battery Front-access RTC Battery

Expansion
Mini PCIe 1 Mini PCIe Socket for PCIe/USB/SIM Card/Optional mSATA
M.2
  • 1 M.2 Key B Socket (3042/3052, SATA/USB 3, default/USB 2)
  • 1 M.2 Key E Socket (2230, PCIe x2/USB)
SUMIT A, B 2 SUMIT Slot (Optional)

Graphics
Graphics Processor Intel® UHD Graphics 770/730 driven by Intel® Xe Architecture
Interface

4 independent displays :
- 2 DisplayPort : Up to 7680 x 4320 @60Hz/5120 x 2880 @60Hz

- 1 DVI-I : Up to 1920 x 1080 @60Hz

- 1 HDMI : Up to 1920×1080 @ 60Hz

Storage
SATA 2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
M.2 1 M.2 Key M Socket (2280, PCIe x4)
Storage Device
  • Front-access 2.5" SSD/HDD Tray
  • 4 Front-access M.2 Key M SSD Tray (ECX-3000 PoES)

Audio
Audio Codec Realtek® ALC888S-VD, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out

Ethernet
LAN 1 Intel® I219LM GigE LAN
LAN 2 Intel® I226 2.5GigE LAN supports TSN

2.5G PoE
LAN 3 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226
LAN 4 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226
LAN 5 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226
LAN 6 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226

2.5G Ethernet (ECX-3025R/3025)
LAN 7 Intel® I225 2.5GigE LAN
LAN 8 Intel® I225 2.5GigE LAN
LAN 9 Intel® I225 2.5GigE LAN

10G Ethernet (ECX-3071XR/3071X)
LAN 7 Intel® X710-AT2 10GigE LAN
LAN 8 Intel® X710-AT2 10GigE LAN

Power
Power Input DC 9V to 50V
Power Interface
  • 3-pin Terminal Block : V+, V-, Frame Ground
  • 4-pin Mini-DIN
Ignition Control 16-mode Software Ignition Control
Remote Switch 3-pin Terminal Block

Others
TPM Infineon SLB9670 supports TPM 2.0, SPI Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Mgmt. Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.

Mechanical
Dimension 260.0mm x 175.0mm x 79.0mm (10.24" x 6.89" x 3.11")
Weight 3.8 kg (8.38 lb)
Mounting
  • Wallmount by mounting bracket
  • DIN Rail Mount (Optional)
  • 2U Rackmount (Optional)

Environment
Operating Temperature
  • 35W TDP CPU : 40°C to 75°C (-40°F to 167°F), Fanless
  • 65W TDP CPU : -40°C to 55°C (-40°F to 131°F), Fanless
  • ECX-3025R/ECX-3025 : -40°C to 70°C (-40°F to 158°F), Fanless
  • ECX-3071X/ECX-3071XR : -25°C to 50°C (-13°F to 122°F), with Internal Fan
  • ECX-3000-PoES : -40°C to 55°C (-40°F to 131°F), Fanless
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @75°C
Shock
  • IEC 60068-2-27
  • SSD : 50G @wallmount, Half-sine, 11ms
Vibration
  • IEC 60068-2-64
  • SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
