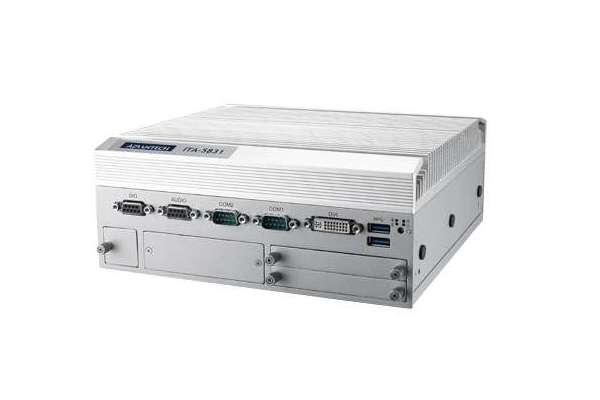

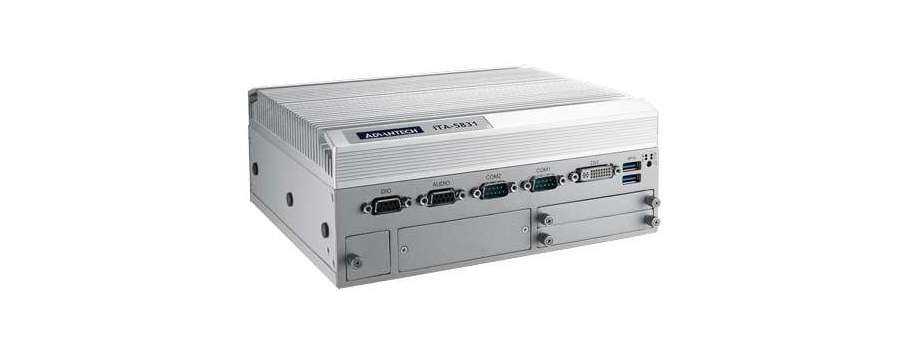

Intel® 6th Generation Core™ i Processor Fanless System; EN 50155 Compliant for Railway Applications Advantech ITA-5831
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ITA-5831-L7A1E | Встраиваемый компьютер для транспорта ITA-5831,i7-6822EQ+8G memory,DC-IN 24V,EN50155 | 252 855,0 | |
| ITA-5831-L5A1E | Встраиваемый компьютер для транспорта ITA-5831,i5-6422EQ+8G memory,DC-IN 24V,EN50155 | 223 450,0 | |
| ITA-5831-L0A1E | Встраиваемый компьютер для транспорта ITA-5831,G3902E+8G memory,DC-IN 24V,EN50155 | 181 407,0 | |
| ITA-5831-L7A2 | ITA-5831,i7-6822EQ+16G memory,DC-IN 24V,EN50155 | 270 514,0 | |
| ITA-5831-M7A1E | Встраиваемый компьютер для транспорта ITA-5831,i7-6822EQ+8G memory,DC-IN 48V,EN50155 | 252 855,0 | |
| ITA-5831-H7A1E | Встраиваемый компьютер для транспорта ITA-5831,i7-6822EQ+8G memory,DC-IN 72V,EN50155 | 252 855,0 | |
| ITA-5831-H5A1E | Встраиваемый компьютер для транспорта ITA-5831,i5-6422EQ+8G memory,DC-IN 72V,EN50155 | 223 436,0 | |
| ITA-5831-H0A1E | ITA-5831-H0A1E | 181 407,0 | |
| ITA-5831-S7A1E | Встраиваемый компьютер для транспорта ITA-5831,i7-6822EQ+8G memory,DC-IN 110V,EN50155 | 252 855,0 | |
| ITA-5831-S5A1E | Встраиваемый компьютер для транспорта ITA-5831,i5-6422EQ+8G memory,DC-IN 110V,EN50155 | 223 450,0 | |
| ITA-5831-S7A2 | ITA-5831,i7-6822EQ+16G memory,DC-IN 110V,EN50155 | 270 514,0 |
- Intel® Core™ i7-6822EQ platform with QM170
- Fanless computer for railway vehicle applications, fully compliant with EN 50155:2017
- Satisfies temp. standard: EN 50155 OT4 and IEC 61373 body mount class B
- Compliant with EN 50121-3-2/ EN 50121-4 EMC test standard

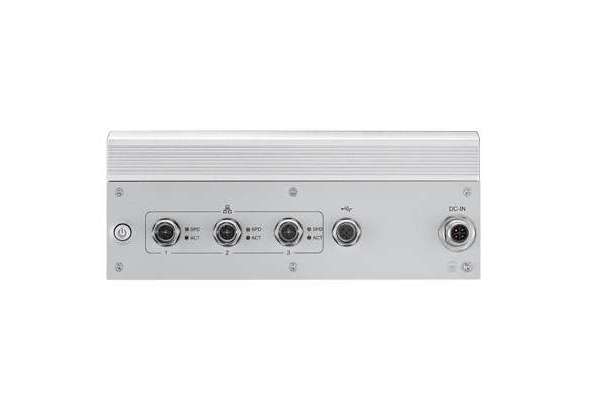

- Ruggedized connectors (M12) used for communication and power ports
- Supports easy-swap storage module and I/O module
- ITA58311905-T system supports maximum turbo frequency of 2.8GHz in single core; that of 2.5GHz in multi-core
- No RED Certification
System Chipset |
|||
| CPU | Intel® Core™ i7-6822EQ | i5-6442EQ | Celeron G3902E |
| Base frequency/Turbo Boost | 2.0/2.8 GHz | 1.9/2.7GHz | 1.6 GHz/ NA |
| L3 Cache | 8M | 6M | 2M |
| Cores/Threads | 4C/8T | 4C/4T | 2C/2T |
| Chipset | QM170 | QM170 | QM170 |
| BIOS | AMI SPI 128Mbyte Flash | AMI SPI 128Mbyte Flash | AMI SPI 128Mbyte Flash |
Additional information
Memory |
|
| Technology | 8GB/16GB onboard memory, DDR4 2133MHz |
| SODIMM slot | 1 |
| Max. Capacity | Up to 32GB |
Graphics |
|
| Chipset | Intel® HD Graphics 530, Celeron with Intel® HD Graphics 510 |
| VRAM | Shared with system memory to 512MB (Default setting) |
| Display | DVI-I: 1920 x 1200 @ 60Hz |

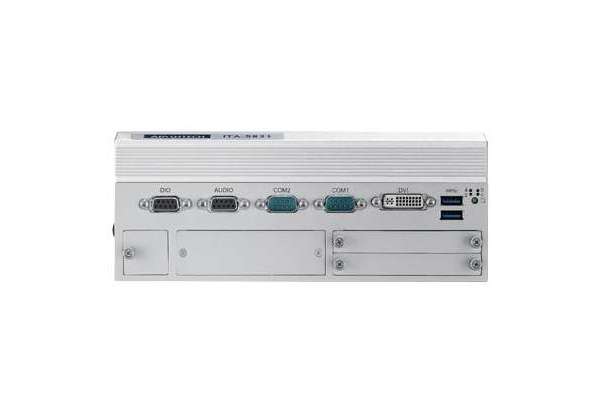

I/O |
|
| USB |
|
| Serial Port | 2 x DB9, RS-232/422/485 with 2KV Isolation, supports auto-flow control |
| DIO | 1 x DB9, 4-bit DI/ 4-bit DO with 2KV Isolation |
| Display | 1 x DVI-I (Optional to DVI-D+VGA via Y cable) |
| Audio | 1 x DB9, 1 x Speaker-out with 2 x 4W amplifier, 1 x Mic-in |
Ethernet |
|
| Controller | Intel i210-IT (Industrial) |
| Interface | 10/100/1000 Mbps |
| Connector | Up to 3 x M12 X-coded(F) |
Storage |
|
| HDD/SSD easy-swap module | 1 x ITA-EM-ST61-00A1E,supports 2 x 7mm/2.5" SSD (Default) Max to 3 x 2.5" SSD, 2 of 7mm SSD and 1 of 7mm/9.5mm SSD |
| mSATA | 1 x mSATA slot on board |
Others |
|
| Mini PCIe | 3 x Mini PCIe Socket (Full size) |
| SIM card | 2 x SIM slot |
LED & Button |
|
| LED | 1 x power, 1 x storage, 1 x alert, 1 x battery |
| Button |
|
Power |
|
| Input Voltage | DC 24V input compliant with EN50155 class S2/C1(Optional DC 48/72/110V input) |
| Connector | 1 x M12 S-coded(M) 4-pin |
Watchdog Timer |
|
| Output | System reset |
| Interval | Programmable 1~255 sec/min |
Environment |
|
| Temperature |
|
| Humidity |
|
Mechanical |
|
| Dimension (W x H x D) | 220 x 88 x 197.2 (8.66" x 3.46" x 7.76")/ 256 x 93.5 x 197.2mm (10.0" x 3.68" x 7.76") with mounting kits |
| Install | Wall-mount by mounting bracket |
| Ingress Protection | IP40 rating, IP50 with I/O caps |
Certification |
|
| EMC | CE/FCC Class A, CCC, BSMI |
| Safety | UL, CB, CCC, BSMI |
EN 50155 Compliance |
|
| Ambient Temperature | EN 50155 OT4 (-40 ~ 70 °C) |
| Shock and Vibration | IEC 61373 body mount class B |
| Interruptions of Voltage Supply | Class S2: 10 ms interruptions |
| Supply Change Over | Class C1: at 0,6 Un during 100 ms without interruptions |
| EMC | EN 50121-3-2/EN 50121-4 |
| Fire protection | EN 45545-2, HL3 |
