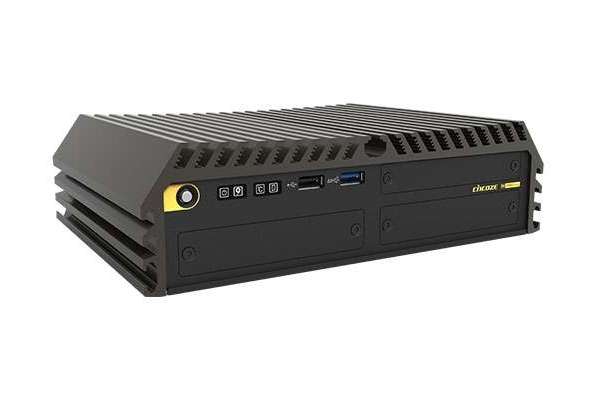

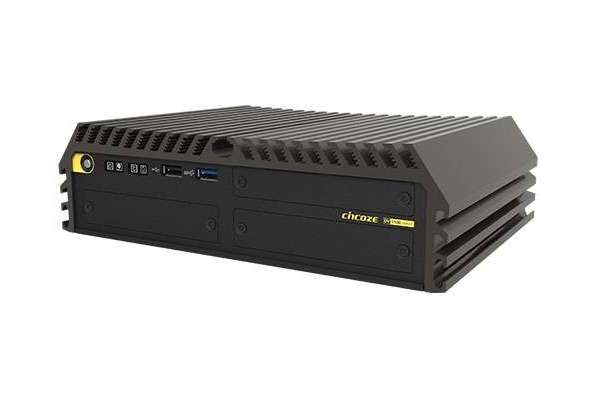

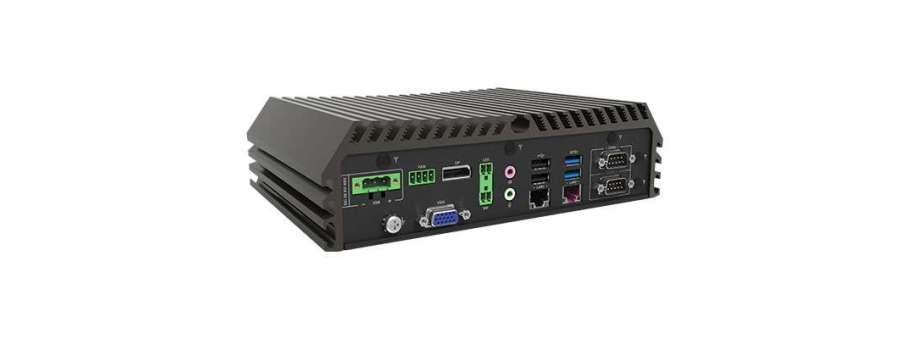

13/12th Gen. Intel® Core™ Series High Performance and Basic Function Rugged Embedded Computer Cincoze DV-1100

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

The DV-1100 is a compact, high-performance, embedded edge computer that supports 13th/12th generation Intel® processors. Its balance between high-performance computing needs and cost-effectiveness enables enterprises to quickly analyze and process edge data for better decision-making and improved production efficiency and accuracy. The DV-1100 is ideal for smart manufacturing, machine vision, railway computing, and space-constrained applications where stability and reliability are paramount.

  • Intel® 13/12th Gen. Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
  • 1x M.2 Key M Type 2280 Socket for PCIe Gen 4x4 NVMe Storage
  • 1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion
  • 1x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
  • 1x M.2 Key B Type 2242 Socket for Storage/Add-on Card Expansion
  • Optional CMI & CFM Modules for I/O Expansion & Power Ignition Sensing Function
  • Wide operating temperature -40°C to 70°C

Additional information

System
Processor

• 13th Generation Intel® Raptor Lake-S Series CPU:

- Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W

- Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W

- Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W

- Intel® Core™ i5-13400E 10 Cores Up to 4.6 GHz, TDP 65W

- Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 60W

- Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W

- Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W

- Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W

- Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W

• 12th Generation Intel® Alder Lake-S Series CPU:

- Intel® Core™ i9-12900E 16 Cores Up to 5.0 GHz, TDP 65W

- Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W

- Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W

- Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W

- Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W

- Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W

- Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W

- Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W

- Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W

- Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W

- Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W

- Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W
Chipset Intel H610E Chipset
Memory 1x DDR5 4800Mhz SO-DIMM Socket Supports Un-buered and non-ECC Type, Up to 32GB
BIOS AMI BIOS

Graphics
Graphics Engine
  • Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
  • Integrated Intel® UHD Graphics 730: Core™ i3
  • Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Maximum Display Output Supports Triple Independent Display
DP 1x DisplayPort Connector: 3840 x 2160 @60Hz
VGA 1x VGA Connector: 1920 x 1200 @60Hz
CMI Display 1x CMI Interface for Optional CMI-DP/CMI-HDMI Module Expansion

Audio
Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

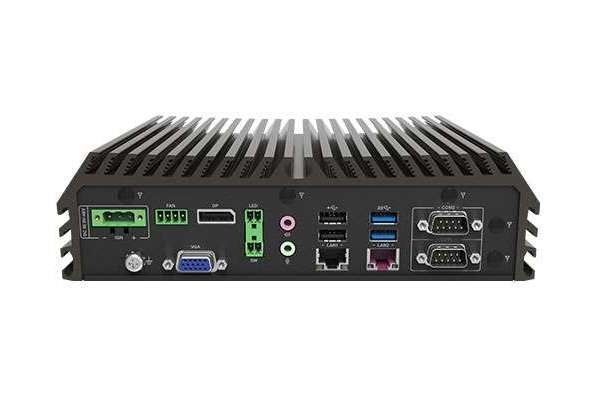

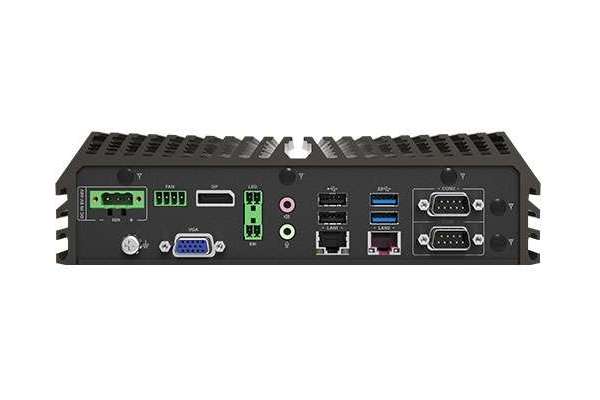

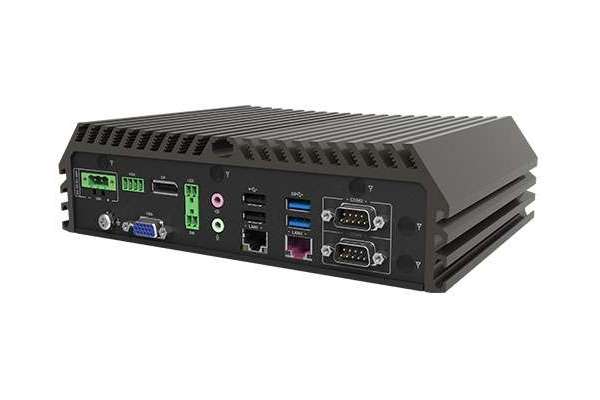

I/O
LAN
  • 1x 2.5GbE LAN, RJ45 - Intel® I225
  • 1x 1GbE LAN, RJ45 - Intel® I219
COM 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB
  • 1x 10Gbps USB3.2 Gen 2x1, Type A
  • 2x 5Gbps USB 3.2 Gen 1x1, Type A
  • 3x 480Mbps USB2.0, Type A

Storage
SSD/HDD 1x 2.5" SATA HDD/SSD Bay (SATA 3.0)
M.2 SSD
  • 1x M.2 SSD Shared by M.2 Key M Type 2280 Socket, Support PCIe Gen 4x4 NVMe SSD or SATA 3.0 SSD
  • 2x M.2 SSD Shared by M.2 Key B Socket, Support PCIe Gen 3x2 NVMe SSD or SATA 3.0 SSD

Expansion
M.2 Key E Socket 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Wireless/Intel CNVi Module Expansion
M.2 Key B Socket
  • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen2 x1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion
  • 1x M.2 Key B Type 2242 Socket (PCIe Gen 3x2 / USB2.0 / SATA ), Support Storage/Add-on Card Expansion
SIM Socket 1 x Front Accessible Dual Nano SIM Socket
CMI (Combined Multiple I/O) Interface
  • 1x CMI Interface for optional CMI-Display Module Expansion
  • 2x CMI Interface for optional CMI-COM/DIO Module Expansion
CFM (Control Function Module) Interface 1x CFM IGN Interface for optional CFM-IGN Module Expansion

Power
Power Button 1x ATX Power On/Off Button
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off 1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED 1x Remote Power LED, 2-pin Terminal Block

Physical
Dimension ( W x D x H ) 224.1 x 162 x 62 mm
Weight Information 2.52 KG
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / DIN-RAIL / VESA Mount
Physical Design
  • Fanless Design
  • Cableess Design
  • Jumper-less Design
  • Unibody Design

Operating System
Windows Windows®11, Windows®10
Linux Ubuntu 22.04

Environment
Operating Temperature

35W TDP Processor: -40°C to 70°C

65W TDP Processor: -40°C to 55°C (With External Fan Kit)

* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow

* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 70°C
Relative Humidity 95% RH @ 70°C (Non-condensing)
Shock MIL-STD-810H
Vibration MIL-STD-810H
EMC
  • CE, UKCA, FCC, ICES-003 Class A
  • EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only)
  • EN 50155 (EN 50121-3-2 Only)
  • E-mark (Pending)
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 50121-3-2 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN 61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.)
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
