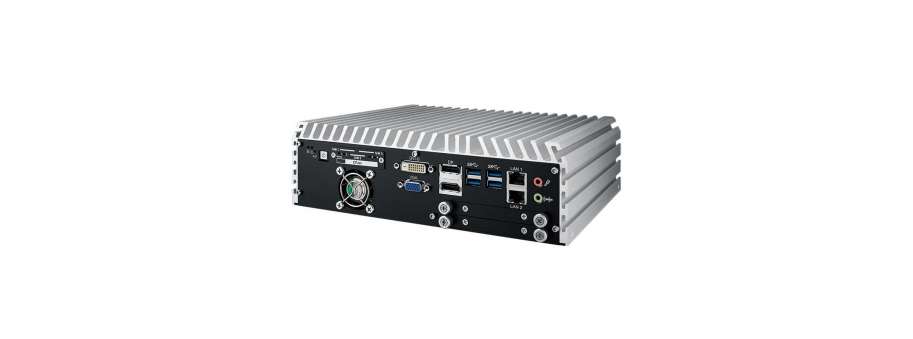

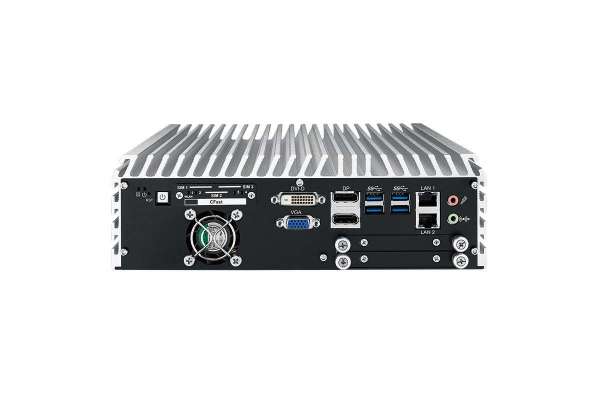

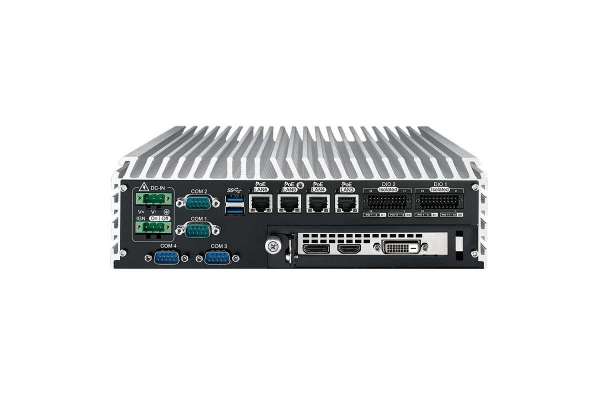

Intel® Xeon® /Core™ i7/i5 (Skylake-H) AI Computing System with NVIDIA® Tesla® /Quadro® /GeForce® /AMD Radeon™ Graphics Vecow ECS-9700/9600

Vecow ECS-9700/9600 PEG AI Computing System is your powerful solution for Machine Vision, Vehicle Computing, Deep Learning, Telemedicine, and any graphics performance driven Industry 4.0 embedded applications.

  • Workstation-grade Intel® Xeon® /Core™ i7/i5 Processor (Skylake-H) with Intel® CM236
  • 2 DDR4 2133MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
  • NVIDIA® Tesla® /Quadro® /GeForce® graphics card, powered by advanced NVIDIA Turing/Pascal architecture, delivers leading AI computing productivity
  • Multiple DVI, VGA and DisplayPort display interfaces support max 7 independent displays, up to 8K Resolution
  • 6 Independent GigE LAN with 4 IEEE 802.3at PoE+
  • 4 SIM Card Socket for WiFi/4G/3G/LTE/GPRS/UMTS
  • 2 Front-access 2.5" SSD Tray, 6 USB 3.0, 4 COM
  • 32 Isolated DIO, 4 Mini PCIe/mSATA
  • 10V to 36V DC-in with 80V Surge Protection
  • Configurable Ignition Power Control
  • Optional supports full function SUMIT A, B

Additional information

System

Processor Quad Core Intel® Xeon® /Core™ i7/i5 Processor (Skylake-H)
Chipset Intel® CM236
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2133MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
OS Windows 10, Windows 8.1, Windows 7, Linux

I/O Interface

Serial 4 COM RS-232/422/485 (ESD 8kV)
USB
  • 6 USB 3.0 (External)
  • 1 USB 2.0 (Internal)
Isolated DIO

ECS-9700 PEG : 32 Isolated DIO : 16 DI, 16 DO

ECS-9600 PEG : 16 Isolated DIO : 8 DI, 8 DO

LED Power, HDD, PoE, Wireless
SIM Card 4 SIM Card Socket (3 External, 1 Internal)

Expansion

Mini PCIe

4 Mini PCIe Socket :

  • 3 Full-size for PCIe/USB/External SIM Card/mSATA
  • 1 Full-size for PCIe/Internal SIM Card/mSATA
SUMIT A, B 2 SUMIT Slot (Optional)

Graphics

Graphics Processor
  • Intel® HD Graphics P530/530
  • Independent Graphics : By request
Interface

Up to 7 Display interfaces :

  • DVI-D : Up to 1920 x1200 @ 60Hz
  • 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
  • 1 VGA : Up to 1920 x 1200 @ 60Hz
  • By requested Graphics Card

Storage

SATA

4 SATA III support S/W RAID 0, 1, 5, 10 :

- 3 SATA III (6Gbps)

- 1 SATA III co-lay with Mini PCIe (6Gbps)

mSATA

4 mSATA connections :

- 3 SATA III (Mini PCIe Type, 6Gbps)

- 1 SATA III co-lay with SATA (Mini PCIe Type, 6Gbps)

Storage Device

- 1 CFast Socket, Push-in/Push-out Ejector

- 2 Front-access 2.5" SSD/HDD Tray

Audio

Audio Codec Realtek ALC888S-VD, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I219LM GigE LAN supports iAMT 11.0
LAN 2 Intel® I210 GigE LAN

PoE (ECS-9700 PEG)

LAN 3 to LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210

Power

Power Input 10V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power

Others

TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Mgmt. Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.

Mechanical

Dimensions 260.0mm x 215.0mm x 79.0mm (10.24" x 8.46" x 3.11")
Weight 3.5 kg (7.72 lb)
Mounting
  • Wallmount by mounting bracket
  • DIN Rail Mount (Optional)
  • 2U Rackmount (Optional)

Environment

Operating Temp. -20°C to 45°C (-4°F to 113°F)
Storage Temp. -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 45°C
Shock IEC 61373
Vibration IEC 61373
EMC E13, CE, FCC, EN50155, EN50121-3-2
