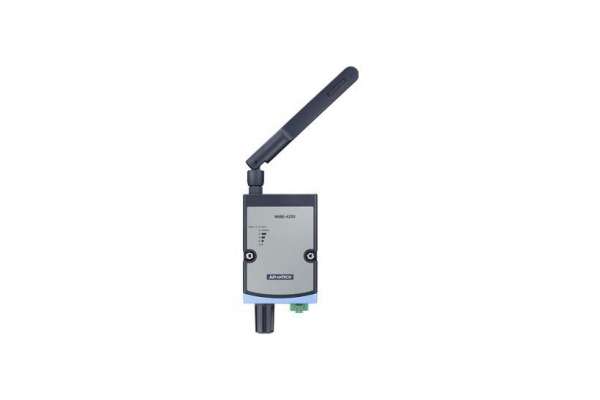

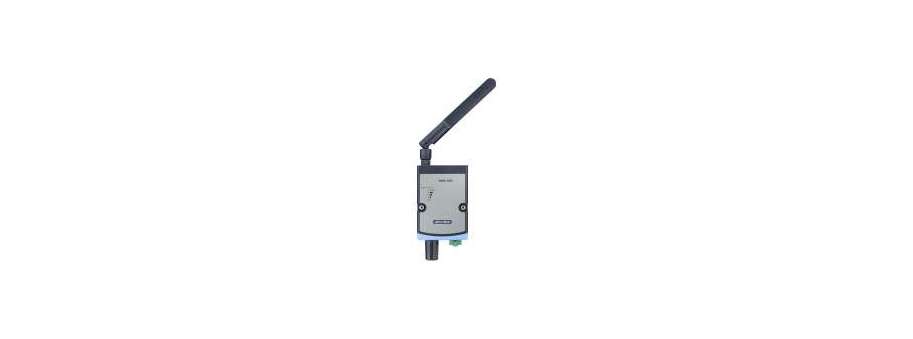

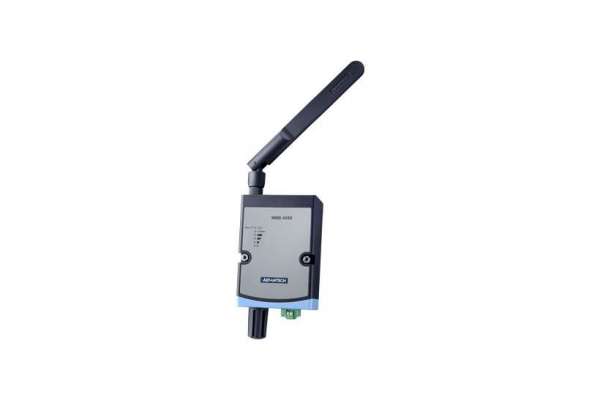

2.4/5GHz Wi-Fi Temperature and Humidity Sensing Module Advantech WISE-4250-S232
The WISE-4250 series is a wireless IoT solution designed for industrial applications. This Ethernet-based device is compatible with various I/O and sensors and integrates data acquisition, processing, and publishing functions. It supports real-time P2P communication between devices, enabling edge intelligence without a central controller, making it ideal for applications requiring rapid response and distributed control. Furthermore, a watchdog timer and smart roaming ensure stable device operation in any environment. The WISE4250 also prioritizes data security, with a data logger, data recovery function, WPA3/TLS1.3 encryption, and IP whitelisting to prevent data loss and unauthorized access. Best of all, it supports MQTT, Modbus, and RESTful APIs, enabling you to easily publish data to various cloud platforms for data-driven decision-making.
- Supports IEEE 802.11 ac (2.4/5GHz) for stable and high-speed wireless connectivity
- Supports interchangeable I/O and Sensor module
- Supports the smart roaming function, maintaining uninterrupted connectivity
- Supports MQTT, Modbus/TCP, SNTP, TCP/IP, HTTPS, RESTful, UDP, and DHCP protocols
- Enhanced security with X.509, WPA3/TLS 1.3 encryption for secure data transmission
- AES-128 encrypted wireless P2P enables automatic triggering of multiple WISE modules on abnormal input
- Easy configuration via web UI with mobile devices and PC
- Built-in 10,000+ data logger with SNTP/RTC sync and watchdog timer autoreconnect for reliable monitoring
- Supports Dropbox, WebAccess, iSensing MQTT, IFTTT, Azure, AWS, Azure MQTT, Line messaging API, and other cloud services
Additional information
General |
|
| WLAN Standard | IEEE 802.11a/b/g/n/ac |
| Modulation |
|
| Transmit Power |
2.4 GHz 802.11b: 16.0 dBm ±2dBm 802.11g: 14.0 dBm ±2dBm 802.11n: 12.0 dBm ±2dBm 5 GHz 802.11a: 13.0 dBm ±2dBm 802.11n: 10.0 dBm ±2dBm 802.11ac: 8.0 dBm ±2dBm |
| Wireless Security | X.509 (TLS1.2/1.3), WPA2/WPA3 Personal and Enterprise |
| Antenna | Connector: RP-SMA Gain (Peak): 2.4G 3.64 dBi / 5G 5.65 dBi |
| Connectors | Plug-in-and-play I/O and sensor modules |
| Watchdog Timer | System (1.6 second) and Communication (programmable) |
| Certification | CE, FCC, IC, TELEC, NBTC |
| Dimensions (W x H x D) | 70 x 102 x 38 mm |
| Enclosure | PC |

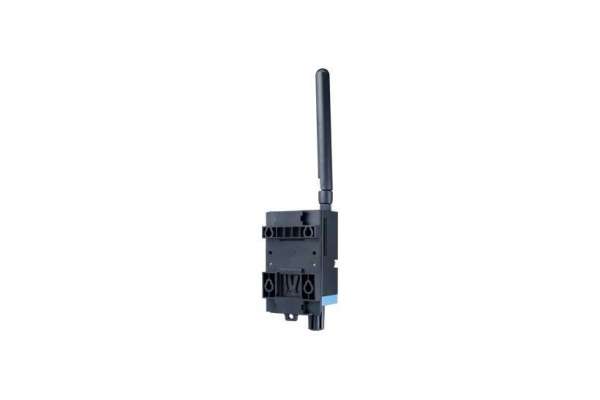

| Mounting | DIN 35 rail, wall, stack, and pole |
| Power Input | 10 ~ 50 VDC |
| Power Consumption | 1.6W @ 24 VDC |
| RTC Accuracy | ±2 second/day |
| Cloud | Dropbox, WebAccess, iSensing MQTT, IFTTT, Azure, AWS, Azure MQTT, Line messaging API |
| Reliability Test | IEC60068-2-64 Vibration broadband random test Package Drop Test |
| Support wireless P2P (Peer to Peer) with AES-128 encryption and UDP protocol | |
| Support MQTT data recovery function | |
| Support smart roaming function and 802.11k/v/r | |
| Supports User Defined Modbus Address | |
| Power Reversal Protection | |
| Supports Data Log | 10000+ samples with SNTP/RTC sync time stamp |
| Supported Protocols | Modbus/TCP, TCP/IP, SNMP V2, SNTP, UDP, DHCP, HTTP(S), and MQTT |
| Supports RESTful API Client/Server in JSON format | |
| Supports Web Server in HTML5 with JavaScript & CSS3 | |
| Supports System Configuration Backup and User Access Control | |
Environment |
|
| Operating Temperature | -25 ~ 70°C (-13~158°F) |
| Storage Temperature | -40 ~ 85°C (-40~185°F) |
| Operating Humidity | 10 ~ 85% RH (non-condensing) |
| Storage Humidity | 0 ~ 60% RH (non-condensing) |
