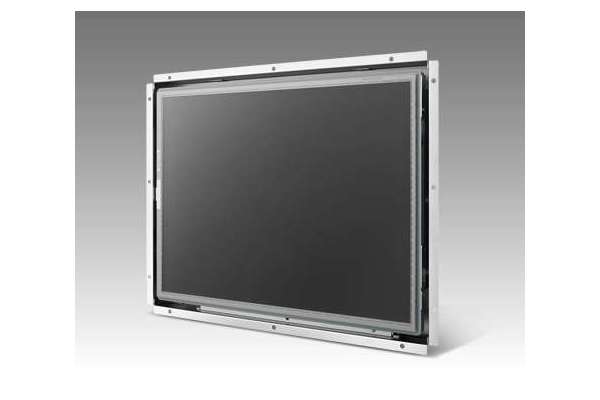

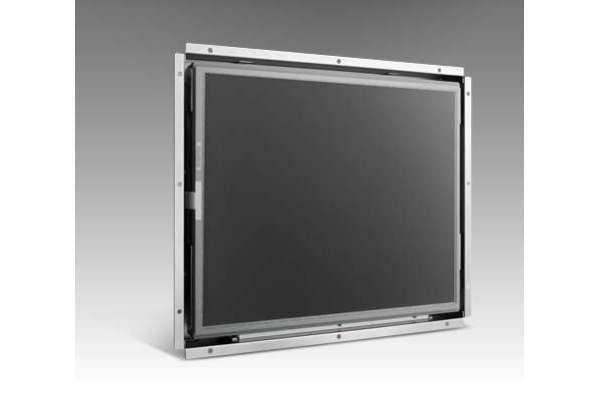

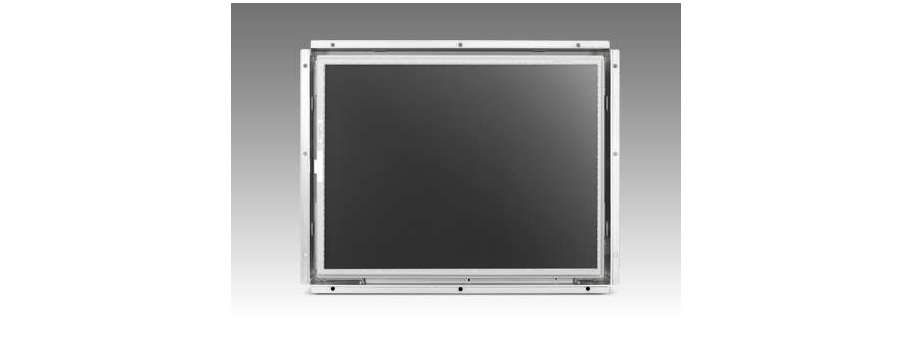

17" SXGA Industrial Open Frame Monitor Advanteh IDS-3117
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| IDS-3117R-35SXA1E | Промисловий РК дисплей Advantech IDS-3117R-35SXA1E без корпуса 17" SXGA OpenFrame Monitor, 350nits,with Res. TS, -20~60°C | 46 005,9 | Доступно |
The Advantech IDS-3117 Embedded Open Frame Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series supports rear and VESA mounting. The integrated brackets bring the benefits of easy installation and provide flexibility for different applications.
- 17" SXGA LCD panel with LED backlight for 20% power saving and environmental protection
- -20° C ~ +60° C wide range operating temperature
- 5-wire resistive touch screen solution
- Combo touch interface of RS-232 and USB
- Dual signal interface with VGA & DVI
- Integrated bracket for easy installation

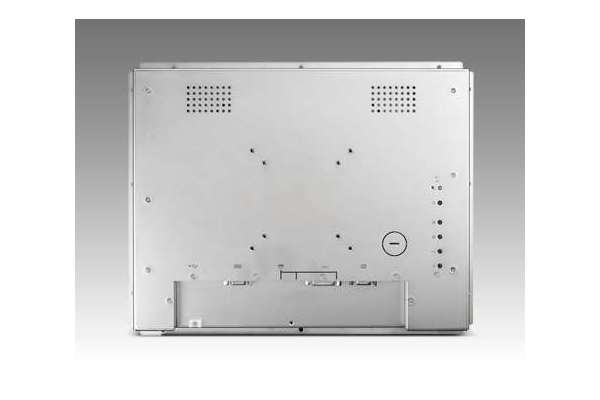

- Versatile mounting methods for rear mounting and VESA mounting
- Sunlight readable solution (optional)
- Ultra high brightness solution of 1200 cd/m2 for outdoor application (optional)
Additional information
Display |
||
| Model | IDS-3117 | IDS-3117E |
| Size | 17" LED panel | 17" LED panel |
| Resolution | 1280 x 1024 (SXGA) | 1280 x 1024 (SXGA) |
| Viewing Angle | 85°/85° (H), 80°/80° (V) | 85°/85° (H), 80°/80° (V) |
| Brightness | 350 (cd/m2 ) | 250 (cd/m2) |
| Color Support | 16.7M colors | 16.7M colors |
| Contrast Ratio | 800:1 | 1000:1 |
| Response Time | 30 [msec] | 5 [msec] |
| Backlight Life (hrs) | 50,000 hrs | 40,000 hrs |
Touchscreen |
||
| T/S Type | 5-Wire Resistive Touch Screen | 5-Wire Resistive Touch Screen |
| Surface Hardness | 3H | 3H |
| Durability | 10 million touches | 10 million touches |
| Transparency | 80% ± 3% | 80% ± 3% |
Environment |
||
| Operating Temperature | -20 ~ 60° C (-4 ~ 140° F) | 0~ 45° C (32 ~ 113° F) |
| Storage Temperature | -30 ~ 70° C (-22 ~ 158° F) | -20 ~ 60° C ( -4 ~ 140° F) |
| Humidity | 90% @ 40° C, non-condensing | 90% @ 40° C, non-condensing |
| Vibration | 5-500Hz, 0.026G²/Hz, 2.16Grms, X, Y, Z | 5-500Hz, 0.026G²/Hz, 2.16Grms, X, Y, Z |
System |
||

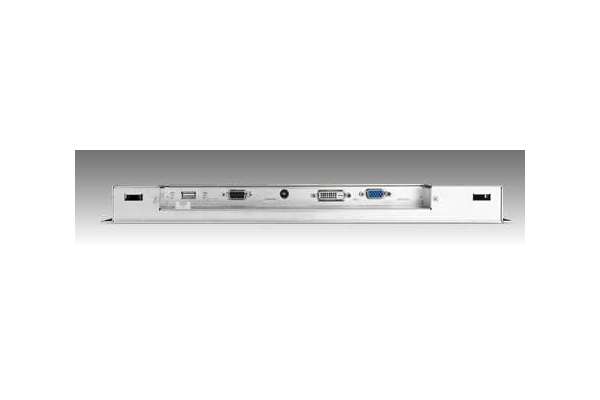

| I/O | VGA x 1; DVI-D x 1; 12 VDC Jack x 1; USB x1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only) | VGA x 1; 12 VDC Jack x 1; USB x1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only) |
| OSD | Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off Menu Functions: Brightness, Contrast, Screen Settings, Color Temp, Language OSD Settings, VGA/ DVI , Recall , Auto Adjust | Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off Menu Functions: Brightness, Contra |
| Power | 60 W power adapter, with AC 100 ~ 240 V input and DC +12 V @ 5 A output | 60 W power adapter, with AC 100 ~ 240 V input and DC +12 V @ 5 A output |
| EMC Compliance | CE/FCC/CCC | CE/FCC/CCC |
