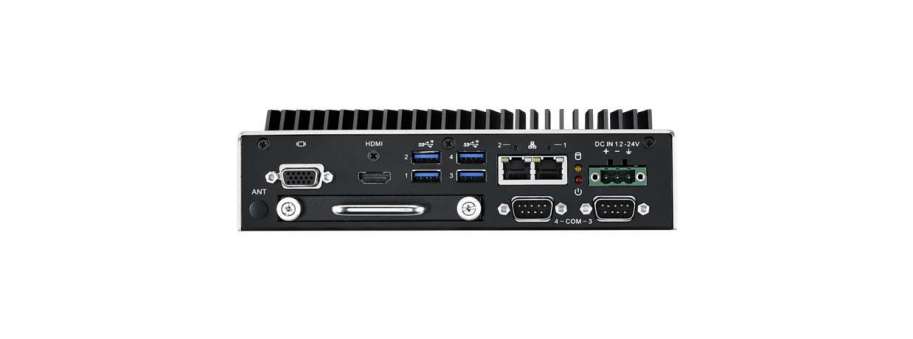

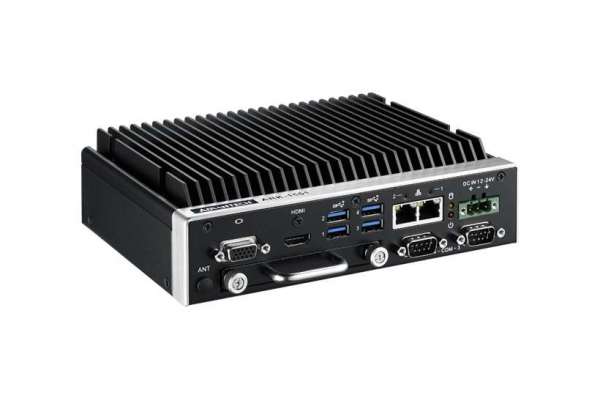

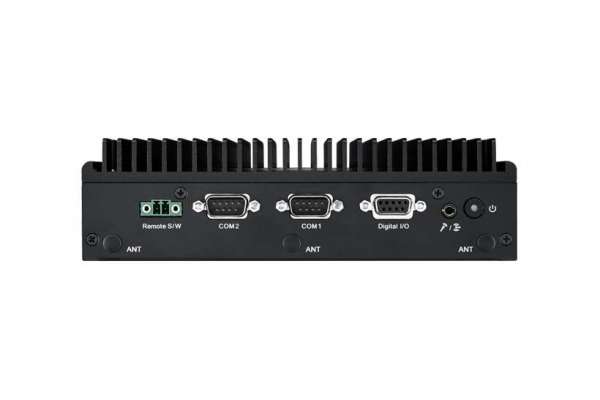

Тонкий безвентиляторний вбудовуваний ПК на Intel® 8th Generation Core™ i5/Celeron Advantech ARK-1551
Вартість та наявність
| Код товару | Опис товару | Ціна з ПДВ | Наявність |
|---|---|---|---|
| ARK-1551-S6A1 | Компактний промисловий комп'ютер Advantech ARK-1551, Intel i5-8365UE VGA+HDMI+TPM 12-24V A1 | 81 176,1 | |
| ARK-1551-U0A1 | Компактний промисловий комп'ютер Advantech ARK-1551, Intel Celeron 4305UE VGA+HDMI 12-24V A1 | 44 516,1 | |
| ARK-1551-U2A1 | Компактний промисловий комп'ютер Advantech ARK-1551 Intel i3-8145UE VGA+HDMI 12-24V A1 | 63 184,7 | |
| ARK-1551-S6A2 | Компактний промисловий комп'ютер Advantech ARK-1551 Intel i5-8365UE 12-24V A2 no audio | 76 302,0 |
Тонкий безвентиляторний ПК на Intel® 8th Generation Core™ i5/Celeron
- Процесор Intel® Core™ i5/Celeron 8 поколения
- Подвійний DDR4 2400MHz SO-DIMM збільшується до 32G
- 1 змінний 2,5" відсік для жорстких дисків SATA та 1 слот mSATA, підтримує програмне забезпечення Intel RAID 0/1.
- 4 x USB 3.1 Gen 2, 2 x Intel GbE LAN, 4 x RS-232/422/485, 8 біт GPIO
- Два незалежних входи дисплея 4K2K HDMI та VGA
- 1 повнорозмірний mPCIe з тримачем SIM-карти та 1 ключом M.2 2230 E
- Підтримка сховища Advantech SQF PCIex2 NVMe
- 12V - 24V @ -10%/+20% широкий діапазон вхідної напруги
- Вбудований модуль Advantech DeviceOn для простого керування
Додаткова інформація
|
Part Number |
ARK-1551-S6A1 | ARK-1551-U0A1 |
Processor |
||
|
CPU |
Intel® Core™ i5-8365UE |
Celeron 4305UE |
|
Frequency |
1.6 GHz, turbo burst up to 4.1 GHz |
2.0 GHz |
|
Core Number |
4 | 2 |
|
BIOS |
AMI EFI 256 Mbit |
AMI EFI 256 Mbit |
Memory |
||
|
Technology |
DDR4 2400MHz SO-DIMM |
DDR4 2400MHz SO-DIMM |
|
Max. Capacity |
32 GB |
32 GB |
|
Socket |
2 x 260 pin SO-DIMM |
2 x 260 pin SO-DIMM |
Graphics |
||
|
Chipset |
Intel UHD Graphics 620 |
Intel HD Graphics 610 |
|
Graphic Engine |
Gen9 Low Power; 24 (UHD 620) /12(UHD 610) Execution Units. Media Codec Supported: H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC. 3D HW Acceleration: OpenGL 4.5, DirectX* 11.3/12, OpenCL* 2.1 |
Gen9 Low Power; 24 (UHD 620) /12(UHD 610) Execution Units. Media Codec Supported: H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC. 3D HW Acceleration: OpenGL 4.5, DirectX* 11.3/12, OpenCL* 2.1 |
|
HDMI |
1 x HDMI 1.4b, 4096 x 2160@30Hz |
1 x HDMI 1.4b, 4096 x 2160@30Hz |
|
Dual Display |
Yes, VGA + HDMI |
Yes, VGA + HDMI |
Ethernet |
||
|
LAN1 |
10/100/1000 Mbps Intel i210 GbE, support Wake On Lan |
10/100/1000 Mbps Intel i210 GbE, support Wake On Lan |
|
LAN2 |
10/100/1000 Mbps Intel i219GbE, support Wake On LAN |
10/100/1000 Mbps Intel i219GbE, support Wake On LAN |
Audio |
||
|
Interface |
Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
I/O |
||
|
Serial port |
4 x RS-232/422/485 support from 50 bps to 921.6 kbps, with auto flow control. COM3 with 5V/12V power, by jumper setting |
4 x RS-232/422/485 support from 50 bps to 921.6 kbps, with auto flow control. COM3 with 5V/12V power, by jumper setting |
|
USB |
4 x USB 3.1 Gen2, Type A connector |
4 x USB 3.1 Gen2, Type A connector |
|
GPIO |
8-bit Programmable DIO |
8-bit Programmable DIO |
Expansion |
||
|
Mini PCIe |
1 x full-size mPCIe with 1x nano SIM holder (PCIe x2, USB 2.0x1, UIM, SATA x1) |
1 x full-size mPCIe with 1x nano SIM holder (PCIe x2, USB 2.0x1, UIM, SATA x1) |
|
M.2 |
1 x M.2 2230 E key for WIFI module |
1 x M.2 2230 E key for WIFI module |
Storage |
||
|
2.5" HDD/SSD |
1 x Swappable 2.5" SATAIII drive bay (compatible with 7mm height) |
1 x Swappable 2.5" SATAIII drive bay (compatible with 7mm height) |
|
mSATA |
1 x Full-size mSATA (*share with mPCIe slot) |
1 x Full-size mSATA (*share with mPCIe slot) |
|
PCIe |
Support 2x Advantech SQF PCIex2 NVMe storage (1 x M.2 2230 E Key + 1 x mPCIe) |
Support 2x Advantech SQF PCIex2 NVMe storage (1 x M.2 2230 E Key + 1 x mPCIe) |
Others |
||
|
Watchdog timer |
255 levels timer interval, setup by software |
255 levels timer interval, setup by software |
|
TPM |
Infineon SLB9665XQ 2.0 |
Infineon SLB9665XQ 2.0 |
|
Case Open |
Support |
Support |
Software Support |
||
|
Microsoft Windows |
Windows 10 Enterprice |
Windows 10 Enterprice |
|
Linux |
Support by project |
Support by project |
Power |
||
|
Power Type |
AT/ATX |
AT/ATX |
|
Input Voltage |
12 ~ 24 VDC @ -10%/+20% |
12 ~ 24 VDC @ -10%/+20% |
|
Power Adaptor |
AC to DC, 90W for 0 ~ 40 °C/ AC to DC, 120W for condition -20 ~ 55 °C (Optional) |
AC to DC, 90W (Optional) |
|
Power Consumption |
Typical 13.87 W, Max 47.12W |
Typical 8.93W, Max 24.7W |
Mechanical |
||
|
Construction |
Aluminum housing |
Aluminum housing |
|
Mounting |
Wall Mounting (Default); VESA & DIN-Rail Mounting (Optional) |
Wall Mounting (Default); VESA & DIN-Rail Mounting (Optional) |
|
Dimensions |
195 x 55 x 140 mm (7.68" x 2.16" x 5.52") |
195 x 55 x 140 mm (7.68" x 2.16" x 5.52") |
|
Weight |
1.2 kg (2.65lb) |
1.2 kg (2.65lb) |
Environment |
||
Operating Temperature |
With extended temp. peripherals: -20 ~ 55 °C (-4 ~ 131 °F) with 0.7 m/s air flow. With 2.5 inch hard disk: 0 ~ 40 °C (32 ~ 104 °F) with 0.7 m/s air flow |
With extended temp. peripherals: -20 ~ 55 °C (-4 ~ 131 °F) with 0.7 m/s air flow. With 2.5 inch hard disk: 0 ~ 40 °C (32 ~ 104 °F) with 0.7 m/s air flow |
|
Storage Temperature |
-40 ~ 85° C (-40 ~ 185° F) |
-40 ~ 85° C (-40 ~ 185° F) |
|
Relative Humidity |
95% @ 40° C (non-condensing) |
95% @ 40° C (non-condensing) |
|
Vibration during Operation |
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
Shock During Operation |
With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
Certification |
||
|
EMC |
CE/FCC Class B, CCC, BSMI |
CE/FCC Class B, CCC, BSMI |
|
Safety Certifications |
UL, CB, CCC, BSMI |
UL, CB, CCC, BSMI |
