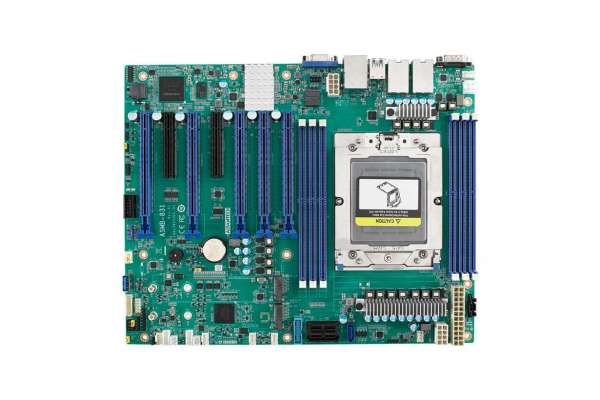

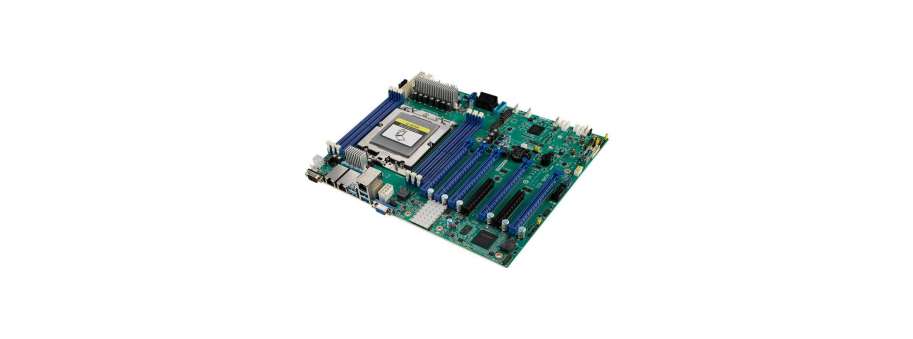

Серверна плата Advantech ASMB-831

Серверна материнська плата LGA 6096 AMD® EPYC™ 9004 ATX з 6 x DDR5, 5 x PCIe x16 + 2 x PCIe x8, 9 x SATA3, 7 x USB 3.2 (Gen1), Dual 10GbE та IPMI Advantech ASMB-831

Вартість та наявність

Код товару	Опис товару	Ціна з ПДВ	Наявність
ASMB-831T2-00A1	SP5 AMD ATX SMB w/9 SATA/5 PCIe x16/2 10GbE/IPMI	75 423,9

• Серверна плата LGA 6096 (Socket SP5) ATX з процесором AMD EPYC 9004
• DDR5 4800 МГц RDIMM
• П'ять PCIe x16 (Gen5) та 2 PCIe x8 (Gen5) для 4 двоярусних карт
• Intel® X710-AT2 з 2 портами 10GbE
• 9 портів SATA3 та 7 портів USB 3.2 (Gen1)
• 2 M.2 2280/22110 (сумісні з SATA/PCIe)
• Діапазон робочих температур 0 ~ 60 °C

Додаткова інформація

Form Factor	ATX form factor
Processor System
Socket	AMD LGA 6096 (Socket SP5)
CPU type	AMD EPYC™ 9004 processors (CPU cooler should be purchased separately)
Memory
Total slots	6x (1 DIMM per channel)
Capacity	Maximum 384GB ECC RDIMM
Memory type	DDR5 ECC-REG 3600/4000/4400/4800 MHz RDIMM
Memory size	16 GB, 32 GB, 64 GB (RDIMM)
Expansion Slots
Total PCI/PCI-X/PCIe slots	7
Slot location 1	PCIe x16 slot (Gen5 x16 link)
Slot location 2	PCIe x8 slot (Gen5 x8 link)
Slot location 3	PCIe x16 slot (Gen5 x16 link)
Slot location 4	PCIe x8 slot (Gen5 x8 link)
Slot location 5	PCIe x16 slot (Gen5 x16 link)
Slot location 6	PCIe x16 slot (Gen5 x16 link)
Slot location 7	PCIe x16 slot (Gen5 x16 link)
Graphics
VGA	ASPEED AST2600
Storage
SATA controller	AMD EPYC™ CPU integrated: Eight (via Mini-SAS HD SFF-8643) + one SATA3
SAS controller	-
Networking
GbE/10GbE LAN	Intel® X710-AT2 (dual 10GbE ports)
Onboard I/O Connector
PSU connector	24-pin SSI power connector + 2 x 8-pin SSI 12V power connector + 1 x 4-pin SSI 12V power connector
USB connector	2 x USB 3.2 Gen1 ports (one onboard header) + 1 x Type-A USB 3.2 Gen1 port
Fan header	6 x 4-pin (5 for system + 1 for CPU)
M.2	1 x M.2 2280/22110 (PCIe Gen4 / SATA) + 1 x M.2 2280/22110 (PCIe Gen4 only)
SMBus	1
Chassis intruder	1
Front LAN LED	1
Audio Header	-
PS/2 KB/Mouse header	-
Serial port header	-
Rear I/O Connector
External serial port	1
External USB port	4 (USB 3.2 Gen1)
VGA port	1
RJ-45	3 (1 port dedicated LAN and 1 port shared LAN for IPMI function)
PS/2 Keyboard/Mouse	-
Infiniband	-
Management Solution
Software	-
Out of band remote management	Yes
Monitoring
CPU temperature	Yes
System Monitoring	Yes
Watchdog Timer
Output	System reset
Interval	Programmable 1 ~ 255 sec/min
Power Requirement
Power On	3.3V / 5V / 12V / 12V_8P_1 / 12V_4P_1
(210W CPU@2.6GHz DDR5-2666 64G*6)	2.976A / 3.264A / 0.616A / 15.72A /6.876A
Environment
Temperature	Operating: 0 ~ 60 °C/32 ~ 140 °F, depends on CPU speed and cooling solution Non-operating:-40 ~ 85 °C/-40 ~ 185 °F
Humidity	Operating: 10% ~ 95% Non-operating: 10% ~ 95% (Non condensing)
Physical Characteristics
Dimension (L x H)	304 x 244 mm (12 x 9.6 in)
