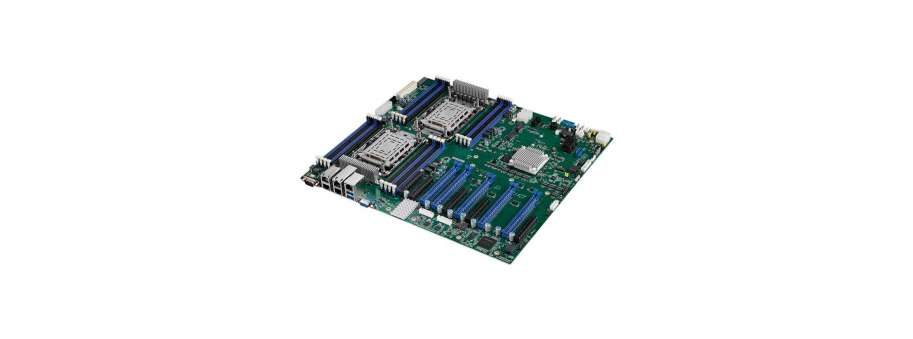

Серверна плата Intel Xeon 4-го покоління LGA4677 з 16x DDR5, 5x PCIe x16, 9x SATA3, 4x USB 3.2 (Gen 1), Dual 10GbE та IPMI Advantech ASMB-977
Вартість та наявність
| Код товару | Опис товару | Ціна з ПДВ | Наявність |
|---|---|---|---|
| ASMB-977I-00A1 | LGA4677 EEATX SMB w/2 SAS/5 PCIe x16/IPMI | 106 910,0 | |
| ASMB-977T2-00A1 | LGA4677 EEATX SMB w/2 SAS/5 PCIe x16/2 10GbE/I | 118 154,0 |
- Серверна плата LGA4677 з процесором Intel® Xeon® 4-го покоління, що масштабується.
- Пам'ять DDR5 4800 МГц RDIMM до 4 ТБ (16 DIMMS) та підтримка Intel® Optane™
- 5 x PCIe x16 та 5 x PCIe x8
- Подвійні порти 10GbE Intel® X710-AT2
- 9 x SATA3 та 2x роз'єм M.2 (сумісні з SATA/PCIe)
- Діапазон робочих температур довкілля 0 ~ 40 °C
Додаткова інформація
| Form Factor | Proprietary |
Processor System |
|
| Socket | Dual Intel® LGA4677 |
| CPU type | 4th Gen Intel Intel® Xeon® Scalable processors(CPU cooler should be purchased separately and TDP up to 205W*) |
Core Logic |
|
| Chipset | Intel® C741 chipset |
Memory |
|
| Total slots | 16 (1 DIMM per channel) |
| Capacity | Maximum 4TB ECC RDIMM |
| Memory type | DDR5 ECC-REG 3200/3600/4000/4400/4800 MHz RDIMM, support Intel® Optane™ Persistent Memory |
| Memory size | 16GB, 32GB, 64GB, 128GB, 256GB |
Expansion Slots |
|
| Total PCIe slots | 10 |
| Slot location 1 | PCIe x 8 slot (x8 link), signal from CPU0 (Gen4) |
| Slot location 2 | PCIe x 16 slot (x16 link), signal from CPU0 (Gen5) |
| Slot location 3 | N/A |
| Slot location 4 | PCIe x 16 slot (x16 link), signal from CPU0 (Gen5) |
| Slot location 5 | PCIe x 8 slot (x8 link), signal from CPU1 (Gen4) |
| Slot location 6 | PCIe x 16 slot (x16 link), signal from CPU0 (Gen5) |
| Slot location 7 | PCIe x 8 slot (x8 link), signal from CPU1 (Gen4) |
| Slot location 8 | PCIe x 16 slot (x16 link), signal from CPU1 (Gen5) |
| Slot location 9 | PCIe x 16 slot (x16 link), signal from CPU1 (Gen5) |
| Slot location 10 | PCIe x 8 slot (x8 link), signal from CPU1 (Gen4) |
| Slot location 11 | PCIe x 8 slot (x8 link), signal from CPU1 (Gen4) |
Graphics |
|
| VGA | Aspeed AST 2600 |
Storage |
|
| SATA controller | Intel® C741: 8 x SATA3.0 (6 Gb/s) via Mini SAS HD (SFF-8643), support software RAID 0,1,5,10 1 x SATA3.0 (6 Gb/s) |
| SAS controller | - |
Networking |
|
| GbE/10GbE LAN | 2 x Intel® I210AT / Intel® X710-AT2 (dual 10GbE ports) |
Onboard I/O |
|
| PSU connector | 24-pin SSI power connector + 6 x 8-pin SSI 12 V power connector |
| USB connector | 2 x USB 3.2 Gen 1 ports (one onboard header) + 1 x Type-A USB 2.0 port |
| Fan header | 7 x 4-pin (2 for CPU + 5 for system) + 2 x 8-pin (for external rear fan) |
| M.2 | 1 x M.2 2242/2280 B+M key (SATA and PCIe) + 1 x M.2 2242/2280 B+M key (PCIe) |
| SMBus | 1 |
| Chassis intrusion | 1 |
| Front LAN LED | 1 |
| Audio Header | 1 |
| PS/2 Keyboard/Mouse header | 1 |
| Serial port header | 1 |

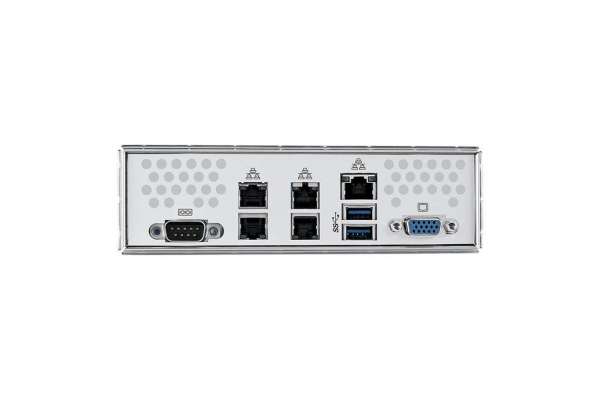

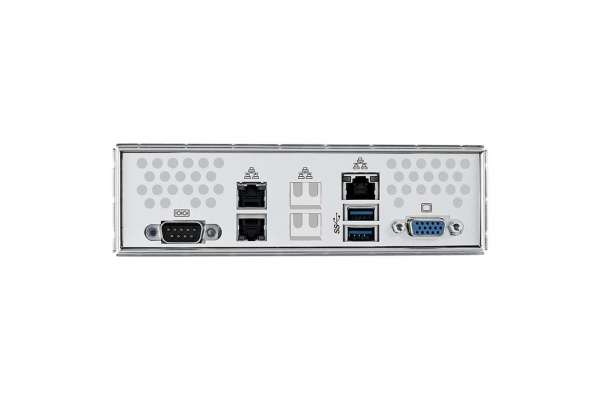

Rear I/O Connector |
|
| External serial port | 1 |
| External USB port | 2 (USB 3.2 Gen. 1) |
| VGA port | 1 |
| RJ-45 | 5 (1 port dedicated for IPMI function) for T2 SKU/3 (1 port dedicated for IPMI function) for I SKU |
| PS/2 KB/mouse | - |
| Infiniband | - |
Management Solution |
|
| Software | - |
| Out of band remote management | Yes |
Monitoring |
|
| CPU temperature | Yes |
| System monitoring | Yes |
Watchdog Timer |
|
| Output | System reset |
| Interva | Programmable 1 ~ 255 sec/min |
Power Requirements |
|
|
Power On 3.3V 5V 12V 5Vsb -12V 8P_CPU0 8P_CPU1 (205W CPU@1.6GHz DDR5 4800 64G*16) |
3.3V (2.43A) 5V (1.76A) 12V (18.12A) 5Vsb (1.54A) -12V (0A) 8P_CPU0 (16.29A) 8P_CPU1 (13.91A) |
Environment |
|
| Temperature |
|
| Humidity |
|
Physical Characteristics |
|
| Dimensions (L x H) | 380 x 349.5 mm (14.96" x 13.76") |
