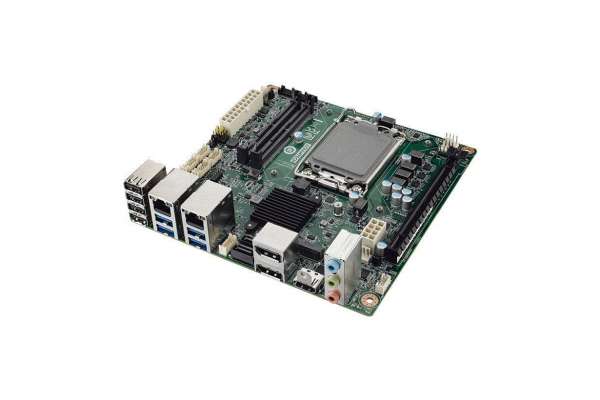

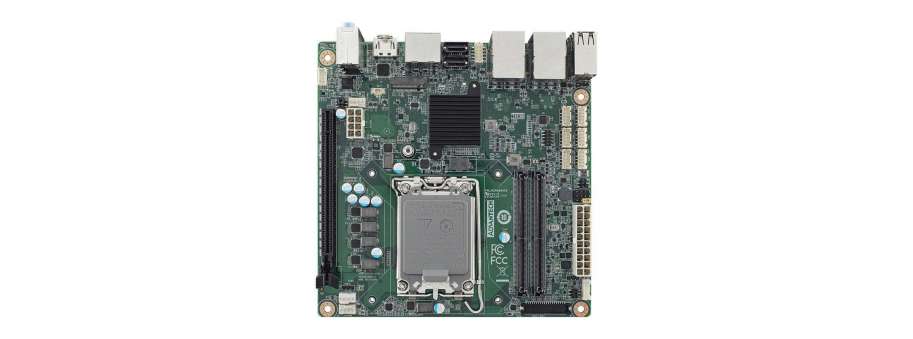

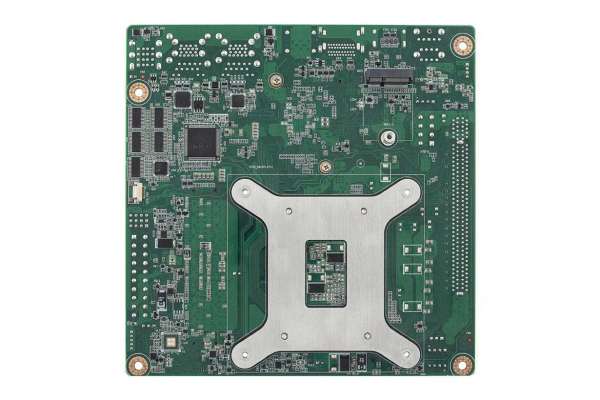

Материнська плата Mini-ITX Advantech AIMB-208

Mini-ITX плата на Intel® 12th/13th Gen Core™ (Raptor Lake-S) i9/i7/i5/i3 LGA1700, з 2 DP/HDMI/LVDS,2 SATA III, 6 COM, 2 LAN, 4 USB3.2 Gen1x1 і 6 USB2.0 Advantech AIMB-208

Вартість та наявність

Код товару	Опис товару	Ціна з ПДВ	Наявність
AIMB-208HF-LAA1	MiniITX ADL-S LGA1700 H610E/LVDS/PCIex16 Gen4/D4	18 358,0
AIMB-208HL-EAA1	MiniITX ADL-S LGA1700 H610E/PCIex16 Gen4/DDR4	17 399,3

• Процесори Intel® Core™ 12-го/13-го покоління, макс. 24 ядра, підтримка чипсета H610E
• До 64 ГБ DDR4 3200 MT/s з двома модулями SO-DIMM
• PCIe x16 Gen4
• Три незалежні дисплеї з 2 DP, 1 HDMI, 1 LVDS
• Багаті можливості розширення: 1 M.2 M-key і 1 M.2 E-key, 4 USB 3.2 Gen1x1 і 6 USB2.0, 2 SATA III і 6 COM
• WISE-DeviceOn і API для вбудованого ПЗ

13th Generation Processors
CPU	i9-13900E / i9-13900	i9-13900TE	i7-13700E / i7-13700	i7-13700TE	i5-13500E / i5-13500	i5-13500TE	i5-13400E/ i5-13400	i3-13100E / i3-13100	i3-13100TE
Core Number	24	24	16	16	14	14	10	4	4
Base frequency (GHz)	1.8/2.0	1	1.9/2.1	0.8	2.4/2.6	1.3	2.4/2.5	3.3/3.4	2.4
Max Speed (GHz)	5.2/5.6	5	5.1/5.2	4.8	4.6/4.8	4.5	4.6	4.4/4.5	4.1
Smart cache (MB)	36	36	30	30	24	24	20	12	12
TDP (W)	65	35	65	35	65	35	65	60	35
12th Generation Processors
CPU	i9-12900E / i9-12900	i9-12900TE	i7-12700E / i7-12700	i7-12700TE	i5-12500E / i5-12500/12400	i5-12500TE	i3-12100E / i3-12100	i3-12100TE	G7400E	G7400TE	G6900E	G6900TE
Core Number	16	16	12	12	6	6	4	4	2	2	2	2
Base frequency (GHz)	2.3/2.4	1.1	2.1	1.4	2.9/3.0/2.5	1.9	3.2	2.1	3.6	3	3	2.4
Max Speed (GHz)	5	4.8	4.8	4.7	4.5/4.6/4.4	4.3	4.2/4.3	4	NA	NA	NA	NA
Smart cache (MB)	30	30	25	25	18	18	12	12	6	6	4	4
TDP (W)	65	35	65	35	65	35	60	35	46	35	46	35

Додаткова інформація

Processor System
Chipset	H610E
BIOS	AMI EFI 256Mb SPI
Expansion Slot
M.2	1 M-Key for SSD, 1 E-Key for Wireless connection
PCIe x16	PCIe x16 Gen4 for discrete GPU card and storage devices
Memory
Technology	Dual Channel DDR4, up to 3200 MT/s (non-ECC)
Max. Capacity	64GB (up to 32GB per DIMM)
Socket	2 x 260pin SO-DIMM
Graphics
Controller	up to Intel® UHD Graphics 770
HDMI	HDMI1.4b, up to 3840×2160 @ 30 Hz
DP	DP1.4a, up to 4096 x 2304 @ 60 Hz
eDP	By Option, up to 4096 x 2304 @ 60 Hz
LVDS	By Default, supports singel/dual channel 18/24-bit, up to 1920 x 1200 @ 60 Hz (eDP colay with LVDS)
Multi Displays	up to 3 display(combination of HDMI, 2DP, eDP or LVDS)
Network
ETHERNET	10/100/1000/2500 Mbps (by BOM option)
Controller	Intel i219V and Intel i226V
Connector	2 x RJ45
Audio
Codec	Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in
Amplifier	Yes (Option, 2.5W)
SATA
Max data transfer rate	6 Gb/s
Channel	2 x SATA III

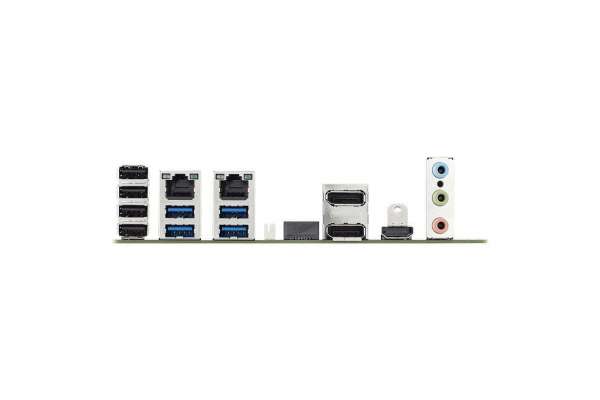

Rear I/O
DP	2
HDMI	1
Ethernet	2
USB	Up to 4 USB3.2 Gen1x1 & 4 USB2.0
Audio	1 (Line in/Line out/Mic in)
Internal Connector
USB	2 (USB2.0)
LVDS/eDP	1 (eDP colay with LVDS)
Seria	6 (COM1~COM6 support RS-232. COM2 option RS-232/422/485)
SATA	2
M.2	1 M-key (dimension: 2242) 1 E-key (dimension: 2230)
GPIO	8-bit
Watchdog Timer
Output	System reset
Interva	Programmable 1 ~ 255 (second or minute)
Power Requirements
Input voltage	12V ATX
Connector	Internal ATX 20pin
Power consumption	Configuration Intel® Core™ i9-13900E, 2pcs 32 GB DDR4 3200 MT/s Max. 82.2 W Typical 60 W
Environment
Temperature	Operating: 0 ~ 60° C (32 ~ 140° F)
Storage	Non-Operating: -40 ~ 85° C (-40 ~ 185° F)
Physical Characteristics
Dimensions	170 mm x 170 mm (6.69" x 6.69")
