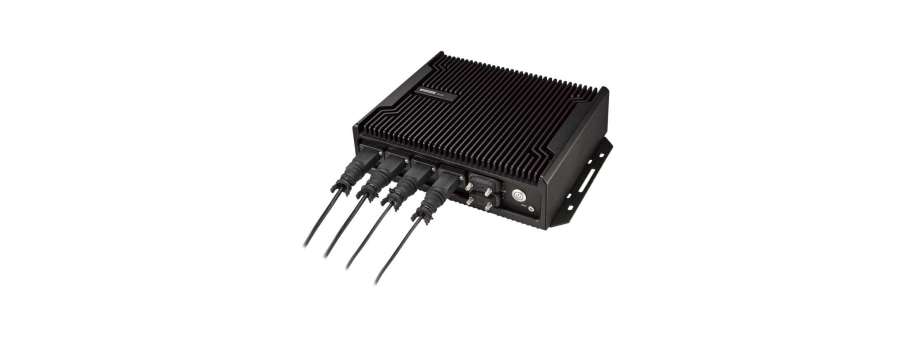

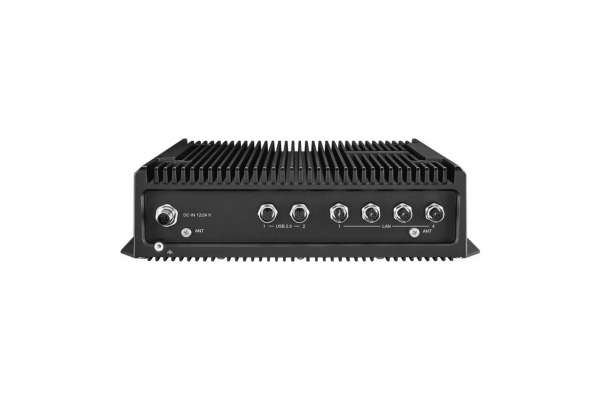

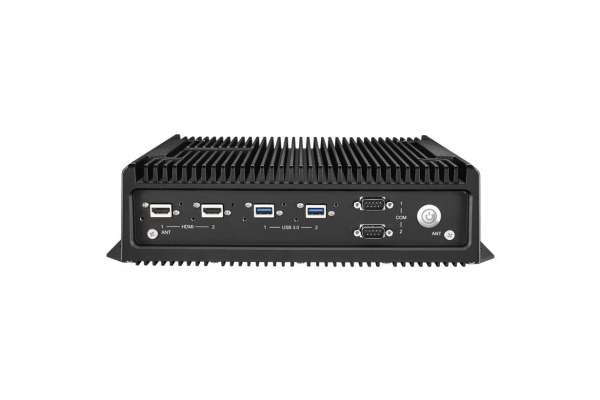

Захищений ПК IP65 на базі процесорів Intel® Core™ 11-го покоління для автомобільної, залізничної та зовнішньої техніки Advantech TS-207
Вартість та наявність
| Код товару | Опис товару | Ціна з ПДВ | Наявність |
|---|---|---|---|
| TS-207-V2DNA1 | Промисловий комп'ютер TS-207-V2DNA1 Intel Celeron 6305E IP65 In-Vehicle 12/24V | 134 453,0 | |
| TS-207-V5DAA1 | Промисловий компактний комп'ютер для транспорту TS-207-V5DAA1 Intel i5-1145GRE IP65 In-Vehicle 12/24V | 193 626,0 |
- Процесори Intel Core серії U 11-го покоління
- Вдосконалене відеоспостереження із прискорювачем ШІ
- Безвентиляторний режим роботи при температурі від -40 до 70°C
- Підтримка 4 портів Gigabit Ethernet або опцій PoE*
- Корпуси IP65 для вимогливих програм AIoT
- Інтелектуальне керування запаленням автомобіля
- Сертифікація E-Mark(13), EN50155 та MIL-STD810H
- Віддалене керування Advantech WISE-DeviceOn
Додаткова інформація
| TS-207-V5DAA1 | TS-207-V2DNA1 | |
Processor System |
||
| CPU | Intel i5-1145GRE | Intel Celeron 6305E |
| Frequency | 1.5/ 4.1 GHz (Max Trubo) | 1.8 GHz |
| L3 Cache | 8 MB | 4 MB |
| BIOS | AMI EFI 128 Mbit | AMI EFI 128 Mbit |
Memory |
||
| Technology | DDR4 Dual-channel memory, Up to 3200MT/S | DDR4 Dual-channel memory, Up to 3200MT/S |
| Onboard memory | 8GB | None |
| SODIMM Memory | 1x SO-DIMM socket (up to 32GB) | 1x DDR4-3200 8GB DRAM |
Graphics |
||
| Controller | Intel® Iris® Xe Graphics 1.30 GHz | Intel® Iris® Xe Graphics 1.25 GHz |
| HW Acceleration | HW Encode: Supports AVC, MPEG-2, HEVC, and VP9. HW Decode: Supports Direct3D* 9 Video API (DXVA2),Direct3D12 Video API,Intel Media SDK,MFT (Media Foundation Transform) filters,Intel VA API | HW Encode: Supports AVC, MPEG-2, HEVC, and VP9. HW Decode: Supports Direct3D* 9 Video API (DXVA2),Direct3D12 Video API,Intel Media SDK,MFT (Media Foundation Transform) filters,Intel VA API |
| HDMI | 2x HDMI 2.0b with 4Kx2K support at 48-60Hz/24bpp | 2x HDMI 2.0b with 4Kx2K support at 48-60Hz/24bpp |
Audio |
||
| Main System | 1x Pin header, Line-in, Line out, Mic-in (support by project) | 1x Pin header, Line-in, Line out, Mic-in (support by project) |
Ethernet |
||
| LAN (PoE) | 4x M12 circular connectors with 10/100/1000 Mbps speed (IEEE802.3af PoE options with maximum power output of 60W. Support by project) | 4x M12 circular connectors with 10/100/1000 Mbps speed (IEEE802.3af PoE options with maximum power output of 60W. Support by project) |
I/O Interface |
||
| Serial Ports | 2x DB-9 RS-232/422/485 with auto flow control | 2x DB-9 RS-232/422/485 with auto flow control |
| USB Interface |
|
|
Other |
||
| Watchdog timer | 255-level timer interval, setup by software | 255-level timer interval, setup by software |
| TPM | TPM2.0 | TPM2.0 |
Expansion |
||
| mPCIe (MINIPCIE2) | 1x Full size mini PCIe slot (with PCIe Gen 1/USB 3.0, USB 2.0) | 1x Full size mini PCIe slot (with PCIe Gen 1/USB 3.0, USB 2.0) |
| mPCIe/mSATA (MINIPCIE1) | 1x Full size mini PCIe slot (with PCIe Gen 1/USB 3.0, USB 2.0 & SATA) | 1x Full size mini PCIe slot (with PCIe Gen 1/USB 3.0, USB 2.0 & SATA) |
| M.2 | 1x M.2 2230 E key (with PCIe Gen 1, USB 2.0) | 1x M.2 2230 E key (with PCIe Gen 1, USB 2.0) |
Storage |
||
| mSATA | 1x MSATA (leverage mSATA/mPCIe slot) | 1x MSATA (leverage mSATA/mPCIe slot) |
| SATA | 1x SATA-III (mounting kits, option) | 1x SATA-III (mounting kits, option) |
| Onboard NVMe SSD | Up to 32GB (support by project) | Up to 32GB (support by project) |
Software Support |
||
| Microsoft Windows | Windows 10 | Windows 10 |
| Linux | Ubuntu 20.04 LTS | Ubuntu 20.04 LTS |
Power Requirement |
||
| Power Input Voltage |
|
|
| Vehicle Power Ignition | Selectable boot-up & shut-down voltage, on/off delay time | Selectable boot-up & shut-down voltage, on/off delay time |
| Power Consumption |
|
|
| Isolation | 1.5 KV Isolated | 1.5 KV Isolated |
Mechanical |
||
| Construction | Aluminum housing, Black | Aluminum housing, Black |
| Mounting |
|
|
| Dimensions (W x H x D) |
|
|
Environment |
||
| Operating Temperature |
|
|
| Storage Temperature | -40 ~ 85 °C (-40~185 °F) | -40 ~ 85 °C (-40~185 °F) |
| Relative Humidity | 95% @ 40 °C (non-condensing) | 95% @ 40 °C (non-condensing) |
| Sealing level | IP65 (work with option Amphenol waterproof cap and boot style hood to protect mating interfaces against water and dust incursion) | IP65 (work with option Amphenol waterproof cap and boot style hood to protect mating interfaces against water and dust incursion) |
|
Vibration/Shock |
|
|
Regulation |
||
| EMC | CE/FCC Class B | CE/FCC Class B |
| Safety |
|
|
| In-Vehicle Power | ISO7637-2 Lev.4 | ISO7637-2 Lev.4 |
Others |
||
| Warranty | 3 years | 3 years |
