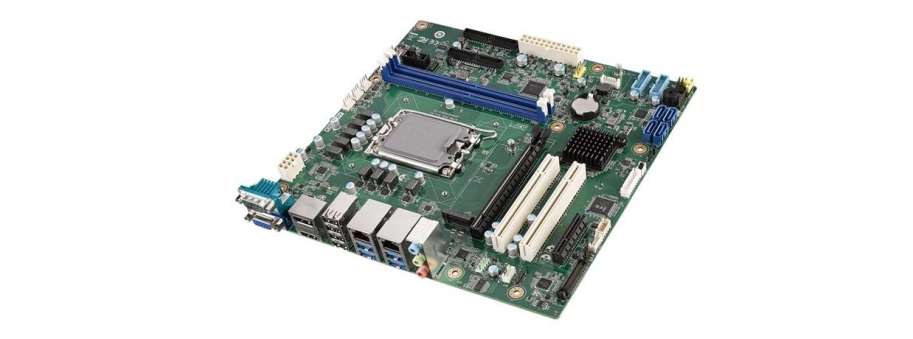

MicroATX на процесорах Intel® Core™ (Alder Lake-S/Raptor Lake-S) i9/i7/i5/i3 LGA1700 12/13 покоління, з DP/HDMI/VGA/ eDP(LVDS) Advantech AIMB-508

Вартість та наявність

Код товару Опис товару Ціна з ПДВ Наявність
AIMB-508HF-EAA1 Промислова материнська плата Advantech AIMB-508HF MicroATX with H610E/1eDP/4USB3.2/6COM/2.5G LAN  20 034,0
AIMB-508HL-0AA1 Промислова материнська плата Advantech AIMB-508HL MicroATX with H610E/4USB3.2/5COM/1G LAN  17 100,6
  • Підтримка процесорів Intel® 12/13-го покоління Core™ (Alder Lake-S/Raptor Lake-S) з чіпсетом H610E
  • Підтримка до 32 ГБ DDR4 3200 MT/S з двома модулями UDIMM
  • Слот PCIe x16 Gen4, слот PCIe x4 Gen3, слот PCI
  • Максимально до 8x USB 3.2, 6x USB 2.0, 4x SATAIII, 1x GbE LAN, 1x 2.5GbE LAN, 1x M.2 M-Key
  • WISE-DeviceOn і API для вбудованого ПЗ
  • Підтримка Win10 / Win11
13th Generation Processors
CPU
i9-13900E/
i9-13900TE
i7-13700E/
i7-13700TE
i5-13500E/
i5-13500TE
i3-13100E/
i3-13100TE
i9-13900
i7-13700
i5-13500
i5-13400
i3-13100
Core Number (Performance and Efficient core)
8P+16E
8P+8E
6P+8E
4P+0E
8P+16E
8P+8E
6P+8E
6P+4E
4P+0E
Max. Speed
5.20GHz/
5.00GHz
5.10 GHz/
4.80 GHz
4.60 GHz/
4.50 GHz
4.40 GHz/
4.10 GHz
5.60 GHz
5.20 GHz
4.80 GHz
4.80 GHz
4.50 GHz
Intel Smart Cache
36MB/ 36MB
30MB/ 30MB
24MB/ 24MB
12MB/ 12MB
36MB
30MB
24MB
20MB
12MB
TDP (W)
65W/35W
65W/35W
65W/35W
60W/35W
35W
35W
65W
65W
60W
12th Generation Processors
CPU
i9-12900E/
i9-12900TE
i7-12700E/
i7-12700TE
i5-12500E/
i5-12500TE
i3-12100E/
i3-12100TE
G7400E/ G7400TE
G6900E/ G6900TE
i9-12900
i7-12700
i5-12500
i5-12400
i3-12100
Core Number (Performance and Efficient core)
8P+8E
8P+4E
6P+0E
4P+0E
2P+0E
2P+0E
8P+8E
8P+4E
6P+0E
6P+0E
4P+0E
Max. Speed
5.0GHz/ 4.8GHz
4.8GHz/ 4.7GHz
4.5GHz/ 4.3GHz
4.2GHz/ 4.0GHz
3.6GHz/ 3.0GHz
3.0GHz/ 2.4GHz
5.10GHz
4.9GHz
4.6GHz
4.4GHz
4.3GHz
Intel Smart Cache
30MB/ 30MB
25MB/ 25MB
18MB/ 18MB
12MB/ 12MB
6MB/ 6MB
4MB/ 4MB
30MB
25MB
18MB
18MB
12MB
TDP (W)
65W/35W
65W/35W
65W/35W
60W/35W
46W/35W
46W/35W
65W
65W
65W
65W
60W

Додаткова інформація

Processor System

Supports Mode AIMB-508HF-EAA1/ AIMB-508HL-0AA1
Chipset H610E
BIOS AMI BIOS UEFI 256 Mbits SPI

Expansion Slot

PCIe x16 (Gen4) 1 slot
PCI 2 slots
PCIe x4 (Gen3) 1 slot

Memory

Technology Dual Channel DDR4 3200 MHz SDRAM
Max. Capacity 64GB (32 GB per DIMM)
Frequency 3200 MT/s
Socket 2 x 288-pin DDR4 DIMM Sockets (Non-ECC)

Graphics

Controller Intel UHD Graphics 770 Supports DirectX12, OpenGL 4.5
HDMI 1, up to resolution 4096*2160@ 30Hz
eDP 1, up to resolution 3840 x 2160 @ 60 Hz, co-design with LVDS, default eDP
Display Port 1, up to 4096 x 2304 @ 60Hz
LVDS 1, default eDP
Triple Display eDP+HDMI+DP, eDP+VGA+DP, HDMI+DP+VGA, HDMI+eDP+VGA
Dual Display DP +VGA, DP+eDP, DP +HDMI, HDMI + eDP, HDMI + VGA, eDP+VGA

Ethernet

Controller
  • LAN1: 1GbE Intel I219V (AIMB-508HF/AIMB-508HL)
  • LAN2: 2.5GbE Intel I226V (AIMB-508HF)
Connector RJ45 x2

SATA

Max Data Transfer Rate 600 MB/s Max. (SATA 3.0)
Q'ty 4

Rear I/O

Display Port Display Port
HDMI Display Port
Serial 1 (RS232/422/485 auto flow control)
VGA 1
Ethernet 2 (AIMB-508HF); 1 (AIMB-508HL)
USB 4 USB3.2 Gen1; 4 USB2.0
Audio 3 (Line-out, Mic-In, Line-in)

Internal Connector

USB 3.2 4 (AIMB-508HF)
USB 2.0 2 USB2.0
Serial 9 (AIMB-508HF); 4 (AIMB-508HL)
SATA 3.0 4
Extended Display Port (eDP) 1 (AIMB-508HF) optional (AIMB-508HL)
M.2 (M key) 1 2280 NVMe
GPIO 8-bit GPIO

Watchdog Timer

Output System reset
Interval Programmable 1 ~ 255 sec/min

Power Requirements

Power On
  • +5 V - 19.6A
  • 3.3 V - 24.04A
  • 12 V - 19A
  • 12V_8P - 18.5A
  • 5 Vsb - 2.5A

Environment

Temperature
  • Operating: 0 ~ 60° C (14 ~ 158° F), depends on CPU speed and cooler solution
  • Non-Operating: -40 ~ 85° C (-40 ~ 185° F)

Physical Characteristics

Dimensions 244 mm x 244 mm (9.6" x 9.6")

Power

Input Mode ATX input
