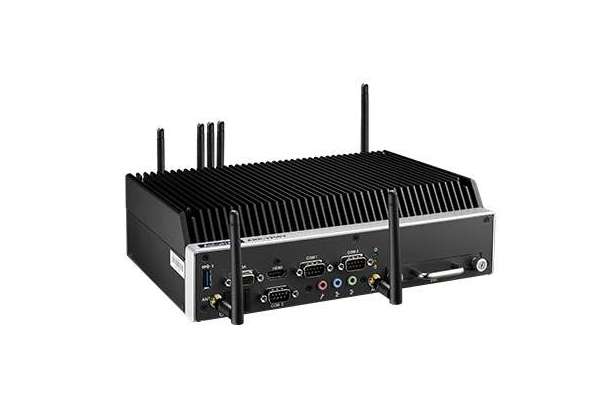

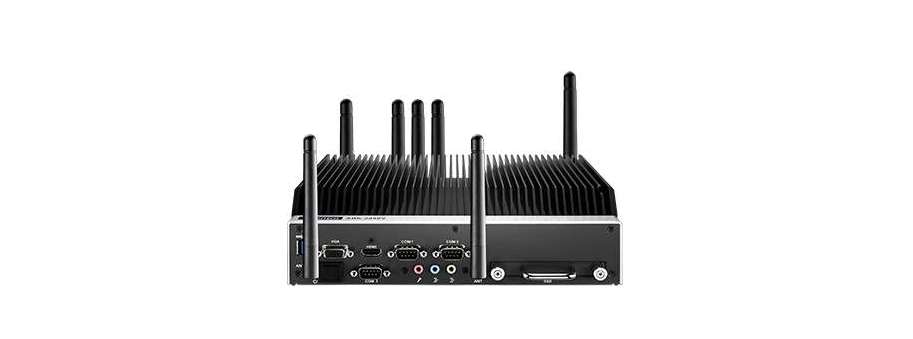

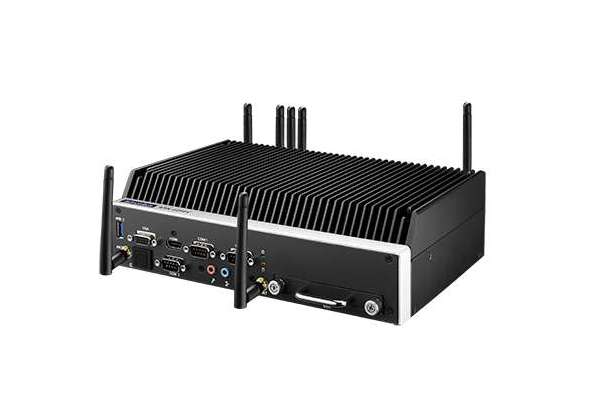

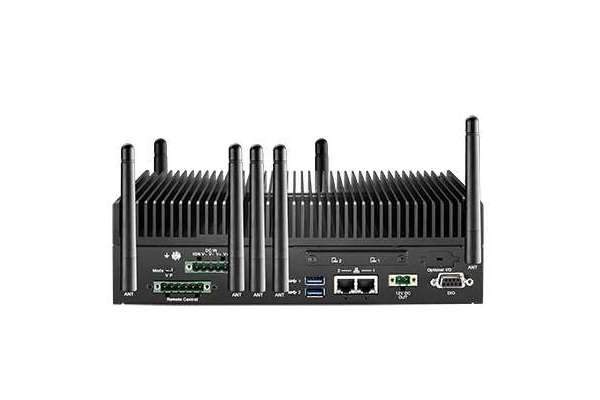

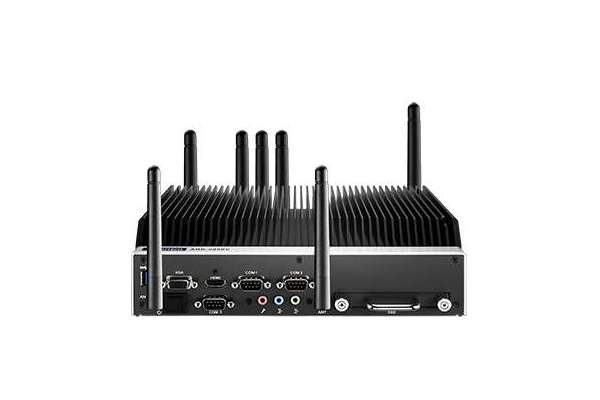

Вбудована безвентиляторна система на Intel Core i7-6822EQ QC/i5-6442EQ QC 6 покоління Advantech ARK-2250V
Вартість та наявність
| Код товару | Опис товару | Ціна з ПДВ | Наявність |
|---|---|---|---|
| ARK-2250V-S9A1E | Компактний промисловий комп'ютер Advantech ARK Vehicle PC, Core i5-6442EQ 1.9G, VGA+HDMI | 99 625,4 | |
| ARK-2250V-U0A1E | Компактний промисловий комп'ютер Advantech ARK Vehicle PC, Core i7-6822EQ 2.0G, VGA+HDMI | 117 250,0 |
Система без вентиляторів Intel Core i7-6822EQ QC / i5-6442EQ Q-Gen 6 покоління
- Intel i7-6822EQ QC / Intel i5-6442EQ QC SoC
- Підтримка TPM2.0
- Штабельований дизайн і додатковий комплект для розширення
- Підтримка електроживлення 12 / 24В постійного струму з сертифікацієй E-Mark
- Вбудоване керування запуском
- Різноманітність комунікацій Extensible, напр. WLAN, WWAN
- Сертифіковано для EMARK, ISO7637-2, IEC 60721-3-5 5M3, MIL-STD-810G
- Вбудоване програмне забезпечення для віддаленого керування Advantech WISE-PaaS / RMM
Додаткова інформація
| Part Number | ARK-2250V-S9A1E | ARK-2250V-U0A1E |
Processor |
||
| CPU | Intel i5-6442EQ QC SoC | Intel i7-6822EQ QC SoC |
| Core Number | 4 | 4 |
| Frequency | 1.9 GHz | 2.0 GHz |
| L2 Cache | 6 MB | 8 MB |
| BIOS | AMI EFI | AMI EFI |
Memory |
||
| Technology | DDR4 2133MHz | DDR4 2133MHz |
| Max. Capacity | 32 GB | 32 GB |
| Socket | 2 x 260-pin SO-DIMM | 2 x 260-pin SO-DIMM |
Graphics |
||
| Chipset | QM170 | QM170 |
| Graphic Engine | DirectX 11.3, OGL 4.4, OCL 2.1, Encode: H.264, MPEG2/4, VC1, WMV9, Decode: H.264, MPEG2, EHVC: H.265 | DirectX 11.3, OGL 4.4, OCL 2.1, Encode: H.264, MPEG2/4, VC1, WMV9, Decode: H.264, MPEG2, EHVC: H.265 |
| VGA | Up to 1920 x 1200 at 60 Hz | Up to 1920 x 1200 at 60 Hz |
| HDMI | HDMI 1.4a for HD video playback, 1080P at 60Hz | HDMI 1.4a for HD video playback, 1080P at 60Hz |
| Dual Display | VGA + HDMI (Std.) or Dual HDMI (by project) | VGA + HDMI (Std.) or Dual HDMI (by project) |
Ethernet |
||
| LAN1 | 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan | 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan |
| LAN2 | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
Audio |
||
| Interface | Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in | Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in |
I/O |
||
| Serial port | 3 x RS-232/422/485 port with auto flow control | 3 x RS-232/422/485 port with auto flow control |
| USB | 3 x USB3.0 Type A | 3 x USB3.0 Type A |
| GPIO | 4 x DI & 4 x DO w/ 1.5KV isolation, Input Voltage: 0 to 30 VDC, Output Current: Max. 500 mA per channel, On-state Voltage: 24 VDC nominal, open collector to 30 VDC | 4 x DI & 4 x DO w/ 1.5KV isolation, Input Voltage: 0 to 30 VDC, Output Current: Max. 500 mA per channel, On-state Voltage: 24 VDC nominal, open collector to 30 VDC |
| CANBus | Optional | Optional |
Other |
||
| Watchdog Timer | 255 levels timer interval, setup by software | 255 levels timer interval, setup by software |
| TPM | TPM2.0 (Infineon SLB9665) | TPM2.0 (Infineon SLB9665) |
| GPS | On board standalone GPS, support GPS, GLONASS, GALILEO , BeiDou and QZSS signals | On board standalone GPS, support GPS, GLONASS, GALILEO , BeiDou and QZSS signals |
| G-Sensor | On board high resolution G-Sensor, up to 13-bit resolution at ± 16g | On board high resolution G-Sensor, up to 13-bit resolution at ± 16g |
Expansion |
||
| Mini PCIe | #1, Full-size Mini PCIe (SATA/PCIe/USB) w/external SIM socket, #2, Full-size Mini PCIe (PCIe/USB) w/external SIM socket, #3, M.2 2230 E key | #1, Full-size Mini PCIe (SATA/PCIe/USB) w/external SIM socket, #2, Full-size Mini PCIe (PCIe/USB) w/external SIM socket, #3, M.2 2230 E key |
Storage |
||
| 2.5" HDD/SSD | 1 x 2.5" SATA drive bay | 1 x 2.5" SATA drive bay |
| mSATA | 1 x full size mSATA socket (Mini PCIe #1) | 1 x full size mSATA socket (Mini PCIe #1) |
Software Support |
||
| Microsoft Windows | Win7, WES7, Win8, WSE8, Win10 | Win7, WES7, Win8, WSE8, Win10 |
| Linux | Support by project | Support by project |
Power |
||
| Power Type | ATX | ATX |
| Input Voltage | 12/24VDC with E-Mark certification | 12/24VDC with E-Mark certification |
| Power Ignition Management | Selectable boot-up & shut-down voltage, on/off delay time | Selectable boot-up & shut-down voltage, on/off delay time |
| Isolation | 1.5KV Isolated | 1.5KV Isolated |
| Consumption | TBD | TBD |
Mechanical |
||
| Construction | Aluminum housing | Aluminum housing |
| Mounting | Wall mounting kit | Wall mounting kit |
| Dimensions | 260 x 73 x 160.2mm | 260 x 73 x 160.2mm |
| Weight | 3.2 Kg | 3.2 Kg |
Environment |
||
| Operational Temperature | With extended temperature peripherals: -20 ~ 70° C with 0.7m/s air flow | With extended temperature peripherals: -20 ~ 70° C with 0.7m/s air flow |
| Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) |
| Relative Humidity | 95% @ 40° C (non-condensing) |
95% @ 40° C (non-condensing) |
| Vibration during Operation | IEC 60721-3-5 5M3, MIL-STD-810G Method 514.6 |
IEC 60721-3-5 5M3, MIL-STD-810G Method 514.6 |
| Shock During Operation | IEC 60721-3-5 5M3, MIL-STD-810G Method 516.6 | IEC 60721-3-5 5M3, MIL-STD-810G Method 516.6 |
Certification |
||
| EMC | CE, FCC Class B, CCC, BSMI | CE, FCC Class B, CCC, BSMI |
| Safety Certifications | UL, CCC, BSMI, CB, EMARK | UL, CCC, BSMI, CB, EMARK |
