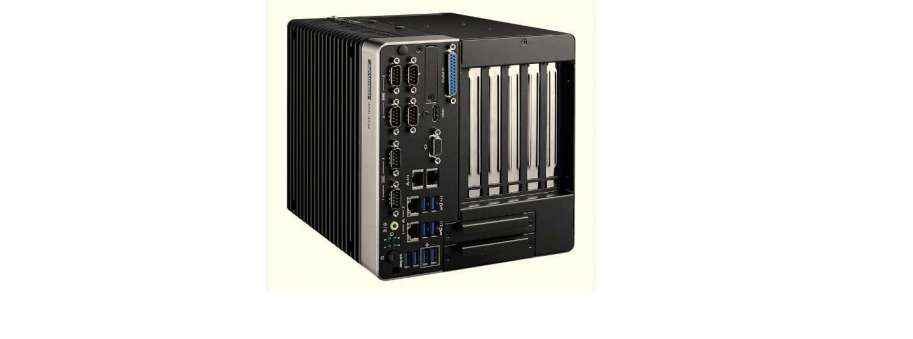

Безвентиляторний вбудовуваний ПК на Intel® Xeon® W / Core™ i LGA1200 10-го покоління PC Advantech ARK-3532D
Вартість та наявність
| Код товару | Опис товару | Ціна з ПДВ | Наявність |
|---|---|---|---|
| ARK-3532D-00A1 | Компактний промисловий комп'ютер Advantech ARK-3532 Intel CML W480E PCIex4+PCIex16+2*PCI, 9-36V | 73 082,2 |
- Підтримує Intel® 10th Gen. Xeon® W та Core™ i3/i5/i7/i9
- Три незалежних входи для дисплея: VGA + HDMI + Optional Display
- Підтримка пам'яті DDR4 SO-DIMM ECC / non-ECC до 64 ГБ
- Широкий діапазон вхідної напруги 9-36VDC
- До 4 комплектів відсіків для 2,5" жорстких дисків, підтримка Intel® SW RAID
- Підтримує 4GbE, 8USB, 6COM, 16bit DIO
- Без сертифіката RED
| CPU | W-1290TE | i9-10900E | i7-10700E | i5-10500E | i3-10100E | G5900E |
| Frequency | 1.8-4.5GHz | 2.8-4.7GHz | 2.9-4.5GHz | 3.1-4.2GHz | 3.2~3.8GHz | 3.2GHz |
| L3 Cache | 20MB | 20MB | 16MB | 12MB | 6MB | 2MB |
| Cores | 10 | 10 | 8 | 6 | 4 | 2 |
| TDP | 35W | 65W | 65W | 65W | 65W | 65W |
Додаткова інформація
Processor System |
|
| Chipset | W480E |
| BIOS | AMI EFI 256Mbit |
Memory |
|
| Technology | DDR4 2933 MHz |
| Max. Capacity | 64 GB |
| Socket | 2 x 260-pin SO-DIMM |
Graphics |
|
| Chipset | Intel® UHD Graphics 630 |
| Graphic Engine |
|
| VGA | 1920x1200@ 60Hz |
| HDMI | 1 HDMI port, HDMI 1.4 for HD video playback, 4096x2160@30Hz |
| Optional 3rd Display module | DVI-D / DP / HDMI Display Port |
| Triple Display | VGA+HDMI + 3rd display module |
Ethernet |
|
| LAN1 | 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan |
| LAN2, 3, 4 | 10/100/1000 Mbps Intel I210 GbE, support Wake On Lan |
Audio |
|
| Interface | Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch) |
Others |
|
| Watchdog Timer | 255-level timer interval, setup by software |
| TPM | TPM 2.0 (by optional AMO-I029) |
I/O Interface |
|
| Serial Port | 4 x RS-232/422/485 port with auto flow control, 2 x RS-232; COM3 support 5V/12V power supply (by jumper) |
| USB | 4 x USB 3.2 (10Gbs), 2 x USB 3.0, 2 x Independent USB 3.0 |
| GPIO | 16bit GPIO |
Expansions |
|
| Mini PCIe | 1 x Full-size Mini PCIe (1 x support mSATA, 1 x support SIM holder) #1 |
| M.2 | 1 x E key for WiFi #1 |
| Add-on Card Slot |
|
| Maximum card size | 110mm (H) x 180mm (L) |
Storage |
|
| HDD | 2 x 2.5" SATAIII 15mm height HDD bay support Intel SW RAID (Up to 4 x 2.5" SATAIII HDD bays by optional AMK-A0035) |
| mSATA | 1 x mSATA socket (Share with Mini PCIe) |
Software Support |
|
| Microsoft Windows | Windows 10 |
| Linux | By Project Support |
Power Requirements |
|
| Power Type | AT/ATX |
| Power Input Voltage | 9-36V |
| Power Adapter | AC to DC, 230W (Optional) |
Power Consumption (CPU/Memory Only) |
|
| Typical | 30W |
| Max. | 64.8W |
Mechanical |
|
| Construction | Aluminum housing |
| Mounting | Desk mounting |
| Dimensions (W x H x D) | 197.2 x 204 x 230 mm |
| Weight | 6.41Kg |
Environment |
|
| Operating Temperature | Up to 65W processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow with HDD: 0 ~ 40° C with 0.7m/s air flow |
| Storage Temperature | -40 ~ 85° C |
| Relative Humidity | 95% @ 40° C (non-condensing) |
| Vibration During Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| EMC | CE/FCC Class B, CCC, BSMI |
| Safety | CB, UL, CCC, BSMI |
