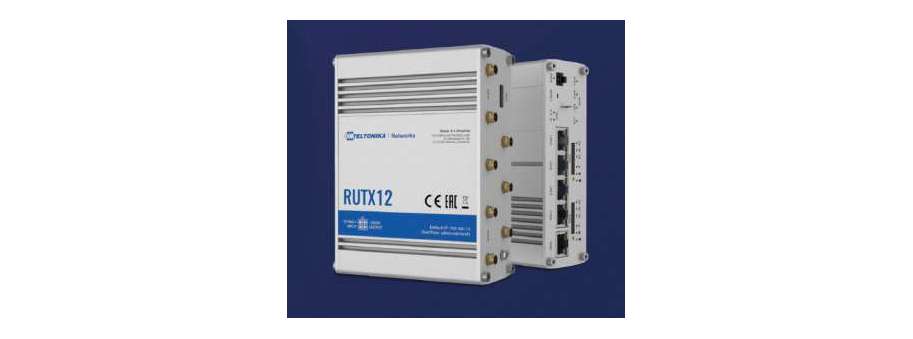

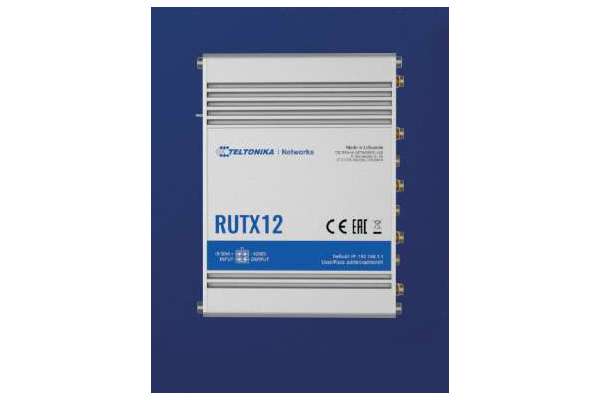

Роутер з 2-ма LTE радіомодулями, 2 SIM, 4 Gigabit Ethernet, Wi-Fi 802.11ac Teltonika RUTX12
Вартість та наявність
| Код товару | Опис товару | Ціна з ПДВ | Наявність |
|---|---|---|---|
| RUTX12000000 | Teltonika RUTX12 - LTE маршрутизатор на 2 SIM, незалежні радіомодулі, із Wi-Fi 2,4 та 5 ГГц, 4 порти Gigabit Ethernet, 1 порт WAN/LAN, GPS, в комплекті антени із кабелем та блок живлення. | 24 404,6 | |
| Teltonika RMS | Програма віддаленого керування обладнанням «Teltonika RMS» (ліцензія на один місяць для одного пристрою). | 189,6 | Доступно |
| 088-00270 | Комплект кріплення на DIN-рейку PR5MEC11 (для Teltonika RUT) | 213,9 | |
| 058R-00229 | Кабель живлення 4-pin із гвинтовою клемою | 568,7 | Доступно |
| PR1KCO28 | Зовнішня combo MIMO MOBILE/GNSS/WIFI SMA антена (003R-00253) | 2 944,0 |
RUTX12 - найбільш потужний маршрутизатор Dual LTE Cat 6
Два незалежних одночасно працюючих радіо модуля LTE Cat 6 забезпечують швидкість до 600 Мбіт/с з функцією балансировки навантаження.
5 портів Gigabit Ethernet, дводіапазонний Wi-Fi Wave-2 802.11ac, інтерфейси Bluetooth LE та USB, а також дві SIM-карти роблять ций пристрій незамінним в додатках, де втрата з'єднання неприпустима.
Має розширені функції безпеки, такі як VPN, IPsec, PPTP, L2TP, Stunnel і відстеження GNSS
- Швидкість стільникового зв'язку до 600 Мбіт/с з двома одночасними підключеннями LTE CAT 6
- Миттєве перемикання при відмові
- Wave-2 802.11ac, дводіапазонний Wi-Fi і Bluetooth LE
- Глобальна навігаційна супутникова система для визначення місця розташування і синхронізації часу
- Дозволяє використовувати декілька джерел WAN для збільшення пропускної здатності
- Сумісність з системою віддаленого управління Teltonika
Додаткова інформація
Mobile |
|
| Mobile module | 2 x 4G (LTE) – Cat 6 up to 300 Mbps, 3G – up to 42 Mbps |
| SIM/mobile module switch | 2 SIM cards, one for each mobile module, auto switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection (planned) |
| Status | Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, Mobile module in use |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to TTP, SMS to SMS, SMS auto replay, scheduled SMS (planned), SMPP (planned) |
| Black/White list | Operator black/white list |
| Multiple PDN (planed) | Possibility to use different PDNs for multiple network access and services |
| Band management | Band lock, Used band status display |
| APN | Auto APN |
| Bridge mode | Direct connection (bridge) between mobile ISP and device on LAN |
Wireless |
|
| Wireless mode | 802.11b/g/n/ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) |
| WiFi security | WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| ESSID | ESSID stealth mode |
| Wireless Hotspot | Captive portal (Hotspot), internal/external Radius server, built in customizable landing page |
Ethernet |
|
| WAN | WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| LAN | 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX |
Bluetooth |
|
| Bluetooth 4.0 | Bluetooth low energy (LE) for short range communication |
Network |
|
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) |
| NetSnapper (optional) | Mobile connection management, data compression VPN client (not available in standard FW) |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL) |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forwards, traffic rules, custom rules |
| DHCP | Static and dynamic IP allocation, DHCP Relay, Relayd |
| QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| DDNS | Supported >25 service providers, others can be configured manually |
| Network backup | VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as an automatic Failover |
| Load balancing | Balance Internet traffic over multiple WAN connections |
| SSHFS (optional) | Possibility to mount remote file system via SSH protocol (not available in standard FW) |
Security |
|
| Authetication | Pre-shared key, digital certificates, X.509 certificates |
| Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port based and tag based VLAN separation |
| Mobile quota control | Custom data limits for both SIM cards |
| WEB filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
| Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
Open |
|
| OpenVPN | Multiple clients and a server can run simultaneously, 12 encryption methods |
| OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
| IPsec | IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) |
| GRE | GRE tunnel |
| PPTP, L2TP | Client/Server instances can run simultaneously |
| Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
| DMVPN | Method of building scalable IPsec VPNs |
| SSTP | SSTP client instance support |
Modbus |
|
| Modbus TCP slave | ID filtering: Respond to one ID in range [1;255] or any Allow remote access: Allow access through WAN Custom registers: Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave functionality |
| Modbus TCP master | Supported functions: 01, 02, 03, 04, 05, 06, 15, 16 Supported data formats: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) |
| MQTT gateway | Gateway Allows sending commands and receiving data from Modbus Master trough MQTT broker |
| Modbus data to server | Protocols HTTP(S), MQTT, Azure MQTT (planned) |
Monitoring & management |
|
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
| CALL | Reboot, Status, Mobile data on/off, Output on/off |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP trap |
| JSON-RPC | Management API over HTTP/HTTPS |
| Modbus | Modbus TCP status/control |
| RMS | Teltonika Remote Management System (RMS) |
IoT platforms |
|
| Clouds of things | Allows monitoring of: Device data, Mobile data, Network info, Availability |
| ThingWorx | Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity | Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP |
| Azure IoT Hub | Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server |
| System characteristics | |
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB, DDR3 |
| FLASH memory | 256 MB Flash |
Firmware / configuration |
|
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW/configuration from server |
| RMS | Update FW/configuration for multiple devices at once |
| Keep settings | Update FW without losing current configuration |
Firmware customization |
|
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | SDK package with build environment provided |
Location tracking |
|
| GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
| Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
| NMEA | NMEA 0183 |
| Server software | Supported server software: TAVL, RMS |
| Mobile Network Geolocation | Get approximate device location on RMS based on mobile cell tower position (without using GPS) |
| Geofencing | Configurable multiple geofence zones |
Usb |
|
| Data rate | USB 2.0 |
| Applications | Samba share, custom scripts (planned) |
| External devices | Possibility to connect external HDD, flash drive, additional modem, printer (planned) |
| Storage formats | FAT, FAT32, NTFS |
Input/output |
|
| Input | 1x Digital Input |
| Output | 1x Digital Output |
| Events | SMS, Email, RMS |
Power |
|
| Connector | 4 pin industrial DC power socket |
| Input voltage range | 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Passive PoE. Possibility to power up through LAN1 port, not compatible with IEEE802.3af and 802.3at standards |
| Power consumption | Idle: <4 W, Max: <22 W |
Physical interfaces |
|
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| I/Os | 1 Digital Input, 1 Digital Output on 4 pin power connector |
| Status LEDs | 6 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2.4G and 5G WiFi LEDs |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |
| Power | 4 pin DC connector |
| Antennas | 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS |
| USB | USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
Physical specification |
|
| Casing material | Full aluminium housing |
| Dimensions | 95 x 132 x 44 mm (L x W x H) |
| Weight | 540 g |
| Mounting options | DIN rail (can be mounted on two sides), flat surface placement |
| Operating environment | |
| Operating temperature | -40 C to 75 C |
| Operating humidity | 10 % to 90 % non-condensing |
