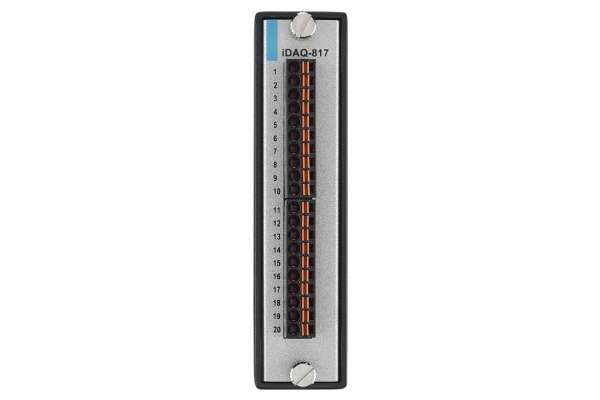

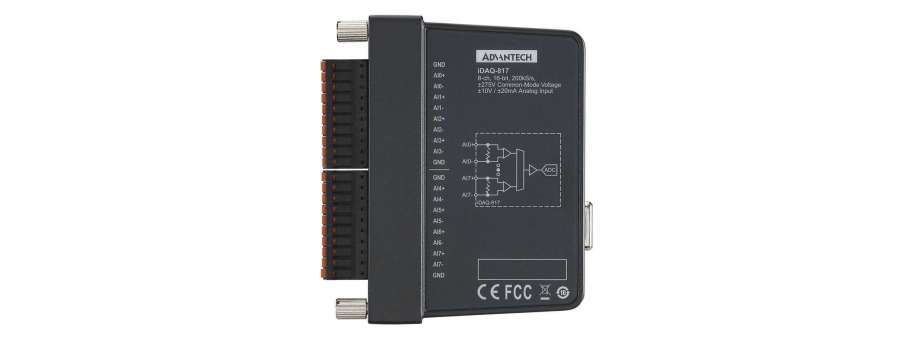

8-канальний, 16-бітний, 200 kS/s модуль аналогового вводу iDAQ Advantech iDAQ-817
8-канальний, 16-бітний, 200 kS/s модуль аналогового вводу iDAQ
Додаткова інформація
Analog Input |
|
| Channels | 8 differential |
| Resolution | 16 bits |
| ADC type | Successive approximation (SAR) |
| Input range | ±10 V or ±20 mA, each channel can be configured independently by software |
| Input common-mode voltage range | ±275 V max |
| Input coupling | DC |
| Input impedance |
|
| Isolation protection | 600 VRMS |
| Operation mode | Instant or buffered, software configurable |
| Sample rate | (200 / n) kHz max., where n is the number of enabled channels, software configurable |
| Internal data buffer (FIFO) size | 512 samples |
Absolute accuracy |
|
| Meas. Mode | Voltage / Current |
| Offset Error (max.) | ±1 mV / ±20 μA |
| Gain Error (max.) | ±0.01% of FSR* / ±0.1% of FSR* |
| Temperature drift |
|
| Bandwidth (-3dB) | 78 kHz |
| DC performance |
|
| AC performance |
|
General |
|
| Power consumption from chassis 1W typ./1.25W max | |
| Dimensions | 100 x 80 x 25 mm (3.94 x 3.15 x 0.98 in.) |
| Operating temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Storage temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating humidity | 10% to 90% RH, non-condensing |
| Storage humidity | 5% to 95% RH, non-condensing |
| Vibration | 5Grms |
| Shock | 30G |
| Certification | EMC: CE, FCC Safety: CB, UL |
