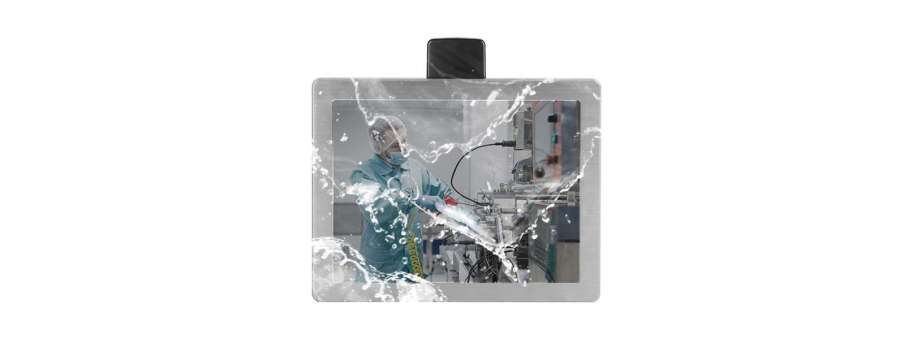

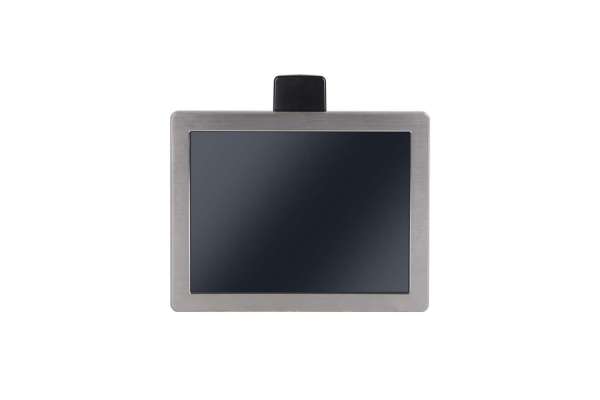

15" панельний ПК з нержавіючої сталі IP69K на базі процесора Intel J1900/8145U NODKA WP1501T-R1
- Підтримка Intel® Celeron J1900 / Intel® Core™ i5-7200U / Intel® Celeron J6412 / Intel® Core™ i3-8145U
- Міцний корпус із нержавіючої сталі IP69K

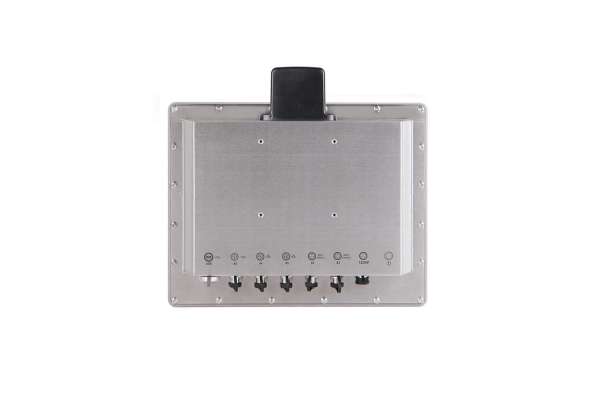

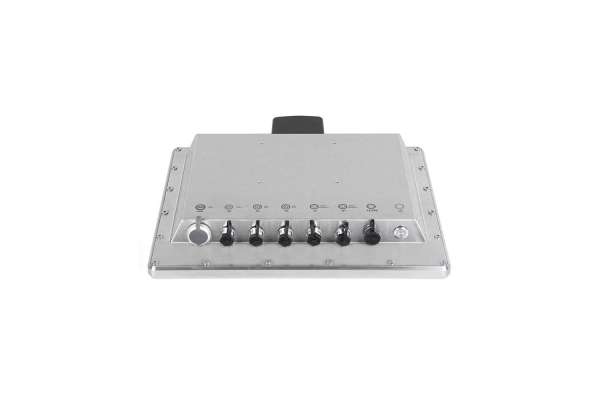

- Роз'єм М12. В усіх інтерфейсах використовуються водонепроникні авіаційні роз'єми
- 15" XGA TFT, оптимальна розподільна здатність 1024*768, проектний резистивний сенсорний екран
- Широкий діапазон вхідної напруги 12 ~ 24V, захист від зворотньої полярності, захист від перенапруги, захист від перевантаження по струму.
Додаткова інформація
System |
||||
| CPU | J1900 | 7200U | J6412 | 8145U |
| BIOS | Quad Core2.0GHz | Dual Core2.5GHz | Quad Core2.0GHz | Dual Core2.1GHz |
| L2 Cache | 2MB | 3MB | 1.5MB | 4MB |
| Chipset | Integrated PCH-LP | Integrated PCH-LP | Integrated PCH-LP | Integrated PCH-LP |
| Memory | DDR3L- 1333/1600/1866 MHz up to 8GB | DDR3L- 1333/1600/1866 MHz up to 8GB | DDR4-2133/ 2400MHz support up to 16GB | DDR4-2133/ 2400MHz support up to 16GB |
| Storage | 1 x mSATA | 1 x mSATA | 1 x mSATA | 1 x mSATA |
I/O |
||||
| LAN | 2 x Intel 1000Mbps | 2 x Intel 1000Mbps | 2 x Intel 1000Mbps | 2 x Intel 1000Mbps |
| USB | 2 x USB2.0 | 2 x USB2.0 | 2 x USB2.0 | 2 x USB2.0 |
| COM | 2 x RS232 (option RS485 before ordering) | 2 x RS232 (option RS485 before ordering) | 2 x RS232 (option RS485 before ordering) | 2 x RS232 (option RS485 before ordering) |
| Mini PCIe | Option either Wifi or 4G/3G module (Default: wifi) | Option either Wifi or 4G/3G module (Default: wifi) | Option either Wifi or 4G/3G module (Default: wifi) | Option either Wifi or 4G/3G module (Default: wifi) |
Basic |
||||
| Dimension (W x H x D) | 360mm x 284mm x 54mm | 360mm x 284mm x 54mm | 360mm x 284mm x 54mm | 360mm x 284mm x 54mm |
| Mounting | Desktop、VESA | Desktop、VESA | Desktop、VESA | Desktop、VESA |
| Net weight | 5.4kg | 5.4kg | 5.4kg | 5.4kg |
Operation system |
||||
| OS | Windows7, Windows8, Windows10, Linux | Windows7, Windows8, Windows10, Linux | Windows7, Windows8, Windows10, Linux | Windows7, Windows8, Windows10, Linux |
Power |
||||
| Power input | 12-24VDC ±10% , Support reverse connection protection, over current protection | 12-24VDC ±10% , Support reverse connection protection, over current protection | 12-24VDC ±10% , Support reverse connection protection, over current protection | 12-24VDC ±10% , Support reverse connection protection, over current protection |
| Max. power consumption | 38.6Watt | 38.6Watt | 38.6Watt | 38.6Watt |
LCD |
||||
| Type | 15" XGA TFT | 15" XGA TFT | 15" XGA TFT | 15" XGA TFT |
| Resolution | 1024 x 768 | 1024 x 768 | 1024 x 768 | 1024 x 768 |
| Colors | 16.7MB | 16.7MB | 16.7MB | 16.7MB |
|
Active Area (W x H) |
304.13mm x 228.10mm | 304.13mm x 228.10mm | 304.13mm x 228.10mm | 304.13mm x 228.10mm |
| Backlight | LED | LED | LED | LED |
| MTBF (hours) | 50000hrs | 50000hrs | 50000hrs | 50000hrs |
|
Pixel Pitch (H x V) |
0.297 x 0.297 | 0.297 x 0.297 | 0.297 x 0.297 | 0.297 x 0.297 |
| Luminance | 420cd/m2 | 420cd/m2 | 420cd/m2 | 420cd/m2 |
| Contrast Ratio | 800 : 1 | 800 : 1 | 800 : 1 | 800 : 1 |
| View angle | (L) 80 / (R) 80 / (T) 80 / (B) 80 | (L) 80 / (R) 80 / (T) 80 / (B) 80 | (L) 80 / (R) 80 / (T) 80 / (B) 80 | (L) 80 / (R) 80 / (T) 80 / (B) 80 |
Touch Screen |
||||
| Type | Resistive touch screen | Resistive touch screen | Resistive touch screen | Resistive touch screen |
| Transmittance | > 75% | > 75% | > 75% | > 75% |
| Controller interface | USB | USB | USB | USB |
| Driver Support | Windows XP, Windows 7, Winows8, Windows 10, Linux | Windows XP, Windows 7, Winows8, Windows 10, Linux | Windows XP, Windows 7, Winows8, Windows 10, Linux | Windows XP, Windows 7, Winows8, Windows 10, Linux |
| Response Time | < 5ms | < 5ms | < 5ms | < 5ms |
| Surface Hardness | Mohs' Number 3H | Mohs' Number 3H | Mohs' Number 3H | Mohs' Number 3H |
Working Environmental |
||||
| Work temperature | -20 ~ 60 °C | -20 ~ 60 °C | -20 ~ 60 °C | -20 ~ 60 °C |
| Storage temperature | -30 ~ 80 °C | -30 ~ 80 °C | -30 ~ 80 °C | -30 ~ 80 °C |
| Relative humidity | 5~95% RH@40°C,non-condensing | 5~95% RH@40°C,non-condensing | 5~95% RH@40°C,non-condensing | 5~95% RH@40°C,non-condensing |
| Vibration | Operating Random Vibration Test 5~500Hz, 1.5Grms@with SSD, follow IEC 60068-2-64 | Operating Random Vibration Test 5~500Hz, 1.5Grms@with SSD, follow IEC 60068-2-64 | Operating Random Vibration Test 5~500Hz, 1.5Grms@with SSD, follow IEC 60068-2-64 | Operating Random Vibration Test 5~500Hz, 1.5Grms@with SSD, follow IEC 60068-2-64 |
| Shock | Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27 | Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27 | Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27 | Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27 |
| EMC | CE/FCC Class B | CE/FCC Class B | CE/FCC Class B | CE/FCC Class B |
| Waterproof | IP69K | IP69K | IP69K | IP69K |
