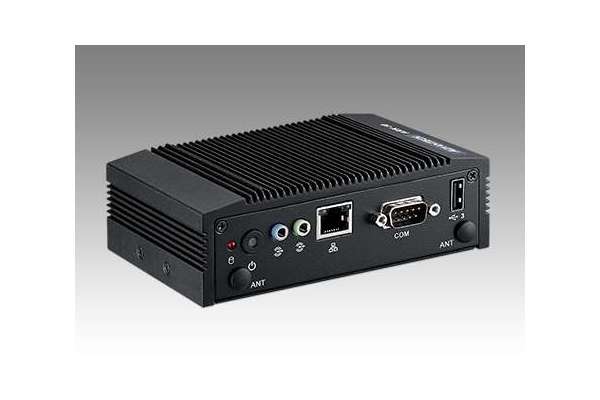

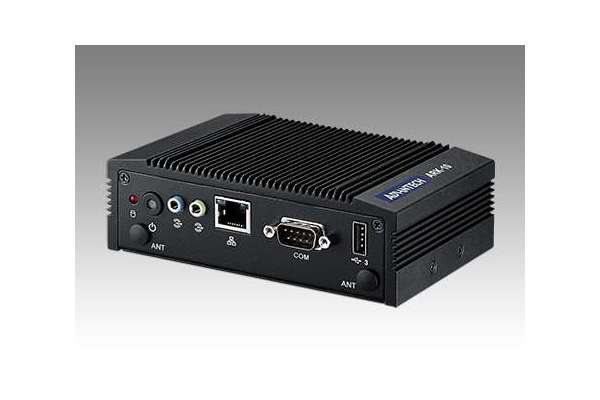

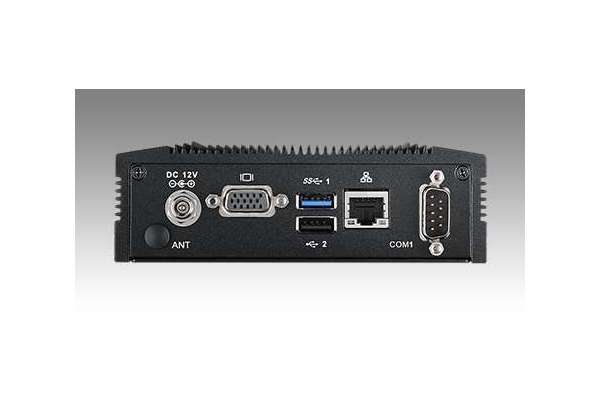

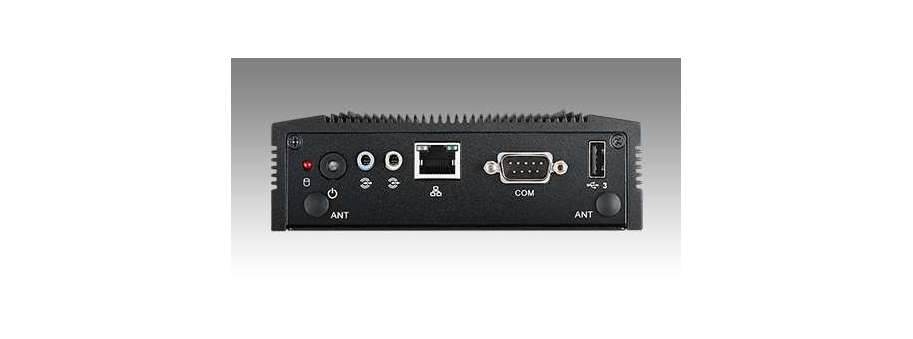

Компактный безвентиляторный встроенный ПК на Intel® Celeron J1900 Quad Core SoC с Dual GbE и Dual COM Advantech ARK-10
Цены и наличие
| Код товара | Описание товара | Цена с НДС | Наличие на складе |
|---|---|---|---|
| ARK-10-U0A3 | Компактний промисловий комп'ютер Advantech Atom J1900 D1 2.0GHz 2G RAM 500GHD 62368 ADP | 36 211,5 |
Встроенный безвентиляторный ПК на Intel® Celeron J1900 Quad Core SoC с Dual GbE и Dual COM
- Четырехъядерный процессор Intel® Celeron J1900, 2,0 ГГц, SoC
- Память 2 ГБ DDR3L и встроенный жесткий диск SATA 2,5″, 24x7,5 ГБ
- 2 x GbE для множественной передачи пакетов через Интернет
- 2 порта RS-232/422/485 (выбор BIOS)
- 1 полноразмерный MiniPCIe (например, модуль WLAN или WWAN)
- 1 x MiniPCIe половинного размера (например, mSATA)
- Дополнительные комплекты для монтажа на VESA / DIN-рейку / стену
- Резьбовой разъем питания
- Поддерживает SUSIAccess и API встроенного программного обеспечения
Дополнительная информация
| ARK-10-U0A2E | |
Processor |
|
|
CPU |
Intel Celeron Processor J1900 Quad Core SoC |
|
Core Number |
4 |
|
Frequency |
2.0 GHz (Up to 2.41 GHz w/ burst frequency enabled) |
|
L2 Cache |
2 MB |
|
BIOS |
AMI EFI 64 Mbit (Default BIOS is supported for 64-bit OS installation, BIOS for 32-bit OS is supported by project) |
Memory |
|
|
Technology |
DDR3 1333MHz |
|
Socket |
1 x 204-pin SO-DIMM, 2 GB Memory Built In |
Graphics |
|
|
Chipset |
Intel® Atom SoC integrated |
|
Graphic Engine |
DirectX* 11.1, OGL 3.0, OCL 1.1, OGL ES 2.0 support Encode: H264, MPEG2/4, VC1, WMV9 Decode: H264, MPEG2 |
|
VGA |
1 x VGA, support up to 1920 x 1200 at 60Hz |
Audio |
|
|
Main System |
ALC-888S, High Definition Audio. Line-out & Line-in |
Ethernet |
|
|
LAN1 |
10/100/1000 Mbps Intel i210 GbE, support Wake On Lan |
|
LAN2 |
10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
I/O Interface |
|
|
Serial Port |
2 x RS-232/422/485 (BIOS selectable) |
|
USB Interface |
2 x USB 2.0 & 1 x USB3.0 |
Other |
|
|
Watchdog Timer |
255 levels timer interval, setup by software |
Expansion |
|
|
Mini PCIe |
1 x Full-size Mini PCIe, support WLAN or WWAN module; 1 x Half-size Mini PCIe, support mSATA module |
Storage |
|
|
2.5" Drive Bay |
1 x 500GB 2.5" 24x7 SATA HDD Built In |
|
mSATA |
1x Half-size mSATA (Suggest to assembly by CTOS or T-Part due to complex installation) |
| Software Support | |
|
Microsoft Windows |
WES7, Windows 7, WE8S, Windows 8 (32-bit support by project) |
|
Linux |
Support (by Project) |
Power |
|
|
Input Voltage |
12 VDC |
|
Power Adaptor |
AC to DC, DC12 V/3 A, 36 W with threaded design |
Mechanical |
|
|
Construction |
Aluminum housing |
|
Mounting |
VESA/DIN Rail/Wall Mounting Kits (Optional) |
|
Dimensions |
133.8 x 43.1 x 94.2 mm (5.27" x 1.7" x 3.71") |
Environment |
|
|
Operating Temperature |
0 ~ 50° C with 0.7m/s air flow |
|
Storage Temperature |
-40 ~ 85° C (-40 ~ 185° F) |
|
Relative Humidity |
95% @ 40° C (non-condensing) |
|
Vibration during Operation |
0.5Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
Shock During Operation |
10G, IEC 60068-2-27, half sine, 11 ms duration |
Regulation |
|
|
EMC |
CE/FCC Class A, CCC, BSMI |
|
Safety |
UL, CCC, BSMI, CB |
