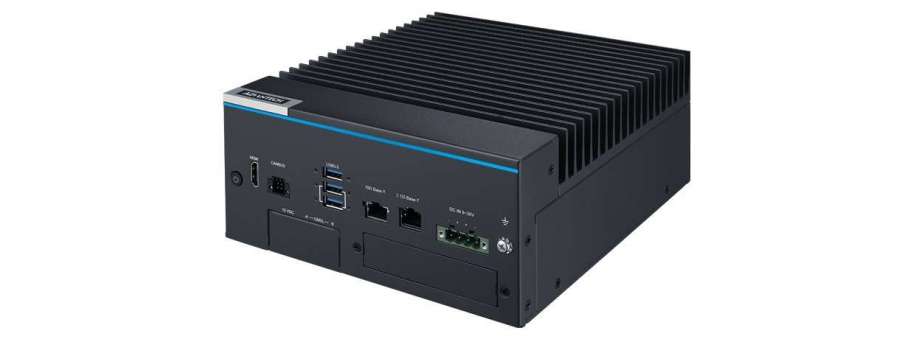

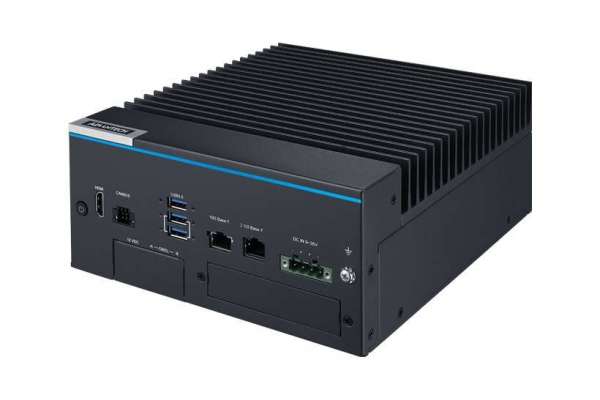

Безвентиляторная система искусственного интеллекта на базе NVIDIA Isaac Nova Orin Advantech MIC-732-AO
- Безвентиляторный и ультракомпактный дизайн
- Встроенный процессор NVIDIA® Jetson AGX Orin™ до 275 TOPS
- Поддержка 1 x 10GbE, 1 x 1GbE, 3 x USB 3.2 Gen 2 (10 Гбит/с)
- Поддержка 2 x CANbus, 1 x mPCIe, 2 x слотов Nano SIM
- Поддержка всего 8-ми GMSL3.0/2.0 с разъемами FAKRA
- Поддержка операционной системы NVIDIA Isaac Robot Operating System (ROS2)
Дополнительная информация
Processor |
|
CPU | 12-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU, 3MB L2 + 6MB L3 |
GPU | 2048-core NVIDIA Ampere GPU with 64 Tensor Cores Maximum Operating Frequency: 1.3GH |
Mem | 64GB LPDDR5 |
eMMC | 64GB eMMC |

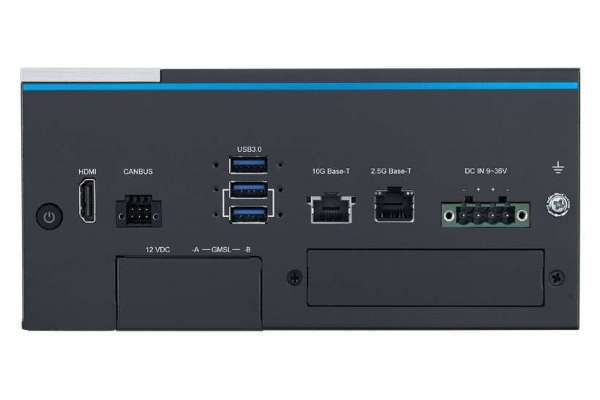

I/O |
|
Ethernet |
|
Display | 1 x HDMI Display |
USB |
|
CAN | 2 x CANBus |
Serial Ports | 2 x RS-232/422/485 (On-board pin header) |
Expansion |
|
M.2 |
|
Mini PCIe | 1 x mPCIe (Signal: PCIe+USB 2.0) |
SIM | 2 x Nano SIM slots |
GMSL(Optional) | 8-ch GMSL3.0/2.0 with FAKRA connectors |
iDoor (Optional) | 1 x iDoor bracket reserve |
Storage |
|
M.2 | 1 x M.2 2280 (B/M-Key, NVMe, Signal: PCIe x4) |
Power |
|
Mode | AT/ATX (Default AT) |
Input Voltage | 9~36VDC, Rated 12VDC |
Environment |
|
Operation Temperature | -20 ~ 60 °C with 0.7 m/s air flow |
Operating Humidity | 95% @ 40 °C (non-condensing) |
Vibration | 3Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
Shock | 10G / 11 ms |
Button |
Reset / Recovery |
Mechanical |
|
Dimension (W x H x D) | 192 x 203 x 90 mm (with heat sink) |
Weight | TBC |
Installation | Desktop / Wall mount |
BSP |
|
Jetpack | Above 6.0 |
Certifications | CE / FCC |
