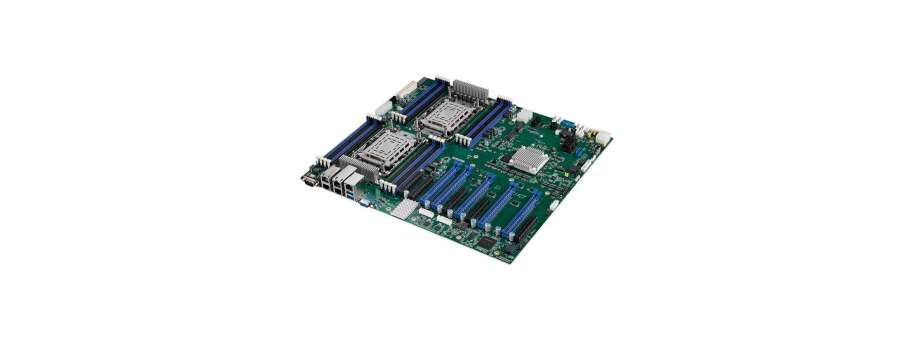

Масштабируемая серверная плата ASMB-977

Серверная плата Intel® Xeon® 4-го поколения LGA4677 с 16x DDR5, 5x PCIe x16, 9x SATA3, 4x USB 3.2 (Gen 1), Dual 10GbE и IPMI Advantech ASMB-977

Цены и наличие

Код товара	Описание товара	Цена с НДС	Наличие на складе
ASMB-977I-00A1	LGA4677 EEATX SMB w/2 SAS/5 PCIe x16/IPMI	106 910,0
ASMB-977T2-00A1	LGA4677 EEATX SMB w/2 SAS/5 PCIe x16/2 10GbE/I	118 154,0

• Серверная плата LGA4677 с масштабируемым процессором Intel® Xeon® 4-го поколения
• Память DDR5 4800 МГц RDIMM до 4 ТБ (16 DIMMS) и поддержка Intel® Optane™
• 5 x PCIe x16 и 5 x PCIe x8
• Двойные порты 10GbE Intel® X710-AT2
• 9 x SATA3 и 2x разъема M.2 (совместимы с SATA/PCIe)
• Диапазон рабочих температур окружающей среды 0 ~ 40 °C

Дополнительная информация

Form Factor	Proprietary
Processor System
Socket	Dual Intel® LGA4677
CPU type	4th Gen Intel Intel® Xeon® Scalable processors(CPU cooler should be purchased separately and TDP up to 205W*)
Core Logic
Chipset	Intel® C741 chipset
Memory
Total slots	16 (1 DIMM per channel)
Capacity	Maximum 4TB ECC RDIMM
Memory type	DDR5 ECC-REG 3200/3600/4000/4400/4800 MHz RDIMM, support Intel® Optane™ Persistent Memory
Memory size	16GB, 32GB, 64GB, 128GB, 256GB
Expansion Slots
Total PCIe slots	10
Slot location 1	PCIe x 8 slot (x8 link), signal from CPU0 (Gen4)
Slot location 2	PCIe x 16 slot (x16 link), signal from CPU0 (Gen5)
Slot location 3	N/A
Slot location 4	PCIe x 16 slot (x16 link), signal from CPU0 (Gen5)
Slot location 5	PCIe x 8 slot (x8 link), signal from CPU1 (Gen4)
Slot location 6	PCIe x 16 slot (x16 link), signal from CPU0 (Gen5)
Slot location 7	PCIe x 8 slot (x8 link), signal from CPU1 (Gen4)
Slot location 8	PCIe x 16 slot (x16 link), signal from CPU1 (Gen5)
Slot location 9	PCIe x 16 slot (x16 link), signal from CPU1 (Gen5)
Slot location 10	PCIe x 8 slot (x8 link), signal from CPU1 (Gen4)
Slot location 11	PCIe x 8 slot (x8 link), signal from CPU1 (Gen4)
Graphics
VGA	Aspeed AST 2600
Storage
SATA controller	Intel® C741: 8 x SATA3.0 (6 Gb/s) via Mini SAS HD (SFF-8643), support software RAID 0,1,5,10 1 x SATA3.0 (6 Gb/s)
SAS controller	-
Networking
GbE/10GbE LAN	2 x Intel® I210AT / Intel® X710-AT2 (dual 10GbE ports)
Onboard I/O
PSU connector	24-pin SSI power connector + 6 x 8-pin SSI 12 V power connector
USB connector	2 x USB 3.2 Gen 1 ports (one onboard header) + 1 x Type-A USB 2.0 port
Fan header	7 x 4-pin (2 for CPU + 5 for system) + 2 x 8-pin (for external rear fan)
M.2	1 x M.2 2242/2280 B+M key (SATA and PCIe) + 1 x M.2 2242/2280 B+M key (PCIe)
SMBus	1
Chassis intrusion	1
Front LAN LED	1
Audio Header	1
PS/2 Keyboard/Mouse header	1
Serial port header	1

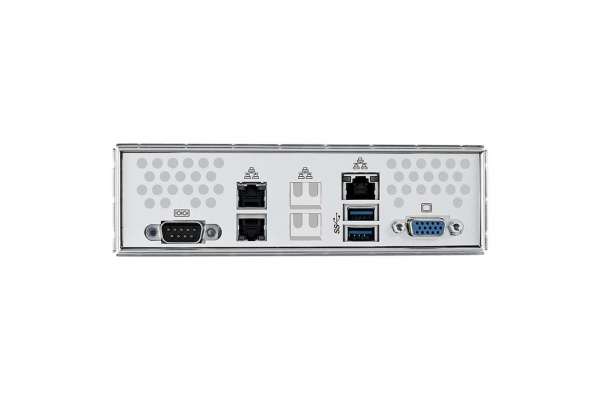

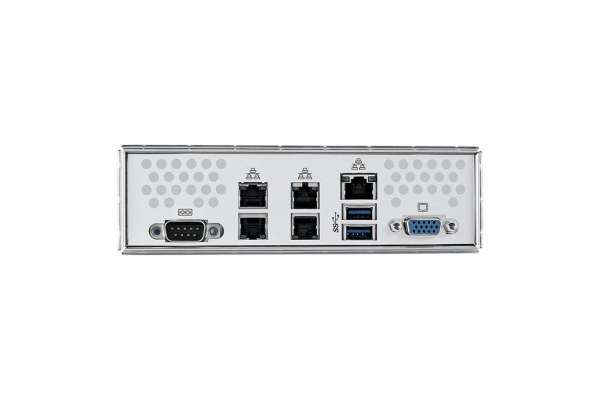

Rear I/O Connector
External serial port	1
External USB port	2 (USB 3.2 Gen. 1)
VGA port	1
RJ-45	5 (1 port dedicated for IPMI function) for T2 SKU/3 (1 port dedicated for IPMI function) for I SKU
PS/2 KB/mouse	-
Infiniband	-
Management Solution
Software	-
Out of band remote management	Yes
Monitoring
CPU temperature	Yes
System monitoring	Yes
Watchdog Timer
Output	System reset
Interva	Programmable 1 ~ 255 sec/min
Power Requirements
Power On 3.3V 5V 12V 5Vsb -12V 8P_CPU0 8P_CPU1 (205W CPU@1.6GHz DDR5 4800 64G*16)	3.3V (2.43A) 5V (1.76A) 12V (18.12A) 5Vsb (1.54A) -12V (0A) 8P_CPU0 (16.29A) 8P_CPU1 (13.91A)
Environment
Temperature	Operating 0 ~ 40 °C, depends on CPU speed and cooler solution Non-operating -40 ~ 85 °C
Humidity	Operating 10% ~ 95% Non-operating 10% ~ 95% (Non condensing)
Physical Characteristics
Dimensions (L x H)	380 x 349.5 mm (14.96" x 13.76")
