Промышленный ПК стартовой производительности на процессоре Intel® Alder Lake-N Cincoze DC-1300

Производитель: Cincoze
Facebook Twitter Linkedin Mail

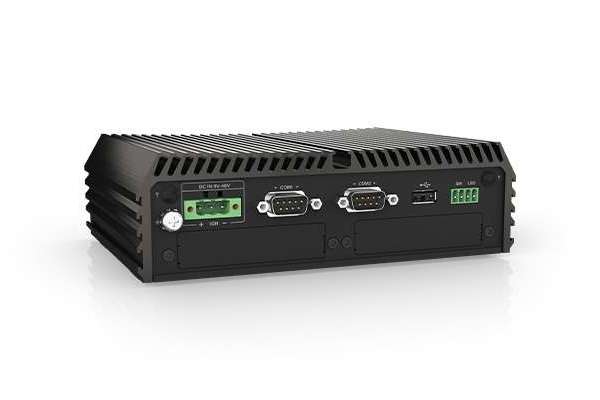

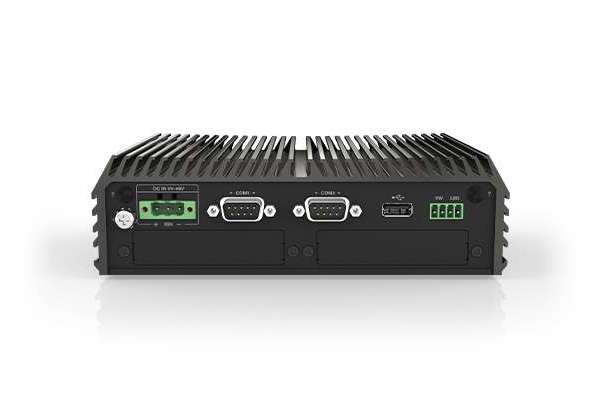

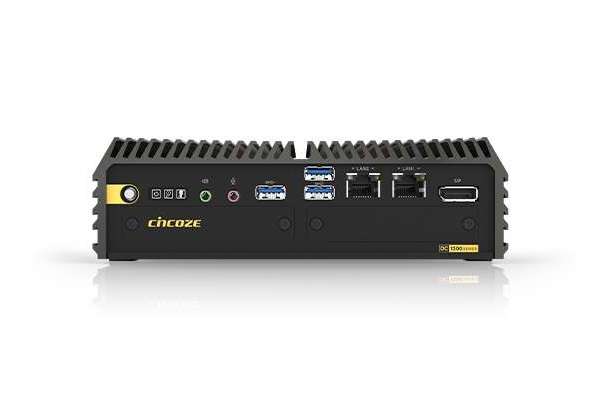

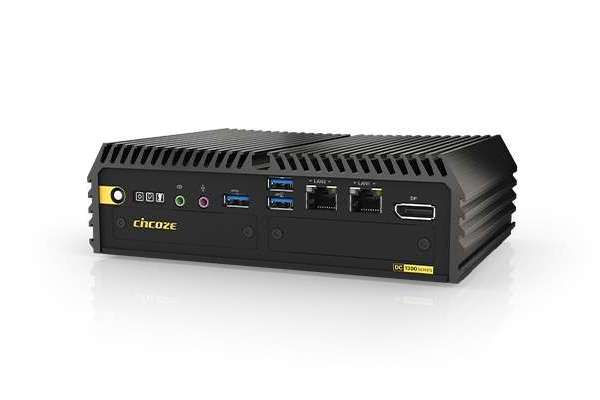

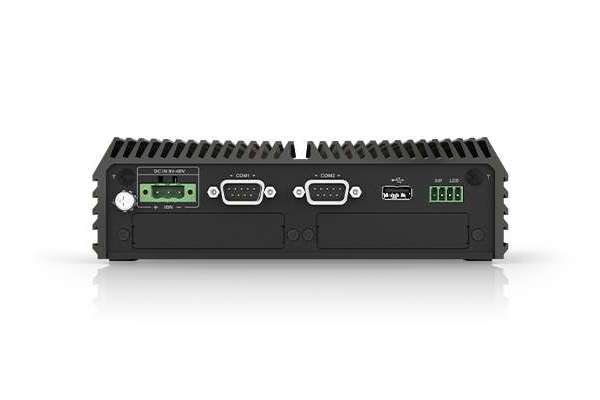

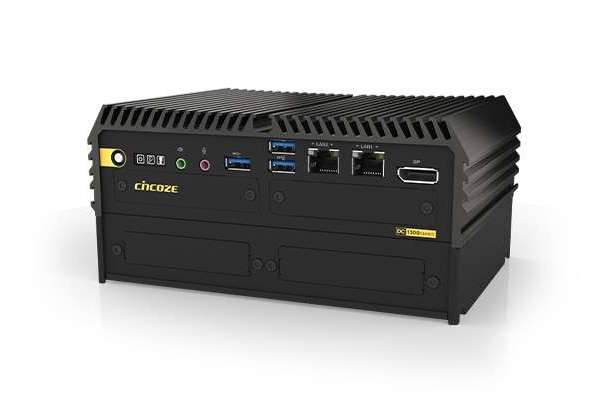

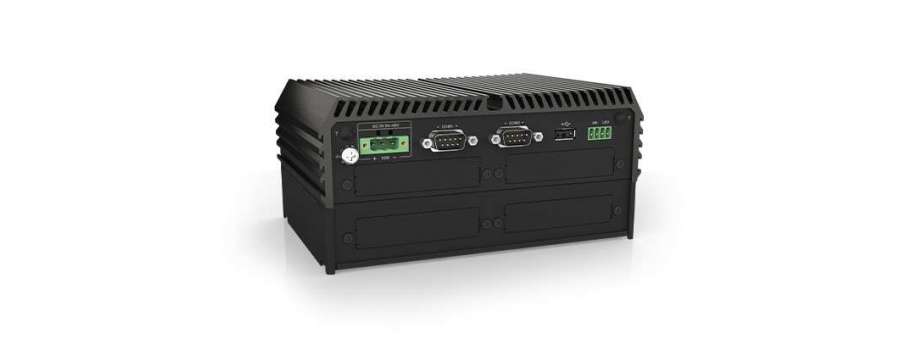

DC-1300 - это вариант начального уровня в линейке продуктов DIAMOND, специально разработанный для базовых промышленных приложений. Он поддерживает процессор Intel® Core™ i3 или N97 (Alder Lake-N) и обеспечивает максимальную гибкость расширения в компактном корпусе, являясь прочным и надежным решением для задач промышленной автоматизации в условиях ограниченного пространства.

  • Встроенный процессор Intel® Alder Lake-N N97 и Core™ i3-N305
  • 1 x гнезда DDR5 SO-DIMM, поддержка до 4800 МГц 16 ГБ памяти
  • 1x гнездо M.2 Key B Type 3052/3042 для расширения модулей 5G
  • 1x гнездо M.2 Key B Type 2242 для расширения модулей ввода/вывода
  • Технология CMI для дополнительного расширения модулей ввода/вывода
  • Технология CFM для функции определения мощности зажигания

Дополнительная информация

System
Processor
Onboard Intel® Alder Lake-N Series Processor:
- Intel® Core™ i3-N305 8 Cores Up to 3.80 GHz, TDP 15W
- Intel® Processor N97 4 Cores Up to 3.60 GHz, TDP 12W
Memory 1x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and non-ECC Type, Up to 16GB
BIOS AMI

Graphics
Graphics Engine Integrated Intel® UHD Graphics
Maximum Display Output Supports Two Independent Display (Onboard 1x DisplayPort + Optional CMI 1x Display)
DP 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz

Audio
Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

I/O
LAN
2x 2.5GbE LAN, RJ45
- GbE1: Intel® I225
- GbE2: Intel® I225
USB
  • 2 x USB 3.2 Gen2x1 (10Gbps), Type A
  • 1 x USB 3.2 Gen1x1 (5Gbps), Type A
  • 1 x USB 2.0 (480Mbps), Type A
COM 2x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9

Storage
SSD/HDD 1x 2.5" SATA HDD/SSD or 1x Half-Slim SSD (SATA 3.0)
M.2 SSD 1x M.2 SSD Shared by M.2 Key B Type 3042/3052 Socket, Support SATA SSD (SATA3.0)

Expansion
M.2 B Key Socket
  • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1/ USB3.2 Gen2 x1 / SATA), Support 5G/Storage/Add-on Card Expansion
  • 1x M.2 Key B Type 2242 (PCIe Gen 3x1), Support Add-on Card Expansion
SIM Socket 1x Front Accessible Dual Nano SIM Socket
CMI (Combined Multiple I/O) Interface
  • 1x CMI Interface for optional Display or I/O Module Expansion
  • 1x CMI Interface for optional I/O Module Expansion
CFM (Control Function Module) Interface 1x CFM Interface for optional IGN Module Expansion

Other Function
Clear CMOS Switch 1x Clear CMOS Switch
Reset Button 1x Reset Button
Instant Reboot Support 0.2sec Instant Reboot Technology
Watchdog Timer Software Programmable Supports 256 Levels System Reset
Status LED Indicator Power LED, Storage LED, IGN LED
Antenna Holes 2x Antenna Holes

Power
Power Button 1x ATX Power On/Off Button
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off 1x Remote Power On/Off, 2-pin Terminal Block
Max. Power Consumption
  • i3-N305 CPU: 49.4W
  • N97 CPU: 35.9W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing
Inrush Current (Peak)
  • i3-N305 CPU: 4.572 A@12V
  • N97 CPU: 4.475 A@12V
Remote Power LED Remote Power LED

Physical
Dimension( W x D x H ) 185 x 131 x 56.5 mm
Weight Information 1.5 Kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / Side / DIN-RAIL / VESA Mount
Physical Design
  • Fanless Design
  • Cableless Design
  • Jumper-less Design
  • Unibody Design

Reliability & Protection
Reverse Power Input Protection Yes
Over Voltage Protection
  • Protection Range: 51~58V
  • Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection 15A
MTBF 520,224 Hours - Database: Telcordia SR-332 Issue 3, Method 1, Case 3

Operating System
Windows Windows®11, Windows®10
Linux Ubuntu Desktop 22.04 LTS

Environment
Operating Temperature
  • 12W TDP Processor: -40°C to 70°C
  • 15W TDP Processor: -40°C to 60°C

* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 70°C
Relative Humidity
  • 12W TDP Processor: 95% RH @ 70˚C (Non-condensing)
  • 15W TDP Processor: 95% RH @ 60˚C (Non-condensing)
Shock, Vibration MIL-STD-810H
EMC CE, UKCA, FCC, ICES-003 Class A
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded ethernet cable.)
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Industrial Environment
EMC :
- EN/BS/IEC 61000-6-4: 2019 Class A
- EN/BS/IEC 61000-6-2: 2019
