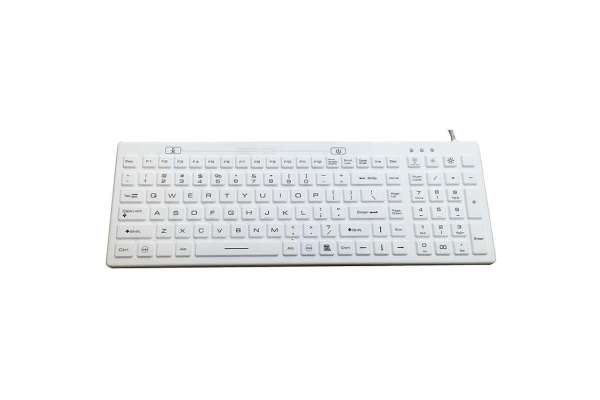

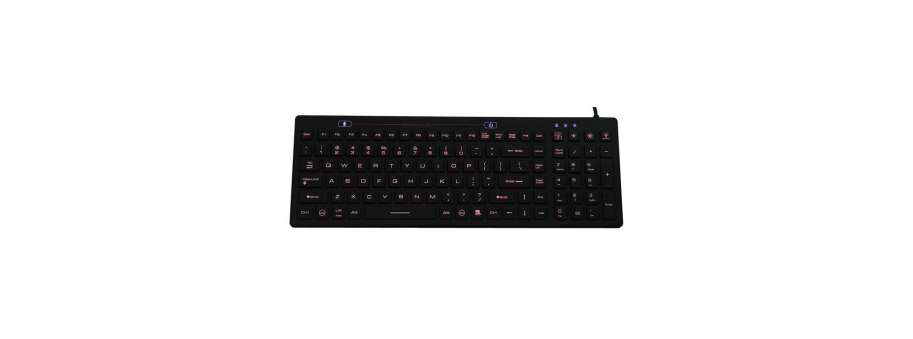

Защищенная клавиатура X-key X-KP110SD

Main feature

• LED provides well-distributed backlight for each key.
• Interchangeable 3-color backlight and 2-step adjustable brightness of backlight.
• With keyboard main power ON/OFF switch, allowing user to clean at any interval with minimal downtime.
• LED ON/OFF key, brightness increase key/reduce key.
• Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
• The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
• Special dura-coating for excellent mechanical and chemical resistance
• With firm tactile key feel, key travel 1.5mm key travel.
• Integrated numeric keypad.
• Ease of customizing with multiple languages, to accommodate foreign or custom variants.
• PS/2, USB connection cables that plug directly into computer like keyboard operations.
• Enclosure: industrial silicone with antimicrobial material.

Mechanical data

• Key: 110 keys
• Key top style: Protuberant rectangular keys with tactile feeling.
• Switch life: more than 10 million of operations.
• Cable Length: 1.5m
• G.W.: 1.0KGs
• Dimensions: 380 x 130 x 10 mm (L x W x T)

Electrical data

• Supply Voltage: +5V DC +/-5%
• Current Rating:
• PS2: keyboard with 210mA@5V (from keyboard port)
• USB: 220mA@5V (from CPU port)
• EMC Standard: It is compliance with the council EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003 EN55024: 1988+A1: 2001+A2:2003
• Emission: EN 50081-1
• Immunity: EN 50082-1
• Lifespan> 3 years
• Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
• Interface: PS2, USB available.
• OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7/10, Linux, Unix, Mac OSX

Environmental adaptability

• Operating temperature:-30^oC to +65^oC
• Storage temperature: :-40^oC to +65^oC
• Humidity: 100%
• Atmospheric pressure: 60-106Kpa
• Shock: 3x11 ms pulses of 50g on each of 3 axe
• Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
• Flammability ( Printed circuit board 94 VO, Silicone overlay: 94 hb, Interface cable: 94 v)

• RoHS Compliant, CE and FCC
• Protection Level: IP68, NEMA 6P
• Key Lifespan >10 million actuations
• MTBF >50000H
• MTTR <30min
