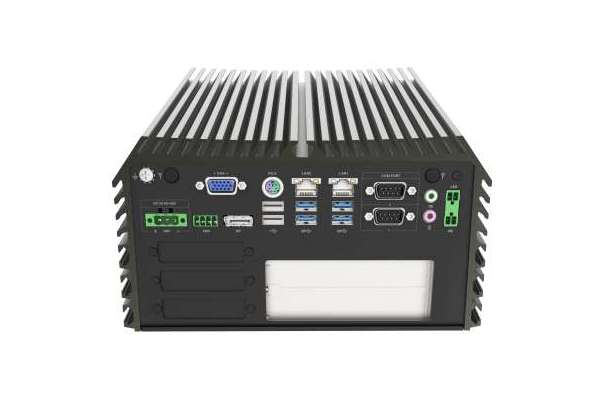

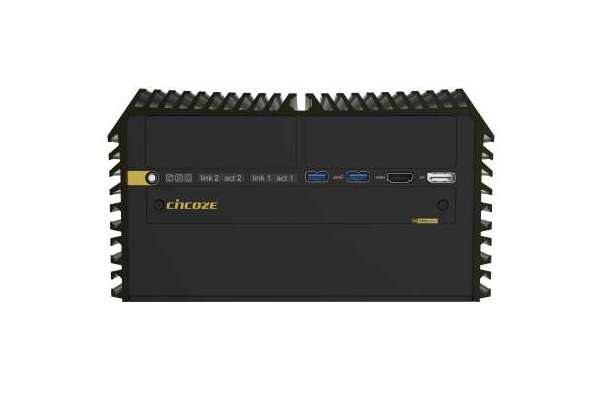

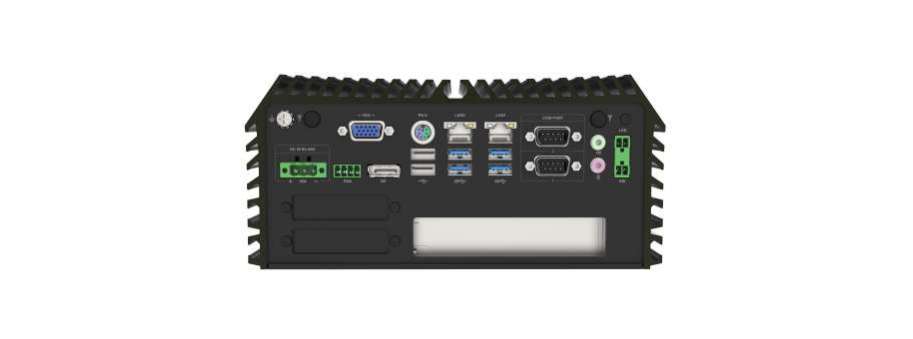

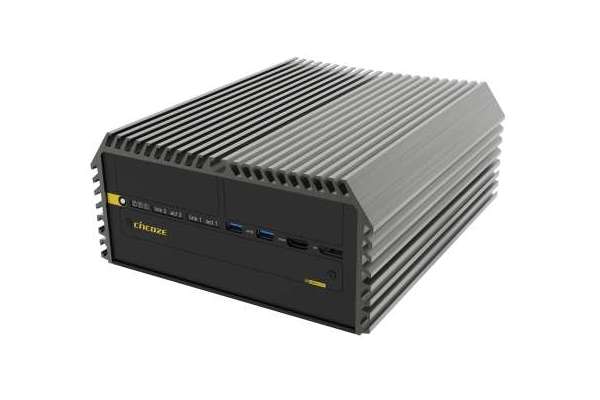

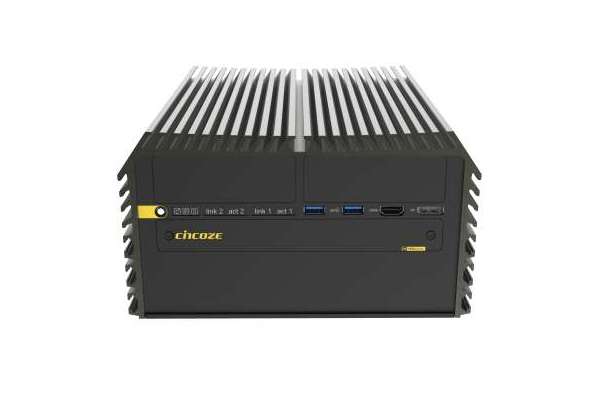

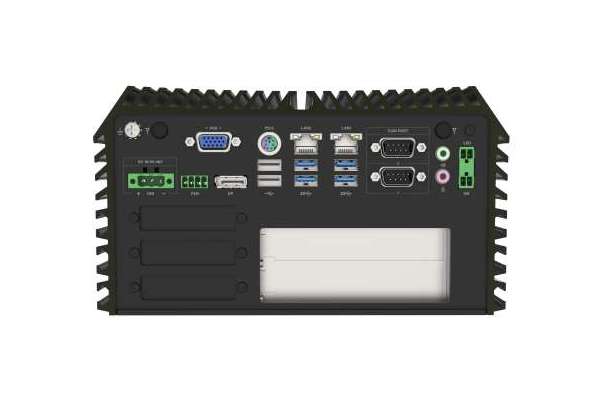

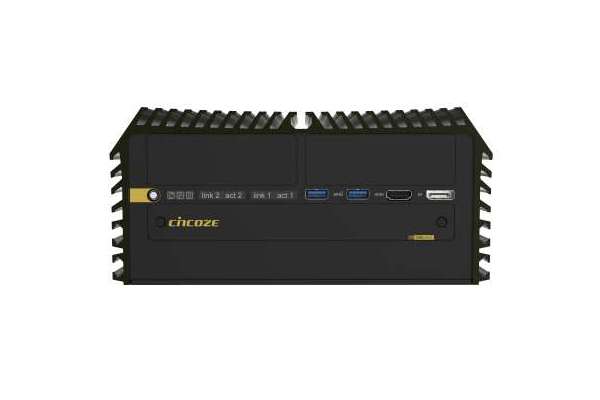

Модульный защищенный встраиваемый компьютер процессорах Intel® Xeon / Core™ 10-го поколения со слотом расширения PCI / PCIe Cincoze DS-1301

Производитель: Cincoze
Facebook Twitter Linkedin Mail
  • 10-ядерный процессор Intel® Xeon® 10-го поколения и Core™ i9 / i7 / i5 / i3 (макс. TDP 80 Вт)
  • 2x GbE LAN и дополнительно 2x 10GbE LAN
  • 2 накопителя SATA 2,5", 3 разъема mSATA, 1 ключ M.2 M для твердотельного накопителя NVMe
  • 3 полноразмерных разъема Mini PCIe, 2 разъема для SIM-карты
  • Дополнительные модули CMI для расширения ввода/вывода
  • Дополнительные модули CFM для датчиков зажигания и PoE
  • Широкий диапазон рабочих температур от - 40 ° C до 70 ° C
  • Военный стандарт MIL-STD-810G и EN50155 (только EN 50121-3-2)

DS-1301: 1x PCI/PCIe слот расширения

DS-1302: 2x PCI/PCIe слота расширения

Дополнительная информация

System
Processor

Intel® Xeon® Series Processor ( 80W / 35W ):

  • Intel® Xeon® W-1270E 8 Cores Up to 4.8 GHz, TDP 80W
  • Intel® Xeon® W-1250E 6 Cores Up to 4.7 GHz, TDP 80W
  • Intel® Xeon® W-1290TE 10 Cores Up to 4.5 GHz, TDP 35W
  • Intel® Xeon® W-1270TE 8 Cores Up to 4.4 GHz, TDP 35W
  • Intel® Xeon® W-1250TE 6 Cores Up to 3.8 GHz, TDP 35W

Intel® Core® Series Processor ( 65W / 35W ):

  • Intel® Core™ i9-10900E 10 Cores Up to 4.7 GHz, TDP 65W
  • Intel® Core™ i7-10700E 8 Cores Up to 4.5 GHz, TDP 65W
  • Intel® Core™ i5-10500E 6 Cores Up to 4.2 GHz, TDP 65W
  • Intel® Core™ i3-10100E 4 Cores Up to 3.8 GHz, TDP 65W
  • Intel® Core™ i9-10900TE 10 Cores Up to 4.5 GHz, TDP 35W
  • Intel® Core™ i7-10700TE 8 Cores Up to 4.5 GHz, TDP 35W
  • Intel® Core™ i5-10500TE 6 Cores Up to 3.7 GHz, TDP 35W
  • Intel® Core™ i3-10100TE 4 Cores Up to 3.6 GHz, TDP 35W

Intel® Pentium® Series Processor ( 58W / 35W ):

  • Intel® Pentium® G6400E 2 Cores Up to 3.8 GHz, TDP 58W
  • Intel® Pentium® G6400TE 2 Cores Up to 3.2 GHz, TDP 35W

Intel® Celeron® Series Processor ( 58W / 35W ):

  • Intel® Celeron® G5900E 2 Cores Up to 3.2 GHz, TDP 58W
  • Intel® Celeron® G5900TE 2 Cores Up to 3.0 GHz, TDP 35W
Chipset Intel® W480E Chipset
Memory
  • 2x DDR4 SO-DIMM Socket, Support Up to 64GB ( Un-buffered and non-ECC)
  • Xeon / i9 / i7 Processor Supports Up to 2933MHz
  • i5 / i3 Processor Supports Up to 2666 MHz
  • Pentium / Celeron Processor Supports Up to 2400MHz
BIOS AMI BIOS

Graphics
Graphics Engine Integrated Intel® UHD-630 Graphics
Maximum Display Output Supports Triple Independent Display
HDMI 1 x HDMI Connector (4096 x 2160@30Hz)
DP 2 x DisplayPort Connector (4096 x 2340@60Hz)
VGA 1 x VGA Connector (1920 x 1200 @60Hz)

Audio
Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1 x Line-out, Phone Jack 3.5mm
Mic-in 1 x Mic-in, Phone Jack 3.5mm

I/O
LAN

2 x GbE LAN, RJ45

  • GbE1: Intel® I219
  • GbE2: Intel® I210
COM 2 x RS-232/422/485 with Auto Flow Control ( Supports 5V / 12V ), DB9
USB
  • 2 x 10Gbps USB 3.2 Gen2, Type A
  • 4 x 5Gbps USB 3.2 Gen1, Type A
  • 2 x 480Mbps USB 2.0, Type A
PS/2 1 x PS/2, 6 Pin Mini-DIN Female Connector

Storage
SSD/HDD
  • 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 )
  • 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 )
mSATA 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
M.2 SSD 1x M.2 Key M Type 2280 Socket, Support PCIe x4 NVMe SSD or SATA SSD ( SATA 3.0 )
RAID Support RAID 0/1/5/10

Expansion
Mini PCI Express 3 x Full-size Mini-PCIe Socket
SIM Socket 2 x SIM Socket
CMI (Combined Multiple I/O) Interface
  • 2 x High Speed CMI Interface for optional CMI Module Expansion
  • 2 x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface 1 x CFM IGN Interface for optional CFM-IGN Module Expansion

Other Function
External FAN Connector 1 x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Power Ignition Sensing Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Clear CMOS Switch 1 x Clear CMOS Switch
Rest Button 1 x Rest Button
Instant Reboot Support 0.2sec Instant Reboot Technology
Watchdog Timer Software Programmable Supports 256 Levels System Reset

Power
Power Button 1 x ATX Power On/O Button
Power Mode Switch 1 x AT/ATX Mode Switch
Power Input 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off 1 x Remote Power On/O, 2-pin Terminal Block
Remote Power LED 1 x Remote Power LED, 2-pin Terminal Block
Total Power Budget 180W

Physical
Dimension ( W x D x H ) 227 x 261 x 128 mm (for 1302), 227 x 261 x 108 mm (for 1301)
Weight Information 5.4 KG ( for 1302), 5.04 KG (for 1301)
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall Mount
Physical Design
  • Fanless Design
  • Cableless Design
  • Jumper-less Design
  • Unibody Design

Reliability & Protection
Reverse Power Input Protection yes
Over Voltage Protection
  • Protection Range: 51~58V
  • Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection 15A
Surge Protection 3.84 kV (impedance 12 ohm 1.2/50us waveform)
CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF

371,393 Hours

- Database: Telcordia SR-332 Issue 3, Method 1, Case 3

Operating System
Windows Windows® 10
Linux Supports by project

Environment
Operating Temperature
  • 35W TDP Processor: -40°C to 70°C
  • 58W – 65W TDP Processor: -40~50°C (With External Fan Kit)
  • 80W TDP Processor: -40~40°C (With External Fan Kit)

* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)

* With extended temperature peripherals; Ambient with air flow

* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature - 40°C to 85°C
Relative Humidity 95%RH @ 70°C (non-Condensing)
Shock, Vibration MIL-STD-810G
EMC CE, FCC, ICES-003 Class A, EN50121-3-2 (Railway)
Safety IEC/EN 62368-1
