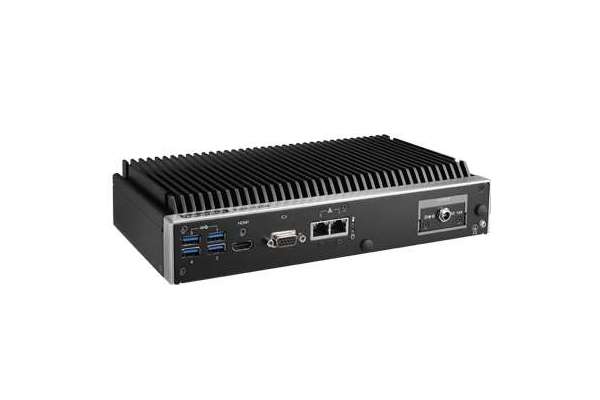

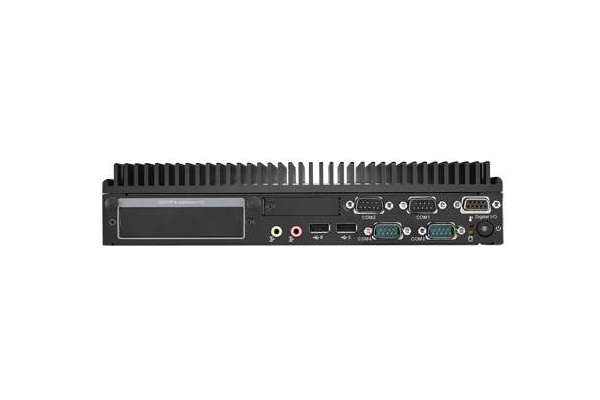

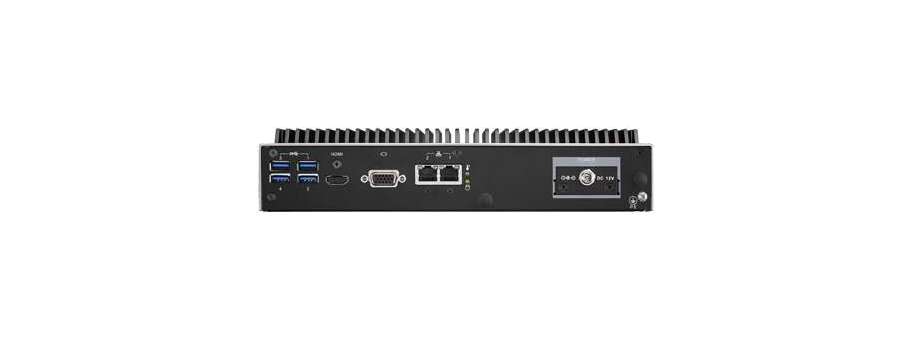

Модульный безвентиляторный ПК на Intel Core™ i3/i5/i7 6 поколения Advantech ARK-2250L
Цены и наличие
| Код товара | Описание товара | Цена с НДС | Наличие на складе |
|---|---|---|---|
| ARK-2250L-U6A2 | Компактний промисловий комп'ютер Advantech ARK-2250L, i7-6600U 2.6 GHz, DDR4 | 87 390,6 | |
| ARK-2250L-U3A2 | Компактний промисловий комп'ютер Advantech ARK-2250L, i3-6100U 2.3 GHz, DDR4 2.3GHz, 2xLAN, 4xCOM, 4xUSB, VGA + HDMI | 47 476,1 | |
| ARK-2250L-U4A2 | Компактний комп'ютер Advantech ARK-2250L, i3-7100U, DDR4 2.4GHz | 56 166,4 | |
| ARK-2250L-U6A3 | Компактний промисловий комп'ютер Advantech ARK-2250L A2 A201-1 i7-6600U DDR4 2.6GHz | 87 181,7 | |
| ARK-2250L-U3A3 | Компактний промисловий комп'ютер Advantech ARK-2250L A2 A201-1 i3-6100U w/o audio | 56 166,4 |
Актуальная замена модели ARK-2150
- Intel 6-го поколения Intel® Core™ U-серии (i3 / i5 / i7)
- VGA и HDMI двойной дисплей, опция 3-й дисплей для тройного дисплея
- Запираемый разъем питания 12 В постоянного тока
- Модуль питания 9-36 В, совместимый с заказом «все в одном»
- Диапазон рабочей температуры -20 ~ 60 °C
- 2 x полноразмерных mPCIe для модуля WIFI / сотовой связи
- 1 x полноразмерный mSATA и 1 x 2.5" SATA накопитель
- Совместимость с модулем Advantech iDoor
- Поддержка модуля Advantech ARK Plus в двухслойных конфигурациях
Дополнительная информация
| Part Number | ARK-2250L-U3A1E | ARK-2250L-U6A1E | ARK-2250L-U6A2 | ARK-2250L-U3A2 |
Processor |
||||
CPU |
Intel Core i3 6100U | Intel Core i7 6600U | Intel Core i7 6600U | Intel Core i3 6100U |
| Core Number | 2 | 2 | 2 | 2 |
| Frequency | 2.3 GHz | 2.6 GHz | 2.6 GHz | 2.3 GHz |
| L3 Cache | 3 MB | 4 MB | 3 MB | 3 MB |
| BIOS | AMI UEFI 128 Mbit | AMI UEFI 128 Mbit | AMI UEFI 128 Mbit | AMI UEFI 128 Mbit |
Memory |
||||
| Technology | DDR3L 1600 MHz | DDR3L 1600 MHz | DDR4 2133MHz SO-DIMM | DDR4 2133MHz SO-DIMM |
| Max. Capacity | 8 GB | 8 GB | 16 GB | 16 GB |
| Socket | 1 x 204-pin SO-DIMM | 1 x 204-pin SO-DIMM | 1 x 260-Pin SO-DIMM | 1 x 260-Pin SO-DIMM |
Graphics |
||||
| Controller | Intel HD Graphics 520 | Intel HD Graphics 520 | Intel HD Graphics 520 | Intel HD Graphics 520 |
| Graphic Engine | DirectX 11.3, OpenGL 4.4, and OpenCL 2.1, Full AVC/VC1/MPEG2 HW Decode | DirectX 11.3, OpenGL 4.4, and OpenCL 2.1, Full AVC/VC1/MPEG2 HW Decode | DirectX 11.3, OpenGL 4.4, and OpenCL 2.1, Full AVC/VC1/MPEG2 HW Decode | DirectX 11.3, OpenGL 4.4, and OpenCL 2.1, Full AVC/VC1/MPEG2 HW Decode |
| VGA | Up to 1920 x 1200 @ 60Hz (No hotplug support) | Up to 1920 x 1200 @ 60Hz (No hotplug support) | Up to 1920 x 1200 @ 60Hz (No hotplug support) | Up to 1920 x 1200 @ 60Hz (No hotplug support) |
| HDMI | HDMI 1.4a for HD video playback, 4096 x 2160 @ 24Hz | HDMI 1.4a for HD video playback, 4096 x 2160 @ 24Hz | HDMI 1.4a for HD video playback, 4096 x 2160 @ 24Hz | HDMI 1.4a for HD video playback, 4096 x 2160 @ 24Hz |
| Dual Display | Yes, VGA + HDMI | Yes, VGA + HDMI | Yes, VGA + HDMI | Yes, VGA + HDMI |
| Triple Display | VGA+HDMI+Optional display module: HDMI, DP and DVI-D (DVI-D only for China) | VGA+HDMI+Optional display module: HDMI, DP and DVI-D (DVI-D only for China) | VGA+HDMI+Optional display module: HDMI, DP and DVI-D (DVI-D only for China) | VGA+HDMI+Optional display module: HDMI, DP and DVI-D (DVI-D only for China) |
Ethernet |
||||
| LAN1 | 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan | 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan | 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan | 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan |
| LAN2 | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
Audio |
||||
| Interface | Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
Realtek ALC888S, High Definition Audio, Line-out, Mic-in | Realtek ALC888S, High Definition Audio, Line-out, Mic-in | Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
I/O |
||||
| Serial port | 4 x RS-232/422/485 port, support auto-flow control | 4 x RS-232/422/485 port, support auto-flow control | 4 x RS-232/422/485 port, support auto-flow control | 4 x RS-232/422/485 port, support auto-flow control |
| USB | 4 x USB 3.0, 2 x USB 2.0 | 4 x USB 3.0, 2 x USB 2.0 | 4 x USB 3.0, 2 x USB 2.0 |
4 x USB 3.0, 2 x USB 2.0 |
| Digital I/O | 8bit | 8bit | 8bit | 8bit |
Others |
||||
| Watchdog timer | 255 levels timer interval, setup by software | 255 levels timer interval, setup by software | 255 levels timer interval, setup by software | 255 levels timer interval, setup by software |
Expansion |
||||
| Mini PCIe | 2 x full size Mini PCIe with (CN15 with SIM holder) | 2 x full size Mini PCIe with (CN15 with SIM holder) | 2 x full size Mini PCIe with (CN15 with SIM holder) | 2 x full size Mini PCIe with (CN15 with SIM holder) |
| iDoor Module | 1 set (Optional) | 1 set (Optional) | 1 set (Optional) | 1 set (Optional) |
Storage |
||||
| HDD | Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s) | Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s) | Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s) | Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s) |
| SSD | 1 x full size mSATA socket (CN15, shared with mPCIe) | 1 x full size mSATA socket (CN15, shared with mPCIe) | 1 x full size mSATA socket (CN15, shared with mPCIe) | 1 x full size mSATA socket (CN15, shared with mPCIe) |
Software Support |
||||
| Microsoft Windows | Windows 10, Windows 8.1, WES7, Windows 7 | Windows 10, Windows 8.1, WES7, Windows 7 | Windows 10, Windows 8.1, WES7, Windows 7 | Windows 10, Windows 8.1, WES7, Windows 7 |
| Linux | Support by project | Support by project | Support by project | Support by project |
Power |
||||
| Power Type | ATX | ATX | ATX | ATX |
| Input Voltage | 12 VDC (9 ~ 36 VDC as option) | 12 VDC (9 ~ 36 VDC as option) | 12 VDC (9 ~ 36 VDC as option) | 12 VDC (9 ~ 36 VDC as option) |
| Power Adaptor | AC to DC, DC12V/5A, 60 W (Optional) | AC to DC, DC12V/5A, 60 W (Optional) | AC to DC, DC12V/5A, 60 W (Optional) | AC to DC, DC12V/5A, 60 W (Optional) |
| Consumption | Typical 6.92 W, Max. 41.72 W | Typical 7.96 W, Max. 43.28 W | Typical 6.92 W, Max. 41.72 W | Typical 6.92 W, Max. 41.72 W |
Mechanical |
||||
| Construction | Aluminum housing | Aluminum housing | Aluminum housing | Aluminum housing |
| Mounting | Din-Rail mounting, Desk/wall-mounting, VESA mounting | Din-Rail mounting, Desk/wall-mounting, VESA mounting | Din-Rail mounting, Desk/wall-mounting, VESA mounting | Din-Rail mounting, Desk/wall-mounting, VESA mounting |
| Dimensions | 260 x 54 x 140.2 mm (10.24" x 2.13" x 5.52") | 260 x 54 x 140.2 mm (10.24" x 2.13" x 5.52") | 260 x 54 x 140.2 mm (10.24" x 2.13" x 5.52") | 260 x 54 x 140.2 mm (10.24" x 2.13" x 5.52") |
| Weight | 2.3 kg (5.07 lb) | 2.3 kg (5.07 lb) | 2.3 kg (5.07 lb) | 2.3 kg (5.07 lb) |
Environment |
||||
| Operational Temperature | With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow | With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow | With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow | With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow |
| Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) |
-40 ~ 85° C (-40 ~ 185° F) |
| Relative Humidity | 95% @ 40° C (non-condensing) | 95% @ 40° C (non-condensing) | 95% @ 40° C (non-condensing) | 95% @ 40° C (non-condensing) |
| Vibration during Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
Certification |
||||
| EMC | CE/FCC Class B, CCC, BSMI | CE/FCC Class B, CCC, BSMI | CE/FCC Class B, CCC, BSMI | CE/FCC Class B, CCC, BSMI |
| Safety Certifications | UL, CCC, BSMI | UL, CCC, BSMI |
UL, CCC, BSMI |
UL, CCC, BSMI |
