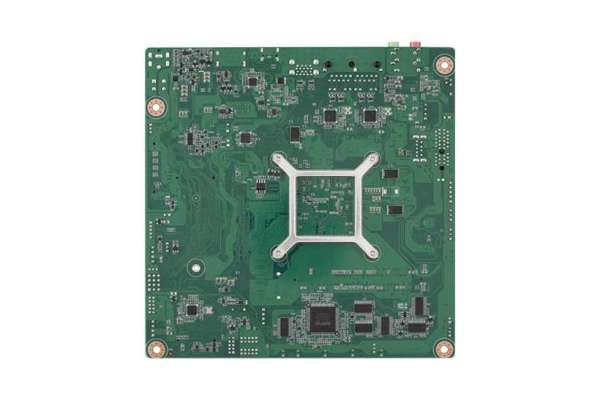

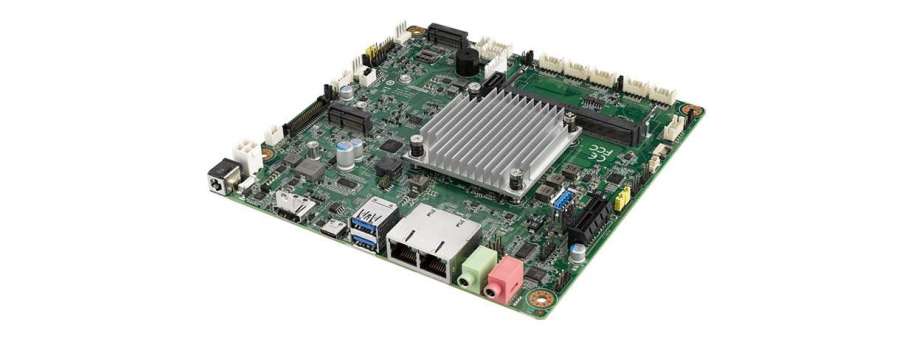

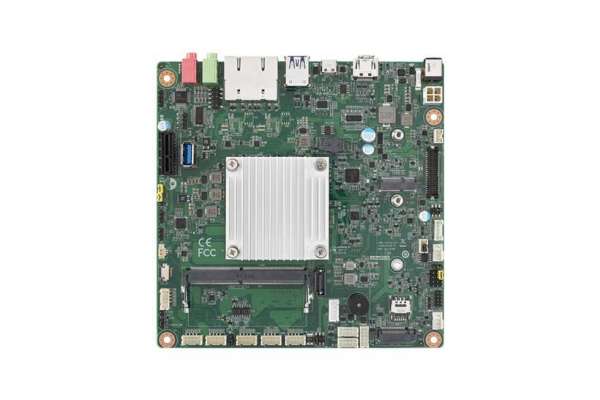

Материнская плата Mini-ITX на Intel® Core™ i3 и процессорах N-серии (кодовое название: Alder Lake-N) Advantech AIMB-219
Цены и наличие
| Код товара | Описание товара | Цена с НДС | Наличие на складе |
|---|---|---|---|
| AIMB-219NC3F-LDA1 | MiniITX ADL-N i3-N305 BGA 15W 8C | 33 164,3 | |
| AIMB-219NC3F-LDA1 | MiniITX ADL-N i3-N305 BGA 15W 8C | 33 164,3 | |
| AIMB-219N9F-LDA1 | MiniITX ADL-N N97 BGA 12W 4C | 18 890,5 | |
| AIMB-219N5L-LDA1 | MiniITX ADL-N N50 BGA 6W 2C | 15 519,4 |
- Поддержка процессоров Intel Alder Lake-N
- До 16 ГБ DDR4 3200MT/s с одним модулем SO-DIMM
- Три независимых дисплея с 1 DP, 1 HDMI, 1 LVDS (или eDP)
- Большое количество входов/выходов: 1 M.2 B-key и 1 M.2 E-key, 3 USB 3.2 Gen2x1, 5 USB 2.0, 1 USB Type-C и 6 COM
- Низкопрофильная материнская плата Mini-ITX, безвентиляторный дизайн
- Поддержка Device-On и API для встраиваемого ПО
| Processor System | ||||
| CPU (10nm) | i3-N305 | N200 | N97 | N50 |
| Core Number | 8 | 4 | 4 | 2 |
| Base frequency (GHz) | 1.8 | 1.0 | 2.0 | 1.0 |
| TDP (W) | 15 | 6 | 12 | 6 |
Дополнительная информация
Processor System |
|
| BIOS | AMI EFI 256Mb SPI |
Expansion Slot |
|
| M.2 | 1 x E-Key for wireless module (WiFi/BT), 1 x B-key for storage (SSD/LTE) |
| PCIe | 1 PCIe x1 Gen3 (8GT/s) |
Memory |
|
| Technology | Single channel DDR4 3200 MT/s (non-ECC) |
| Max. Capacity | 16 GB |
| Socket | 1 x 260pin SO-DIMM |
Graphics |
|
| Controller | Intel® UHD Graphics |
| HDMI | 1 x HDMI 2.1 TMDS, up to 4Kx2K @ 60 Hz (refer to Ordering Information) |
| DP | 1 x DP 1.4a, up to 4096x2304 @ 60 Hz (via USB Type-C) |
| LVDS | 1 (default, pin header, supports dual channel 18/24-bit, up to 1920 x 1200 @ 60 Hz) |
| eDP | 1 (option, pin header, up to 4096 x 2304 @ 60 Hz) |
| Multi Displays | Triple displays |
Network |
|
| Ethernet | 10/100/1000/2500 Mbps |
| Controller | RTL8111K (1GbE) or RTL8125BG (2.5GbE), refer to Ordering Information |
| Connector | 2 x RJ45 |
Audio |
|
| Codec | Realtek ALC888S, High Definition Audio (HD), Line out, Mic-in |
| Amplifier | Yes, 6W |
SATA |
|
| Max data transfer rate | 6.0 Gb/s |
| Channel | 1 x SATAIII |

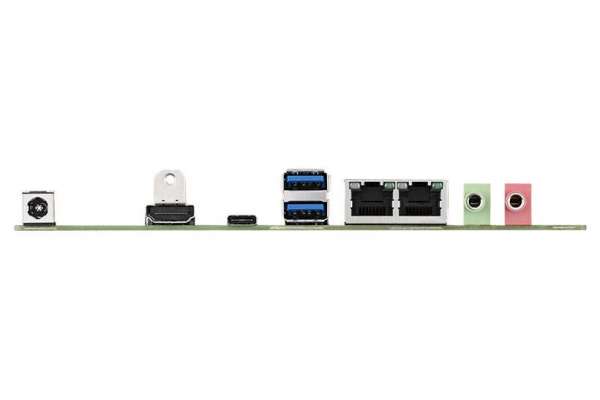

Rear I/O |
|
| DP (via USB Type-C) | 1 |
| HDMI | 1 |
| Ethernet | 2 |
| USB | 2 x USB3.2 Gen2x1 + 1 x USB3.2 Gen2x1 Type-C |
| Audio | 1 (Line-Out, Mic-In) |
Internal Connector |
|
| USB | 5 x USB2.0 + 1 x USB3.2 Gen2x1(Internal vertical Type-A) |
| LVDS/eDP | 1 (eDP colay with LVDS) |
| Serial |
|
| SATA | 1 x SATAIII 6.0 Gb/s |
| M.2 |
|
| GPIO | 8-bit |
Watchdog Timer |
|
| Output | System reset |
| Interval | Programmable 1 ~ 255 (second or minute) |
Power Requirements |
|
| Input voltage | 12V DC-in |
| Connector | DC Jack. Internal 4-pin ATX |
| Power consumption | Configuration Intel Core i3-N305, 1pcs 16 GB DDR4 3200MT/s SO-DIMM |
| Max. - 39.7 W | |
| Typical - 26.4 W | |
Environment |
|
| Temperature | Operating: 0 ~ 60 °C (32 ~ 140 °F) |
| Storage | Non-Operating: -40 ~ 85 °C (-40 ~ 185 °F) |
Physical Characteristics |
|
| Dimensions | 170 mm x 170 mm (6.69" x 6.69") |
