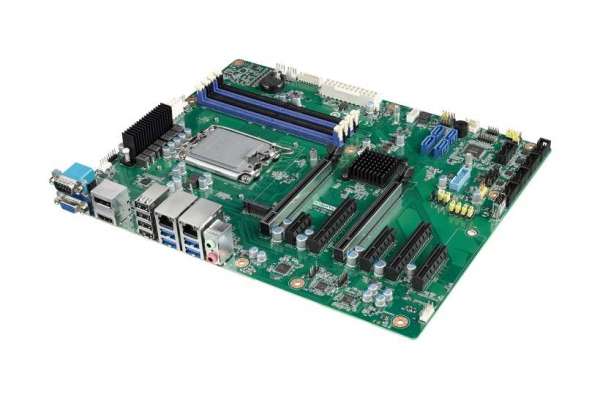

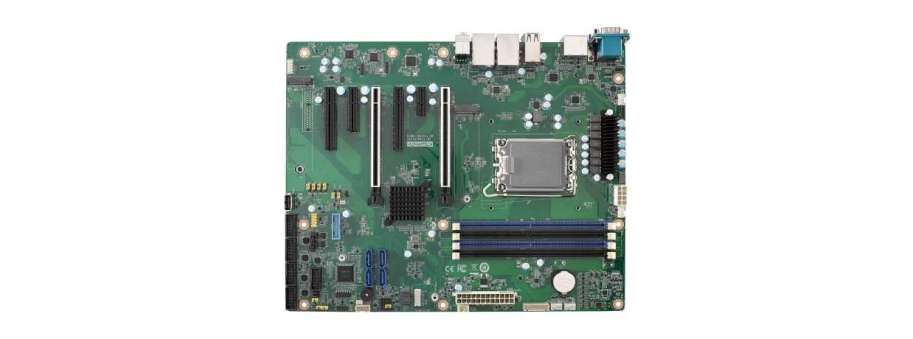

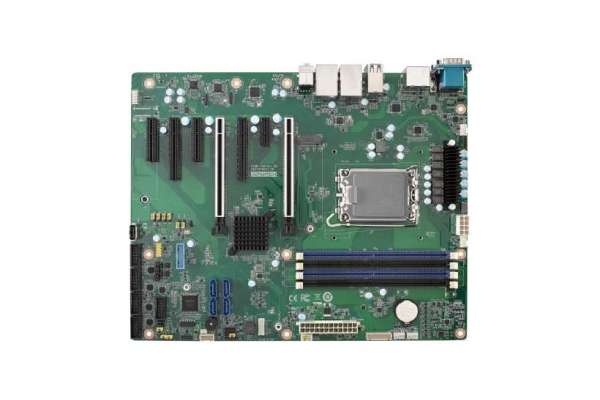

Промышленная материнская плата LGA1700 12-го/13-го/14-го поколения Intel® Core™ i9/i7/i5/i3 ATX з DP/HDMI/VGA, DDR5, USB 3.2, M.2 Advantech AIMB-788E
Цены и наличие
| Код товара | Описание товара | Цена с НДС | Наличие на складе |
|---|---|---|---|
| AIMB-788E-00A1 | LGA1700 ATX Q670E/2PCIex16/7PCIe/DDR5/iBMC/HDMI | 30 731,8 | |
| AIMB-788E-10A1 | LGA1700 ATX Q670E/2PCIex16/2M.2/DDR5/iBMC/HDMI | 30 731,8 | |
| AIMB-788E-0RA1 | LGA1700 ATX R680E/2PCIex16/7PCIe/DDR5/iBMC/HDMI | 31 609,0 |
- Процессор Intel® 12-го/13-го/14-го поколения Core™ i9/i7/i5/i3 и Pentium®/Celeron® с чипсетом Q670E/R680E
- Четыре разъема DIMM до 192 ГБ DDR5 5600 до 192 ГБ
- Тройной дисплей DP/HDMI/VGA и двойная локальная сеть GbE
- M.2, SATA RAID 0, 1, 5, 10, USB 3.2 Gen 1
- Решение Advantech iBMC для удаленного внеполосного управления питанием на DeviceOn Note
Примечание 1: платформа Legacy не поддерживается.
Примечание 2: Для включения технологий TPM требуется модуль dTPM 2.0.
Примечание 3: Технология Intel® Platform Trust (Intel® PTT) готова для Windows 11.
| 14th Generation Processors | |||||||||||||
| CPU | I9-14900 | I9-14900T | I7-14700 | I7-14700T | I5-14500 | I5-14500T | I5-14400 | I5-14400T | I5-14400F | I3-14100 | I3-14100T | 300 | 300T |
| P-core Base Frequency | 2.0 GHz | 1.1 GHz | 2.1 GHz | 1.3GHz | 2.6 GHz | 1.7 GHz | 2.5 GHz | 1.5 GHz | 2.5 GHz | 3.5 GHz | 2.7 GHz | 3.9 GHz | 3.4 GHz |
| L3 Cache | 36 MB | 36 MB | 33 MB | 33 MB | 24 MB | 24 MB | 20 MB | 20 MB | 20 MB | 12 MB | 12 MB | 6 MB | 6 MB |
| Cores | 24 | 24 | 20 | 20 | 14 | 14 | 10 | 10 | 10 | 4 | 4 | 2 | 2 |
| Processor Base Power | 65 W | 35 W | 65 W | 35 W | 65 W | 35 W | 65 W | 35 W | 65 W | 60 W | 35 W | 46 W | 35 W |
| 13th Generation Processors | |||||||||||||
| CPU | i9- 13900(E) | i9- 13900TE | i7- 13700(E) | i7- 13700T(E) | i5- 13500(E) | i5- 13500T(E) | i5- 13400(E) | i3- 13100(E) | i3- 13100T(E) | ||||
| P-core Base Frequency | 2.0 GHz | 1.1 GHz | 2.1 GHz | 1.4 GHz | 2.5 GHz | 1.6 GHz | 2.5 GHz | 3.4 GHz | 2.5 GHz | ||||
| L3 Cache | 36 MB | 36 MB | 30 MB | 30 MB | 24 MB | 24 MB | 20MB | 12 MB | 12 MB | ||||
| Cores | 24 | 24 | 16 | 16 | 14 | 14 | 10 | 4 | 4 | ||||
| Processor Base Power | 65 W | 35 W | 65 W | 35 W | 65 W | 35 W | 65 W | 60 W | 35 W | ||||
| 12th Generation Processors | |||||||||||||
| CPU | i9- 12900(E) | i9- 12900TE | i7- 12700(E) | i7- 12700TE | i5- 12500(E) | i5- 12400 | i5- 12500TE | i3- 12100(E) | i3- 12100TE | Pentium G7400E | Pentium G7400TE | Celeron G6900E | Celeron G6900TE |
| P-core Base Frequency | 2.4 GHz | 1.1 GHz | 2.1 GHz | 1.4 GHz | 3.0 GHz | 2.5 GHz | 1.9 GHz | 3.3 GHz | 2.1 GHz | 3.6 GHz | 3.0 GHz | 3.0 GHz | 2.4 GHz |
| L3 Cache | 30 MB | 30 MB | 25 MB | 25 MB | 18 MB | 18 MB | 18 MB | 12 MB | 12 MB | 6 MB | 6 MB | 4 MB | 4 MB |
| Cores | 16 | 16 | 12 | 12 | 6 | 6 | 6 | 4 | 4 | 2 | 2 | 2 | 2 |
| Processor Base Power | 65 W | 35 W | 65 W | 35 W | 65 W | 65 W | 35 W | 60 W | 35 W | 46 W | 35 W | 46 W | 35 W |
Дополнительная информация
Processor System |
|
| Socket | LGA 1700 |
| Chipset | Q670E/R680E |
| BIOS | AMI 256Mbit SPI Flash |
Expansion Slot |
|
| PCIe x1 | 1 (Gen 4) |
| PCIe x4 | 2 (1 x Gen 4 x4 link, 1 x Gen 3 x4 link); 1 (AIMB-788E-10 version, 1 x Gen 4 x4 link) |
| PCIe x8 | 2 (1 x Gen 4 x4 link, 1 x Gen 3 x4 link) |
| PCIe x16* | 2 (1 x Gen 5 x8 link, 1 x Gen 4 x8 link) |
Memory |
|
| Technology | Dual Channel DDR5 5600 Non-ECC UDIMM; Dual Channel DDR5 5600 ECC UDIMM (AIMB-788E-0R version) |
| Max Capacity | 192 GB |
| Sockets | 4 x 288-pin DIMM |
Graphics |
|
| Controller | Chipset integrated Intel UHD Graphics |
| VRAM | Shares system memory is subjected to OS |
Ethernet |
|
| Interface | 10/100/1000 Mbps |
| Controller | GbE LAN1: Intel I219-LM (PHY); GbE LAN2: Intel I210-AT |
| Connector | 2 x RJ-45 |
SATA |
|
| Channel | 4 |
| RAID | 0, 1, 5, 10 |
