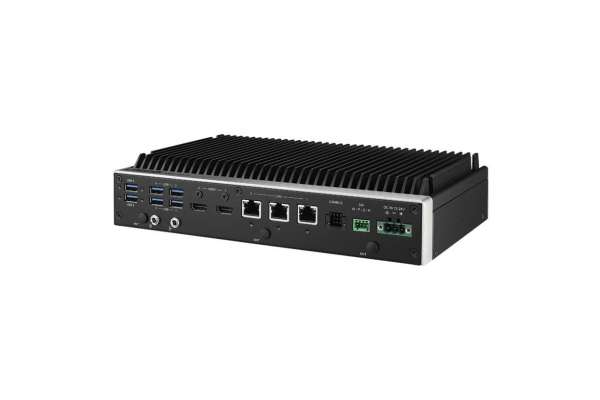

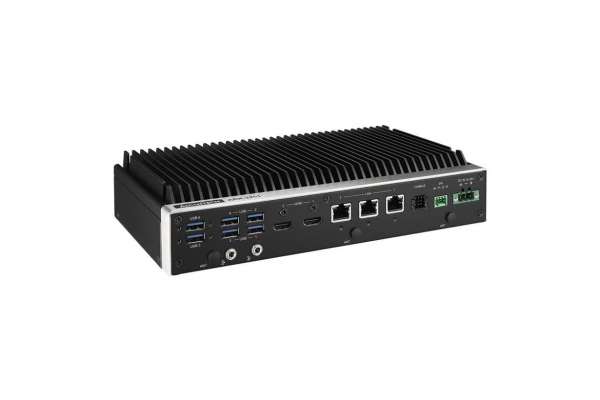

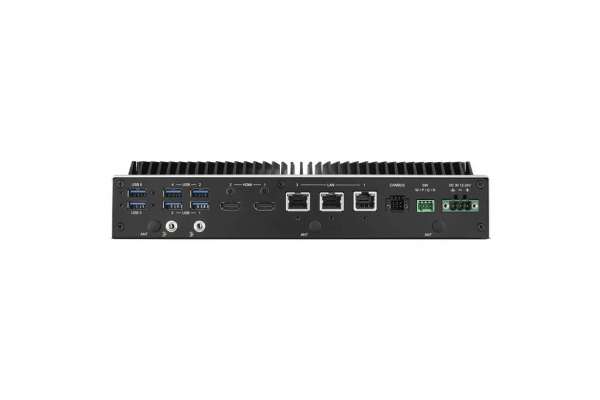

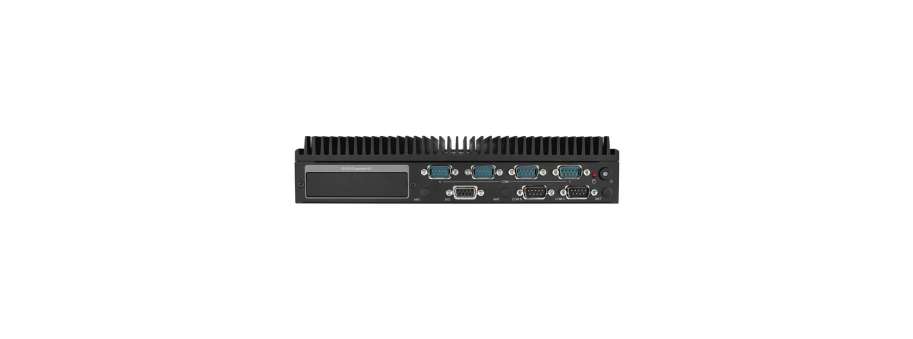

Модульный безвентиляторный блочный ПК Intel 13-го поколения Core i3/i5/i7 с 3x GbE, 6x USB (2x независимых), 6x COM, 2x CANbus, Dual HDMI Advantech ARK-2251
Цены и наличие
| Код товара | Описание товара | Цена с НДС | Наличие на складе |
|---|---|---|---|
| ARK-2251-S2A1 | Компактний промисловий комп'ютер Advantech ARK-2251, Intel Rapter Lake i3 1315UE 1.2G +3GbE+6USB+6COM | 67 400,7 | |
| ARK-2251-S2A1U | Компактний промисловий комп'ютер Advantech ARK-2251, Intel Rapter Lake i3 1315UE 1.2G +3GbE+6USB+6COM | 71 692,1 | |
| ARK-2251-S3A1 | Компактний промисловий комп'ютер Advantech ARK-2251, i5-1335UE, DDR5 4800 MHz, 3xLAN, 6xCOM, 6xUSB, 2хHDMI, 12-24 VDC | 78 556,0 | |
| ARK-2251-S3A1U | Компактний промисловий комп'ютер Advantech ARK-2251, i5-1335UE, DDR5 4800 MHz, 3xLAN, 6xCOM, 6xUSB, 2хHDMI, 12-24 VDC, made in Taiwan | 82 846,5 | |
| ARK-2251-S7A1 | Компактний промисловий комп'ютер Advantech ARK-2251, Intel Rapter Lake i7 1365UE 1.7G +3GbE+6USB+6COM | 100 759,0 |
- Процессор Intel® 13-го поколения Core™ i3/i5/i7
- Поддержка двухканальной памяти DDR5 SODIMM объемом до 64 ГБ
- Поддержка NVMe с PCIe x4
- 3x GbE, 6x USB (2x независимых), 6x COM, 2x CANbus, Dual HDMI
- Интерфейсы M.2 E key и mPCIe поддерживают установку беспроводных модулей
- Поддержка 11x iDoors для расширения ввода/вывода
- Дополнительный модуль PoE с широким диапазоном входного напряжения 12-24 В
- Рабочая температура -20-60 °C
- Поддержка WISE-DeviceOn для быстрого развертывания ИИ
| Processor System | |||
| CPU | Core i3-1315UE | Core i5-1335UE | Core i7-1365UE |
| Frequency | 1.2 GHz | 1.3 GHz | 1.7 GHz |
| Core Number | 2P+4E | 2P+8E | 2P+8E |
| BIOS | AMI EFI 256Mbit | AMI EFI 256Mbit | AMI EFI 256Mbit |
Дополнительная информация
Memory |
|
| Technology | DDR5 4800 MHz |
| Max capacity | 64GB |
| Socket | 2x 262-pin SODIMM (no support ECC) |
Graphics |
|
| Chipset | Intel® UHD Graphics for 13th Gen Intel® Processors / Intel® Iris® Xe Graphics eligible |
| HDMI | Up to 4096 x 2160 @ 60Hz |
| Dual Display | 2x HDMI |
Ethernet |
|
| LAN1 | 10/100/1000 Mbps Intel i219 GbE, support Wake On LAN |
| LAN2 | 10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN (optional PoE module) |
| LAN3 | 10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN (optional PoE module) |
Audio |
|
| Interface | Realtek ALC888S, High Definition Audio. Line-out, Mic-in |
I/O Interface |
|
| Serial Ports | 6x RS-232/422/485 |
| USB Ports | 6x USB3.1 (2x are independent), 1 x internal USB2.0 for security dongle |
| GPIO | 8-bit Programmable DIO |
| CANBus | 2 |
Expansion |
|
| Mini PCIe | 1x Full-size mPCIe |
| M.2 | 1x M.2 2230 (E Key) and 1x M.2 2280 (M Key) |
Storage |
|
| NVMe | 1x M.2 M Key supporting NVMe (PCIe Gen3x4) #1 |
| mSATA | shared with mPCIe |
Other |
|
| WatchDog Timer | 255 levels timer interval, setup by software |
| TPM | TPM 2.0 (Optional by AMO-I029) |
Software Support |
|
| Microsoft Windows | Windows 10 Enterprise |
| Linux | Ubuntu 22.04, others by project support |
Power Requirement |
|
| Power Type | ATX/AT |
| Power Input Voltage | 12-24 VDC |
Power Consumption |
|
| Typical (OS idle mode) | 19.05W (for Core i3-1315UE) / 19.30W (for Core i5-1335UE) / 19.47W (for Core i7-1365UE) |
| Max. (Full loading) | 38.21W / 41.23W / 42.13W |
Mechanical |
|
| Construction | Aluminum housing |
| Mounting | Wall mounting |
| Dimensions (W x H x D) | 260 x 54 x 140.2 mm (10.24" x 2.13" x 5.52") |
| Weight | 2.3kg (5.06lb) |
Environment |
|
| Operating Temperature | With extended temp. peripherals: -20 ~ 60° C with 0.7m/s air flow (only up to 40°C when using with the adapter) |
| Storage Temperature | -40 ~ 85 °C (-40 ~ 185°F) |
| Relative Humidity | 95% @ 40 °C (non-condensing) |
| Vibration during Operation | 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis |
| Shock during Operation | 30 G, IEC-60068-2-27, half sine, 11 ms duration |
| EMC | CE, FCC class B, CCC, BSMI |
| Safety | CB, UL, CCC, BSMI |
