Промышленный LTE шлюз 4G / LTE (Cat 4), 3G, 2G с RS232 / RS485 Teltonika-TRB245
Цены и наличие
| Код товара | Описание товара | Цена с НДС | Наличие на складе |
|---|---|---|---|
| TRB245000000 | Teltonika TRB245 - промисловий шлюз LTE. 2 SIM, 1 RS232, 1 RS485, 3 DIO. | 10 058,5 | |
| Teltonika RMS | Програма віддаленого керування обладнанням «Teltonika RMS» (ліцензія на один місяць для одного пристрою). | 186,6 | Доступно |
| 088-00270 | Комплект кріплення на DIN-рейку PR5MEC11 (для Teltonika RUT) | 210,5 |

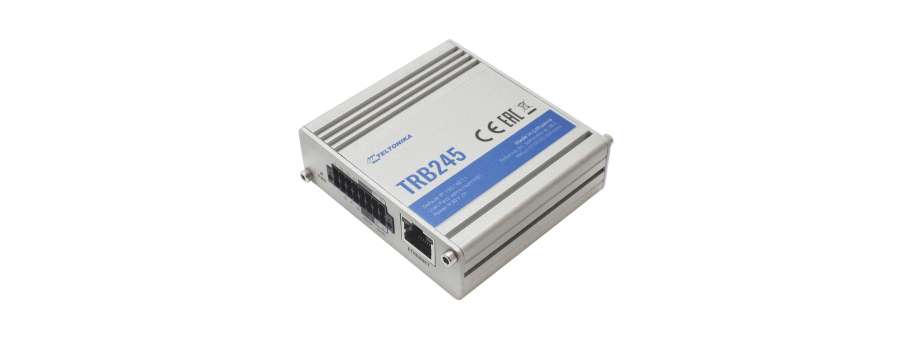

TRB245 - это компактный промышленный шлюз 4G (LTE), оснащенный портом Ethernet, блоком разъемов, который включает контакты для ввода/вывода, RS232, RS485, GPS и программное обеспечение RutOS для продвинутых сетевых решений.
- Промышленный шлюз LTE Cat 4 включает в себя все основные функции для любой отрасли: быстрое и надежное подключение к Интернету, сочетание Ethernet и последовательной связи, безопасный разъем питания, порты ввода / вывода и услуги синхронизации времени.
- TRB245 может использоваться для интеграции современного и устаревшего промышленного оборудования в одно решение через интерфейсы RS232 или RS485.
- Широкий спектр программных функций, таких как управление SMS, Firewall, OpenVPN, IPSec, RMS гарантирует безопасный доступ к данным
- Функциональность двух SIM-карт с автоматическим переключением при отказе и резервной глобальной сетью обеспечивает стабильное соединение даже в случае потери основного соединения.
Дополнительная информация
Mobile |
|
| Mobile module | 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
| SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, on roaming, no network, network denied, data connection fail |
| Status | Signal strength, Connected band, SINR, RSRP, RSRQ, Bytes sent/received |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS (planned), SMS to EMAIL (planned), SMS to HTTP (planned), SMS to SMS (planned), scheduled SMS (planned), SMS autoreply (planned) |
| Black/White list (planned) | Operator black/white list |
| Multiple PDN (planned) | Possibility to use different PDNs for multiple network access and services |
| Band management | Used band status display, Band lock (planned) |
| APN | Auto APN |
Ethernet |
|
| LAN | 1 x LAN port 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
Network |
|
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2) (planned) |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPP (planned), SSH, DHCP, Telnet, MQTT (planned), Wake On Lan (WOL) (planned) |
| VoIP passthrough support (planned) | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules |
| QoS / Smart Queue Management (SQM) (planned) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| DDNS (planned) | Supported >25 service providers, others can be configured manually |
| SSHFS (planned) | Possibility to mount remote file system via SSH protocol |
System characteristics |
|
| CPU | Qualcomm QCA9531, MIPS 24kc, 650 MHz |
| RAM | 64 MB, DDR2 |
| Flash memory | 16MB SPI Flash (4 MB available for user) |
Input/output |
|
| Configurable I/O | 3 x Configurable Inputs/Outputs. Digital input 0 - 6 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA |
| Analog input | 1 x Analog input (0 - 30 V) |
| Events (planned) | SMS, Email |
| Output control | HTTP POST/GET, Schedule |
| I/O juggler (planned) | Allows to set certain I/O conditions to initiate event |
Serial |
|
| RS232 | Terminal block connector: TX, RX, RTS, CTS |
| RS485 | Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface) |
| Supported baud rates | From 300 to 3000000 |
| Number of data bits | 7 or 8 |
| Number of stop bits | 1 or 2 |
| Parity | None, Even, Odd |
| Flow control | None, RTS/CTS (only for RS232 interface), Xon/Xoff |
Power |
|

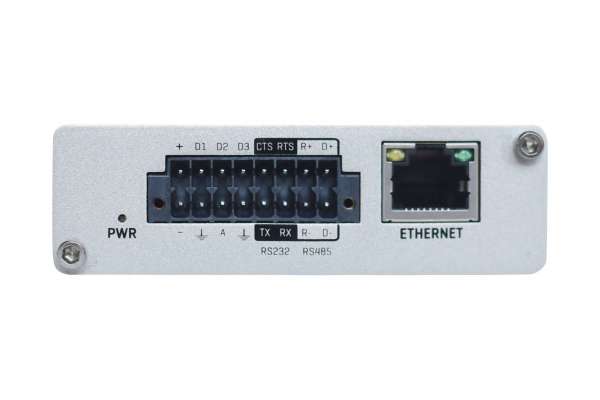

| Connector | 2 pins in 16 pin industrial terminal block |
| Input voltage range | 9 – 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 µs max |
| Power consumption | Idle: <1.2 W, Max: <5 W |
Physical interfaces |
|
| Ethernet | 1 x RJ45 port, 10/100 Mbps |
| I/O’s | 3 x Configurable I/O, 1 x Analog input in 16 pin terminal block |
| Status LEDs | 3 x connection status LEDs, 3 x connection strength LEDs, 1 x power LED, 1 x Eth port status LED |
| SIM | 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, double stacked SIM tray |
| Power | 2 pins in 16 pin terminal block |

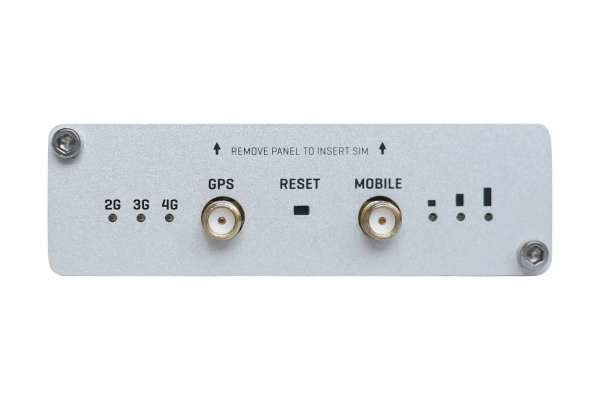

| Antennas | 1 x SMA connector for LTE, 1 x SMA connector for GNSS |
| RS232 | 4 pins in 16 pin terminal block (TX, RX, RTS, CTS) |
| RS485 | 4 pins in 16 pin terminal block (D+, D-, R+, R-) |
| Reset | Reboot, restore to user default (planned), restore to factory defaults |
Physical specification |
|

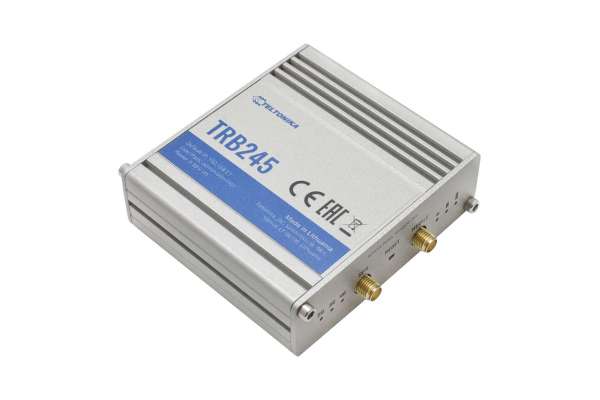

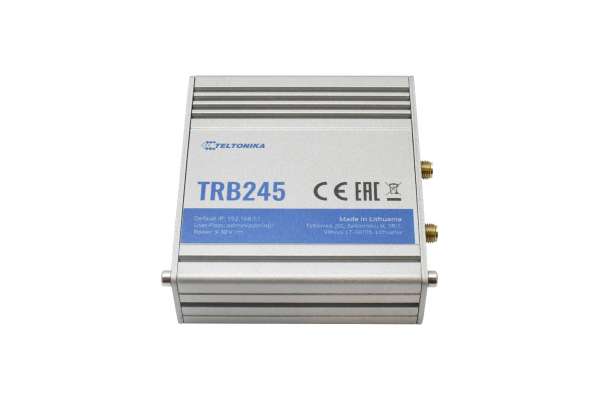

| Casing material | Aluminium housing with DIN rail mounting option |
| Dimensions | 74 x 83 x 25 mm (L x W x H) |
| Weight | 165 g |
| Mounting options | DIN rail, wall mounting (additional kits needed), flat surface placement |
Operating environment |
|
| Operating temperature | -40 ℃ to 75 ℃ |
| Operating humidity | 10% to 90% non-condensing |
