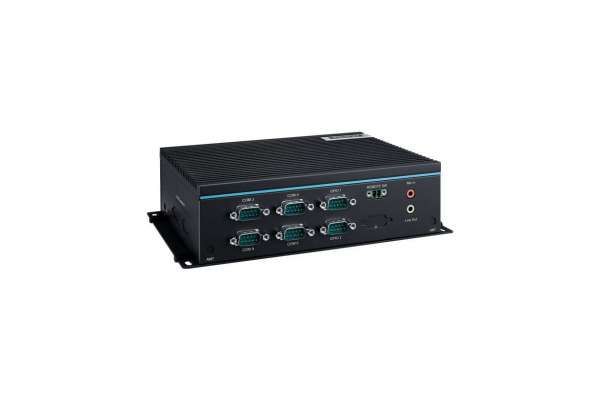

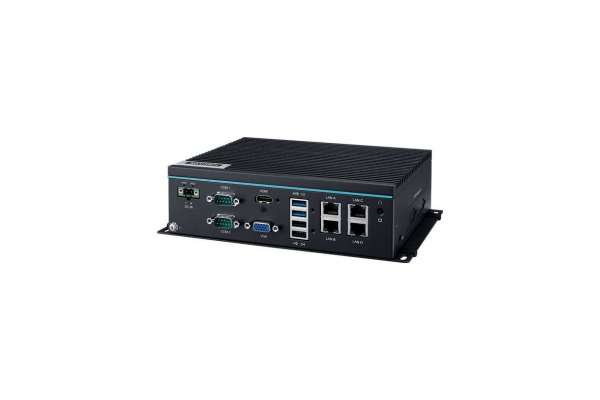

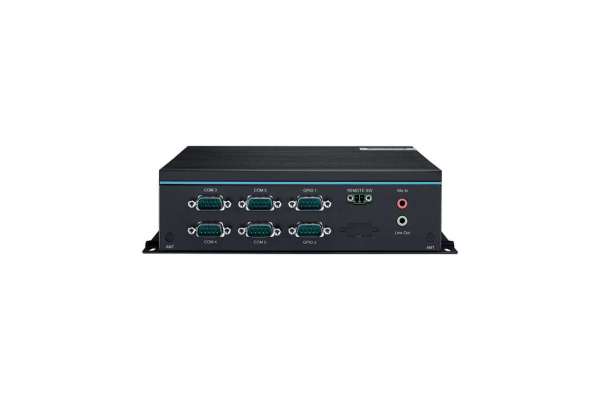

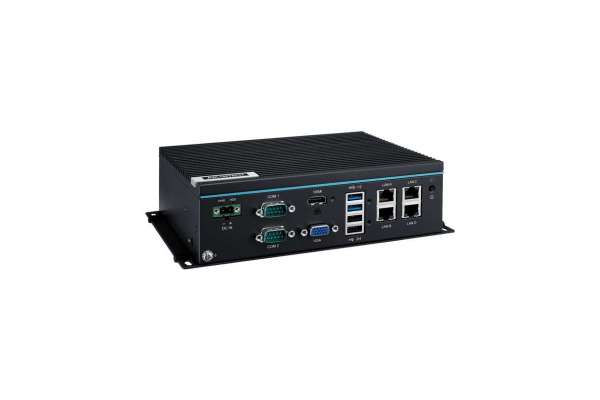

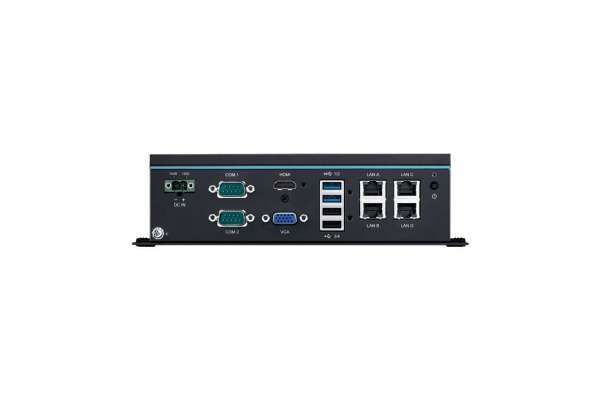

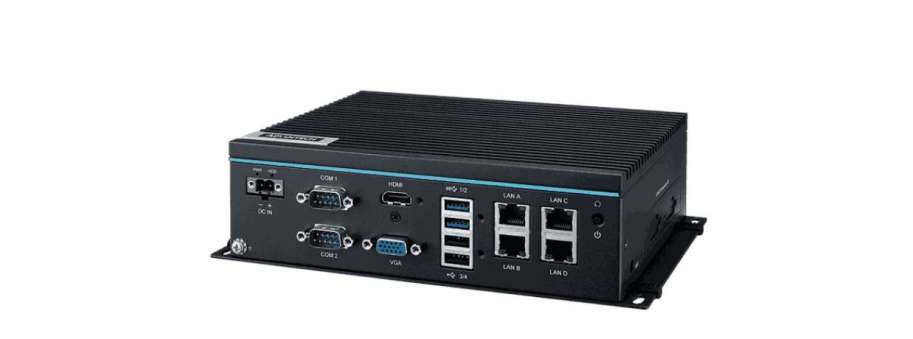

ПК для граничных вычислений на Intel® Alder Lake-N N97 с 4 x LAN, 6 x COM, 4 x USB, 1 x HDMI, 1 x VGA Advantech UNO-247 V2
- Процессор Intel® Alder Lake-N N97
- Гибкая конструкция расширения iDoor с достаточным количеством портов ввода/вывода
- 4 x GbE, 2 x USB3.2, 2 x USB2.0, 2 x RS232/422/485, 4 x RS485, 1 x HDMI, 1 x VGA
- Компактный размер и безвентиляторная конструкция
- Дополнительная связь 4G/GPS/GPRS/Wi-Fi
- Клеммная колодка для возможности подключения
- Оптимизированная механическая конструкция для облегчения замены оперативной памяти
- Поддержка Win11 IoT и Ubuntu 22.04
Дополнительная информация
General |
|
| Certification | CE, FCC, UL, CCC, BSMI |
| Dimensions (W x D x H) | 200 x 140 x 60 mm |
| Form Factor | Regular Size |
| Enclosure | Aluminum Housing |
| Mounting | Stand Mount, DIN-Rail (Optional) |
| Weight (Net) | 1.2kg (2.6lbs) |
| Power Requirement | 24VDC (12-24VDC) |
| Power Consumption | 13W (Typical), 22W (Max) |
| OS Support | Win11 LTSC IoT, Advlinux |
System Hardware |
|
| BIOS | AMI UEFI64 Mbit |
| Watchdog Timer | Programmable 255 levels timer interval, from 1 to 255 sec |
| TPM | Optional |
| Processor | Intel® Alder Lake-N N97 Max at 3.6GHz |
| Memory | 1 x slot (DDR5 SO-DIMM support up to 16GB) |
| Graphics Engine | Intel UHD Graphics |
| Ethernet | 10/100/1000 Mbps Realtek RTL8111K-CG |
| LED Indicators | LEDs for Power and HDD |
| Storage |
1 x mSATA (full size) or 1 x M.2 B key 2242 SATA 1 x drive bay for SATA 2.5" SSD *Default storage setting is mSATA *Please note that iDoor module cannot be applied if a 2.5"SSD is installed *If user goes with 2.5"SSD, SATA cable is required (see below optional accessory) and jumper setting is also required to adjust (Check User Manual) |
| Expansion |
|
I/O Interfaces |
|
| Serial Ports |
|
| LAN Ports | 4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000BASE-T Fast Ethernet |
| USB Ports | 2 x USB 3.2, 2 x USB 2.0 |
| Displays |
|
| Power Connector | 1 x Terminal Block, 1 x Remote Switch |
| Audio | 1 x Line out, 1 x Mic in |
Environment |
|
| Operating Temperature | -20 ~ 60°C with 0.7m/s air flow (With extended temperature peripherals, refer to optional memory list on page 2) |
| Storage Temperature | -40 ~ 85°C ( -40 ~ 185°F) |
| Relative Humidity | Operating, 95% RH @ 40°C, non-condensing Non-operating, 95%RH @ 60°C, non-condensing |
| Shock Protection | Operating, IEC 60068-2-27, 50G, half sine, 11ms |
| Vibration Protection | Operating, IEC 60068-2-64, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis |
