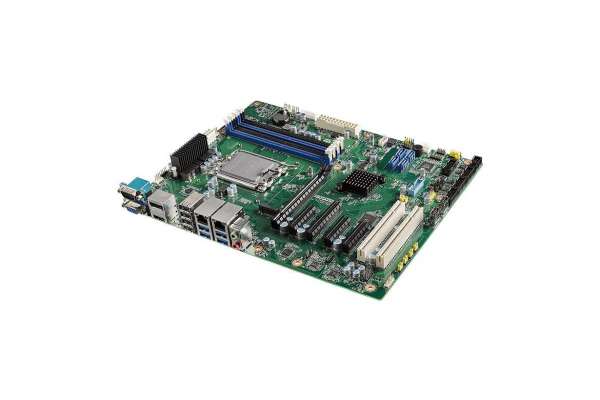

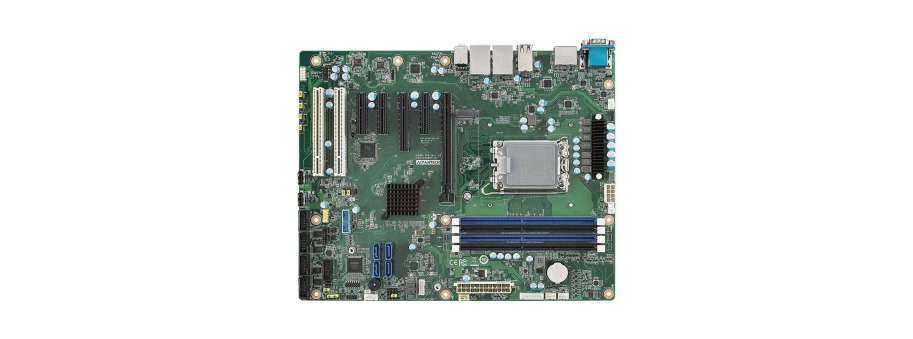

Материнская плата LGA1700 Intel® Core™ i9/i7/i5/i3 12-го поколения ATX с DP/HDMI/VGA, DDR4, USB 3.2, M.2 Advantech AIMB-788
Цены и наличие
| Код товара | Описание товара | Цена с НДС | Наличие на складе |
|---|---|---|---|
| AIMB-788G2-00A1 | Промислова материнська плата Advantech AIMB-788G2 LGA1700 ATX Q670E/iBMC/DP/HDMI/2GbE/M.2/14USB | 30 731,8 |
Материнская плата LGA1700 Intel® Core™ i9/i7/i5/i3 12-го поколения ATX с DP/HDMI/VGA, DDR4, USB 3.2, M.2
- Процессоры Intel® Core™ i9/i7/i5/i3 и Pentium®/Celeron® 12-го поколения с набором микросхем Q670E
- Четыре разъема DIMM до 128 ГБ DDR4 3200
- Три варианта подключения дисплея DP/HDMI/VGA и двойная локальная сеть GbE
- M.2, SATA RAID 0, 1, 5, 10, USB 3.2 (2-го поколения)
- Поддерживает технологии Intel vPro, AMT и TPM.
- Решение Advantech iBMC для удаленного внеполосного управления питанием на DeviceOn
- Примечание 1. Для включения технологий Intel vPro и TPM требуется модуль TPM.
- Примечание 2. Устаревшая платформа не поддерживается.
Processor System |
|||||||||||||
| CPU | i9- 12900(E) | i9- 12900TE | i7- 12700(E) | i7- 12700TE | i5- 12500(E) | i5-12400 | i5- 12500TE | i3- 12100(E) | i3- 12100TE | Pentium G7400E | Pentium G7400TE | Celeron G6900E | Celeron G6900TE |
| P-core Base Frequency | 2.4 GHz | 1.1 GHz | 2.1 GHz | 1.4 GHz | 3.0 GHz | 2.5 GHz | 1.9 GHz | 3.3 GHz | 2.1 GHz | 3.6 GHz | 3.0 GHz | 3.0 GHz | 2.4 GHz |
| L3 Cache | 30 MB | 30 MB | 25 MB | 25 MB | 18 MB | 18 MB | 18 MB | 12 MB | 12 MB | 6 MB | 6 MB | 4 MB | 4 MB |
| Cores | 16 | 16 | 12 | 12 | 6 | 6 | 6 | 4 | 4 | 2 | 2 | 2 | 2 |
| TDP | 65W | 35W | 65W | 35W | 65W | 65W | 35W | 60W | 35W | 46W | 35W | 46W | 35W |
Дополнительная информация
Processor System |
|
| Socket | LGA 1700 |
| Chipset | Q670E |
| BIOS | AMI 256MB SPI Flash |
Expansion Slot |
|
| PCI | 2 |
| PCIe x4 (Gen 3) | 3 |
| PCIe x8 (Gen 3) | 1 (x4 link) |
| PCIe x16 (Gen 4)Note | 1 |
Memory |
|
| Technology | Dual Channel (Non-ECC) DDR4 3200 GHz |
| Max Capacity | 128 GB |
| Sockets | 4 x 288-pin DIMM |
Graphics |
|
| Controller | Chipset integrated Intel HD Graphics |
| VRAM | Shares system memory is subjected to OS |
Ethernet |
|
| Interface | 10/100/1000 Mbps |
| Controller | GbE LAN1: Intel I219-LM (PHY); GbE LAN2: Intel I210-AT |
| Connector | 2 x RJ-45 |
SATA |
|
| Max. Data Transfer Rate | 600 MB/s |
| Channel | 4 |
| RAID | 0, 1, 5, 10 |
Rear I/O |
|
| VGA | 1 (Resolution up to 1920 x 1200 @ 60Hz) |
| HDMI | 1 (Resolution up to 3840 x 2160 @ 60Hz) |
| DisplayPort | 1 (Resolution up to 4096 x 2304 @ 60Hz) |
| Ethernet | 2 |
| USB | 8 (2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0) |
| Audio | 2 (Line-out, Mic-in) |
| Serial | 1 (RS-232) |
Watchdog Timer |
|
| Output | System reset |
| Interval | Programmable 1 ~ 255 sec |
Power Requirement |
|
| Power On | Intel Core i 65W , DDR4 32 GB x 4 |
Internal Connectors |
|
| USB | 6 (2 x USB 3.2 Gen 1 via pin header, 2 x USB 2.0 via pin header, 2 x USB 2.0 type A connector) |
| Serial | 5 (4 x RS-232, 1 x RS-232/422/485) |
| SATA | 4 |
| M.2 | 1 (PCIex4 M-key 2280 type) |
| SPI | 1 |
| GPIO | 8-bit |
Environment |
|
| Temperature Operating | 0 ~ 60 °C, depends on CPU loading and system thermal solution or |
| Temperature Non-Operating | -20 ~ 60 °C |
| Humidity Operating | 95%@ 40 °C, non-condensing |
| Humidity Non-Operating | 95% @ 60 °C, non-condensing |
Physical Characteristics |
|
| Dimension (L x H) | 304.8 x 244 mm (12" x 9.6") |
