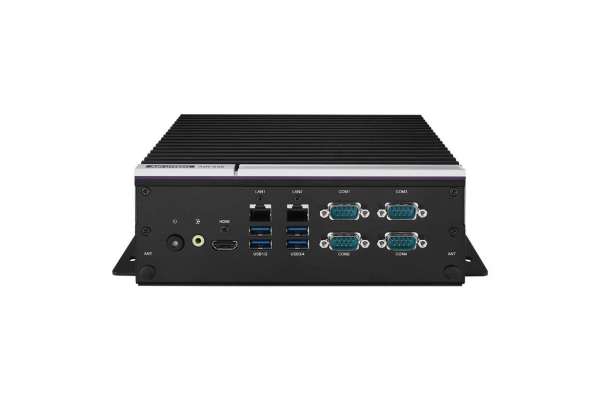

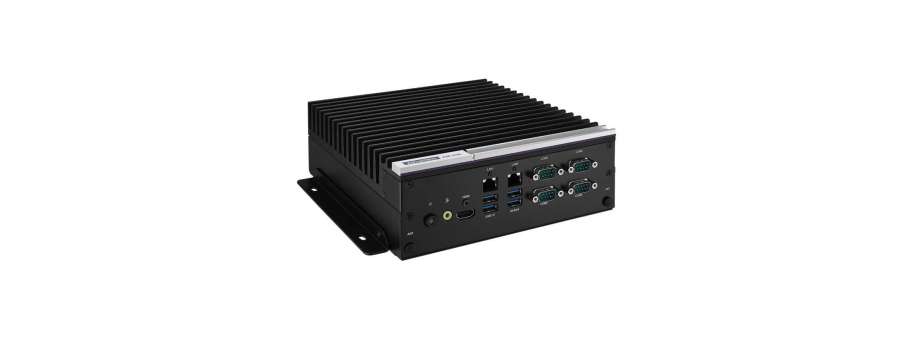

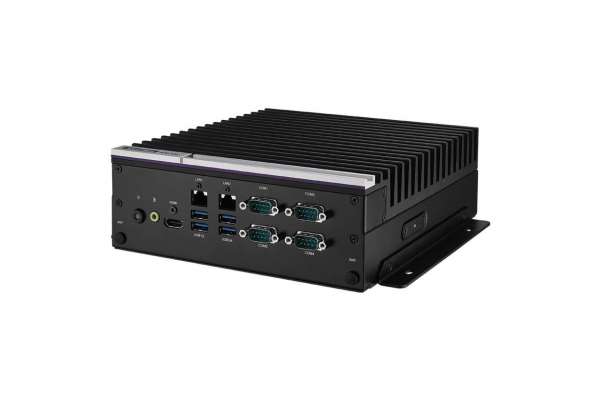

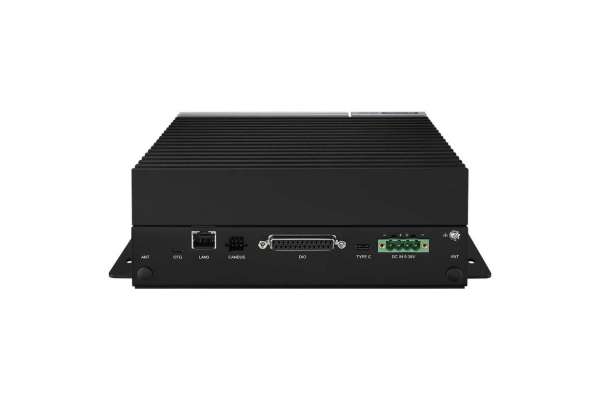

Высокопроизводительный ПК с ИИ Advantech AIR-030

Компактная система искусственного интеллекта на базе NVIDIA® Jetson AGX Orin™ Advantech AIR-030

Цены и наличие

Код товара	Описание товара	Цена с НДС	Наличие на складе
AIR-030-B90A1	Edge AI NVIDIA AGX Orin 32G inference system	203 024,0
AIR-030-S30A1	Edge AI NVIDIA AGX Orin 64G inference system	298 413,0

• Компактный и высокопроизводительный ИИ-бокс с вычислениями ИИ до 275 TOPS
• Встроенный процессор NVIDIA® Jetson AGX Orin™ 32G/64G
• Поддерживается питание 9~36 В и температура -10~60 °C
• Множество портов ввода/вывода: 3 x LAN, DIO, 4x COM, 4x USB 3.2 и USB type C
• Поддержка различных расширений 1 x M.2 2280 (NVME), 1 x M.2 2230 и 1 x PCIe x 16 (опционально)
• Предварительная загрузка образа Ubuntu 20.04, JetPack 5.0 SDK
• Сертификат IEC 61000-6-4 для тяжелой промышленности
• Сертификация AWS Greengrass

Дополнительная информация

	AIR-030-B90A1	AIR-030-S30A1
Processor System
NVIDIA Jetson Series	AGX Orin 32GB	AGX Orin 64GB
CPU	8-core NVIDIA Arm® Cortex A78AE v8.2	12-core NVIDIA Arm® Cortex A78AE v8.2
GPU	1792-core NVIDIA Ampere GPU with 56 Tensor Cores, Maximum Operating Frequency: 939 MHz	2048-core NVIDIA Ampere GPU with 64 Tensor Cores| Maximum Operating Frequency: 1.3GHz
AI Performance Reference	Up to 200 Sparse TOPs (INT8)	Up to 275 Sparse TOPS (INT8)
TDP	15~30W	15~50W
Memory	32GB 256-bit LPDDR5 DRAM	64GB 256-bit LPDDR5 DRAM
Flash	64GB eMMC 5.1	64GB eMMC 5.1
Ethernet
Interface	RJ-45	RJ-45
Controller	Intel® i225	Intel® i225
Speed	3 x 2.5 Gigabit Ethernet (10/100/1000/2500 Mbps, LAN1&2 optional PoE support)	3 x 2.5 Gigabit Ethernet (10/100/1000/2500 Mbps, LAN1&2 optional PoE support)
Display
HDMI	1 x HDMI 2.0 (Max. resolution 3840 x 2160 @ 60Hz)	1 x HDMI 2.0 (Max. resolution 3840 x 2160 @ 60Hz)
IO Ports
USB	4 x USB 3.2 Type A 1 x USB 3.2 Type C 2 x internal USB 2.0 for dongle only	4 x USB 3.2 Type A 1 x USB 3.2 Type C 2 x internal USB 2.0 for dongle only
OTG USB	1 x Micro USB (for system recovery only)	1 x Micro USB (for system recovery only)
CANBus	2	2
DI/DO	16 bit	16 bit
COM	4 x RS-232/RS-422/RS-485	4 x RS-232/RS-422/RS-485
Audio	1 x Line-out	1 x Line-out
Expansion
M.2	1 x M.2 2230 (E Key)	1 x M.2 2230 (E Key)
PCIe	1 x PCIex16 (Optional, signal: PCIe x 8)	1 x PCIex16 (Optional, signal: PCIe x 8)
MIPI	2 x internal 2-LANE MIPI-CSI connector	2 x internal 2-LANE MIPI-CSI connector
Others
TPM	TPM2.0	TPM2.0
Storage
M.2 2280	1 x M.2 2280/3052 (B Key, signal: PCIe x2, USB3.0)	1 x M.2 2280/3052 (B Key, signal: PCIe x2, USB3.0)
SD	1 x SD 3.0 slot	1 x SD 3.0 slot
Power
Power Supply voltage	9~36V	9~36V
Power Type	ATX/AT mode, ATX default	ATX/AT mode, ATX default
Environment
Operational Temperature	With AGX Orin 32GB : -10 ~ 60°C with 0.7 m/s air flow With AGX Orin 64GB: -10~55°C with 0.7 m/s air flow (TDP MODE_50W)	With AGX Orin 32GB : -10 ~ 60°C with 0.7 m/s air flow With AGX Orin 64GB: -10~55°C with 0.7 m/s air flow (TDP MODE_50W)
Operating Humidity	95% @ 40 °C (non-condensing)	95% @ 40 °C (non-condensing)
Vibration	3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis	3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Mechanical
Dimensions (W x D x H)	200 x 220 x 74 mm	200 x 220 x 74 mm
Weight	3.63 kg	3.63 kg
Mounting Support	Wall mounting	Wall mounting
Operating System
Linux	Ubuntu 20.04 LTS with JetPack 5.1.2	Ubuntu 20.04 LTS with JetPack 5.1.2
Software Support
Software API	Edge AI SDK compatible	Edge AI SDK compatible
Certifications
EMC/Safety	CE/FCC Class B, CB, UL, CCC and BSMI (No RED Certificate)	CE/FCC Class B, CB, UL, CCC and BSMI (No RED Certificate)
