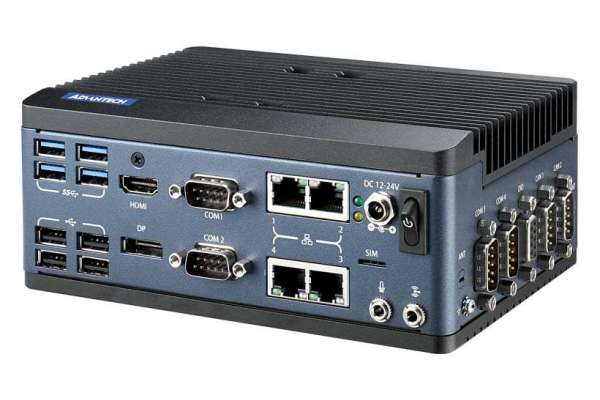

Встроенная система Advantech EPC-C301

Безвентиляторная встроенная компьютерная система на процессоре Intel® Core i7/i5 8 поколения Advantech EPC-C301

Цены и наличие

Код товара	Описание товара	Цена с НДС	Наличие на складе
EPC-C301EVK-S7A1	Intel Core i7-8665UE 1.7GHz, Intel EVK system	170 657,0
EPC-C301EVK-S6A1	Intel Core i5-8365UE 1.6GHz, Intel EVK system	140 802,0
EPC-C301C7-S7A1	Компактний промисловий комп'ютер Advantech EPC-C301C7, Intel Core i7-8665UE 1.7GHz,RAM 16GB, M.2 2280 SATA SSD 128GB, робоча температура -20 до +60С, без ОС.	123 325,0
EPC-C301C5-S6A1	Intel Core i5-8365UE 1.6GHz, Embedded system	100 582,0

Встраиваемый одноплатный компьютер:

• Процессор Intel 8 поколения с четырьмя / двумя ядрами (i7 / i5), TDP 15 Вт

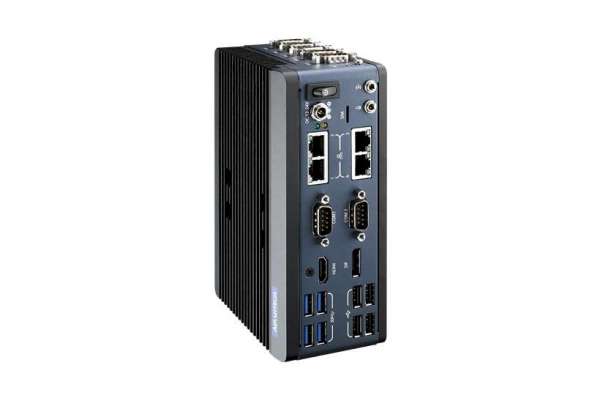

• Полупромышленная безвентиляторная тонкая система, крепление на Din-рейку или на стену
• Поддерживает HDMI + DP* ( Vai MIO)
• 4 GbE, 4 USB3.1, 4 USB 2.0, шина CAN, M.2 M-Key 2280 поддерживает NVMe, M.2 E-key 2230, M.2 B-key, 1 полноразмерный мини-PCIe, DC-in 12V
• Рабочая температура -20 ~ 60° С
• iManager & SW API, WISE-PaaS / DeviceOn

Advantech выпускает безвентиляторный EPC-C301 для систем машинного зрения

Дополнительная информация

Part Number	EPC-C301EVK-S7A1	EPC-C301EVK-S6A1	EPC-C301C7-S7A1	EPC-C301C5-S6A1
Processor
CPU	Intel® Core™ i7-8665UE	Intel® Core™ i5-8365UE	Intel® Core™ i7-8665UE	Intel® Core™ i5-8365UE
Max Turbo Frequency	4.4 GHz	4.1 GHz	4.4 GHz	4.1 GHz
Frequency	1.7 GHz	1.6 GHz	1.7 GHz	1.6 GHz
Thread	8	8	8	8
Core Number	4	4	4	4
LLC	8MB	6MB	8MB	6MB
CPU TDP	15W	15W	15W	15W
BIOS	AMI UEFI 256 Mbit	AMI UEFI 256 Mbit	AMI UEFI 256 Mbit	AMI UEFI 256 Mbit
Memory
Technology	DDR4 2400MHz SO-DIMM	DDR4 2400MHz SO-DIMM	DDR4 2400MHz SO-DIMM	DDR4 2400MHz SO-DIMM
Max. Capacity	Max. up to 32 GB (16 GB per SODIMM)	Max. up to 32 GB (16 GB per SODIMM)	Max. up to 32 GB (16 GB per SODIMM)	Max. up to 32 GB (16 GB per SODIMM)
Socket	2 x 260 Pin DDR4 SO-DIMM	2 x 260 Pin DDR4 SO-DIMM	2 x 260 Pin DDR4 SO-DIMM	2 x 260 Pin DDR4 SO-DIMM
Display
Controller	Integrated Intel® UHD Graphics 620	Integrated Intel® UHD Graphics 620	Integrated Intel® UHD Graphics 620	Integrated Intel® UHD Graphics 620
Graphic Engine	DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC	DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC	DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC	DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC
DP/HDMI	DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz)	DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz)	DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz)	DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz)
Ethernet
Speed	10/100/1000 Mbps	10/100/1000 Mbps	10/100/1000 Mbps	10/100/1000 Mbps
Audio
Chipset	Realtek ALC888S, High Definition Audio (HD)	Realtek ALC888S, High Definition Audio (HD)	Realtek ALC888S, High Definition Audio (HD)	Realtek ALC888S, High Definition Audio (HD)
Expansion
M.2	1x E-Key (Type:2230), 1x M-key (Type:2280), 1x B-key (Type:3042)	1x E-Key (Type:2230), 1x M-key (Type:2280), 1x B-key (Type:3042)	1x E-Key (Type:2230), 1x M-key (Type:2280), 1x B-key (Type:3042)	1x E-Key (Type:2230), 1x M-key (Type:2280), 1x B-key (Type:3042)
Mini PCIe	1 x Full size Mini-PCIe	1 x Full size Mini-PCIe	1 x Full size Mini-PCIe	1 x Full size Mini-PCIe

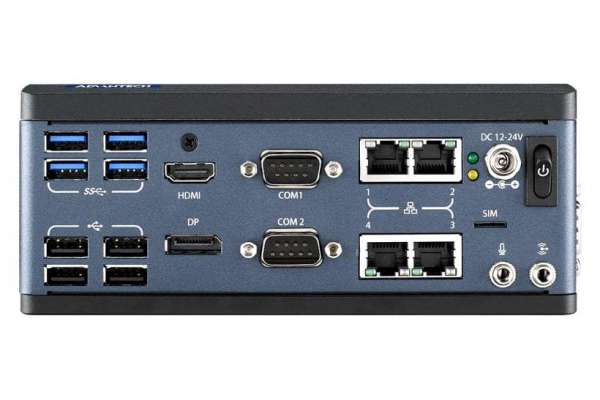

Front I/O Interface
HDMI	1	1	1	1
DP	1	1	1	1
USB	4x USB 3.0, 4x USB 2.0	4x USB 3.0, 4x USB 2.0	4x USB 3.0, 4x USB 2.0	4x USB 3.0, 4x USB 2.0
RJ-45	4	4	4	4
COM	2x RS-232/422/485	2x RS-232/422/485	2x RS-232/422/485	2x RS-232/422/485
Audio	2 (Line-Out, Mic-In)	2 (Line-Out, Mic-In)	2 (Line-Out, Mic-In)	2 (Line-Out, Mic-In)
DC Jack	1	1	1	1
SIM Card	1x Nano SIM	1x Nano SIM	1x Nano SIM	1x Nano SIM
Power Button	1	1	1	1
Miscellaneous
LED Indicators	2 (Power LED, HDD LED)	2 (Power LED, HDD LED)	2 (Power LED, HDD LED)	2 (Power LED, HDD LED)

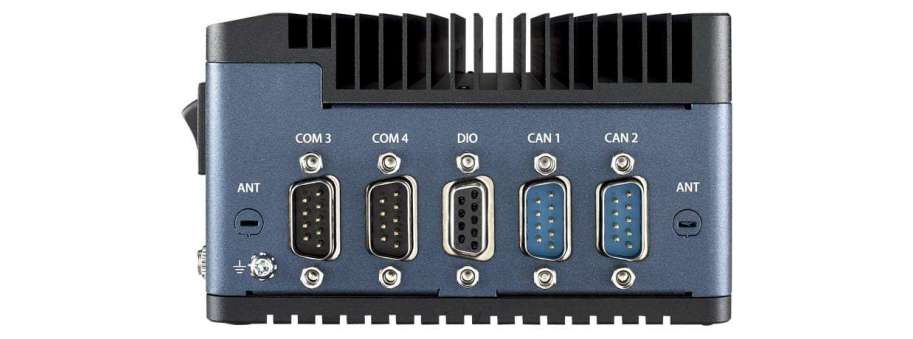

Side I/O Interface
COM	2 (1 x RS-232/422/485, 1 x RS-232)	2 (1 x RS-232/422/485, 1 x RS-232)	2 (1 x RS-232/422/485, 1 x RS-232)	2 (1 x RS-232/422/485, 1 x RS-232)
DIO	1	1	1	1
CAN Bus	2 (Support CAN 2.0B at 1Mb/s)	2 (Support CAN 2.0B at 1Mb/s)	2 (Support CAN 2.0B at 1Mb/s)	2 (Support CAN 2.0B at 1Mb/s)
Antenna	4	4	4	4
Power
Input Voltage	12 VDC	12 VDC	12 VDC	12 VDC
Connector Type	Lockable DC Jack	Lockable DC Jack	Lockable DC Jack	Lockable DC Jack
Environment
Operational Temperature	With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow without VEGA 330/ -20 ~ 50 °C with VEGA 330	With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow without VEGA 330/ -20 ~ 50 °C with VEGA 330	With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow without VEGA 330/ -20 ~ 50 °C with VEGA 330	With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow without VEGA 330/ -20 ~ 50 °C with VEGA 330
Non-Operational Temperature	-40 ~ 85° C (-40 ~ 185° F)	-40 ~ 85° C (-40 ~ 185° F)	-40 ~ 85° C (-40 ~ 185° F)	-40 ~ 85° C (-40 ~ 185° F)
Relative Humidity	40 °C @ 95%, Non-Condensing	40 °C @ 95%, Non-Condensing	40 °C @ 95%, Non-Condensing	40 °C @ 95%, Non-Condensing
Physical
Mounting	Desk/ Wall Mount/ DIN Rail	Desk/ Wall Mount/ DIN Rail	Desk/ Wall Mount/ DIN Rail	Desk/ Wall Mount/ DIN Rail
Dimensions (W x H x D)	170 x 118 x 70 mm	170 x 118 x 70 mm	170 x 118 x 70 mm	170 x 118 x 70 mm
Regulation
EMC	CE/FCC Class B, CCC, BSMI	CE/FCC Class B, CCC, BSMI	CE/FCC Class B, CCC, BSMI	CE/FCC Class B, CCC, BSMI
Safety	CB, UL, CCC, BSMI	CB, UL, CCC, BSMI	CB, UL, CCC, BSMI	CB, UL, CCC, BSMI
