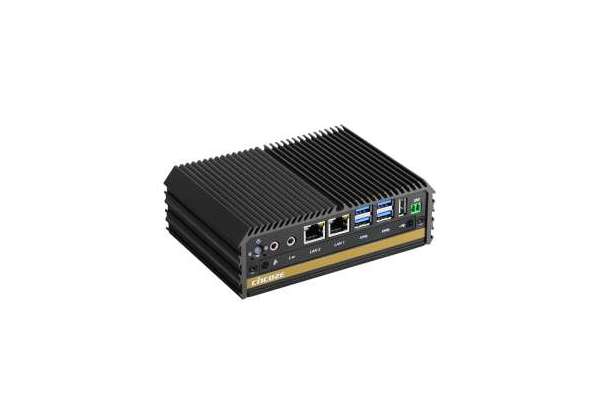

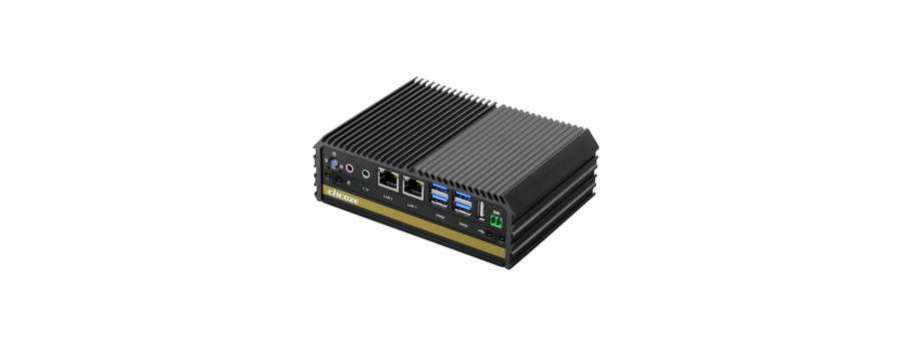

Встраиваемый ПК Cincoze DA-1100

Processor

• Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz
• Onboard Intel® Celeron® N3350 Dual Core Processor, up to 2.40 GHz

• 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket
• Supports up to 8GB (un-buffered and non-ECC)

• Integrated Intel® HD Graphics 505 (Pentium® N4200)
• Integrated Intel® HD Graphics 500 (Celeron® N3350)
• Supports Triple Independent Display (DVI-D + VGA from DVI-I, one output from optional CMI module)

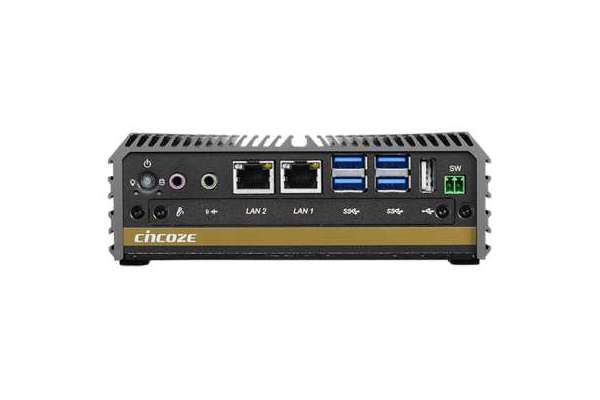

• 1x DVI-I (1920 x 1080 @60Hz)
• 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 (- GbE1: Intel® I210 - GbE2: Intel® I210)
• 4x USB 3.0 (Type A)
• 1x USB 2.0 (Type A)

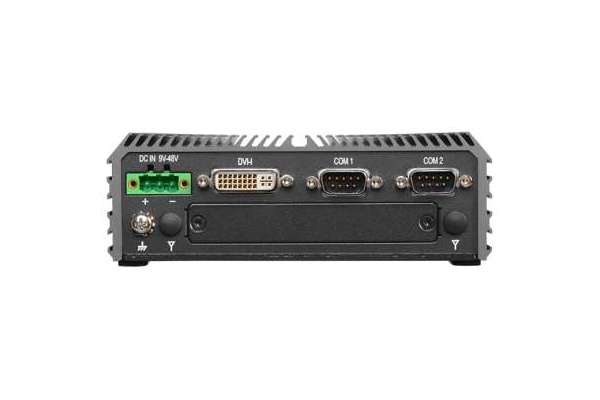

• 2x RS-232/422/485 with Auto Flow Control, DB9
• 1x Line-out & 1x Mic-in, Phone Jack 3.5mm
• 1x ATX Power On/Off Button
• 1x AT/ATX Mode Switch
• 1x Clear CMOS Switch
• 1x Remote Power On/Off Connector, 2-pin Terminal Block

• 1x mSATA (SATA 3.0, Shared by Mini-PCIe Socket)
• 1x 2.5" HDD/SSD or 1x Half-Slim SSD (SATA 3.0) * The 2.5” HDD/SSD bracket has to be removed when installing Mini-PCIe MEC LAN Module or Half Slim SSD.

• 2x Full-size Mini-PCIe Socket
• 1x Control Function Module (CFM) Interface

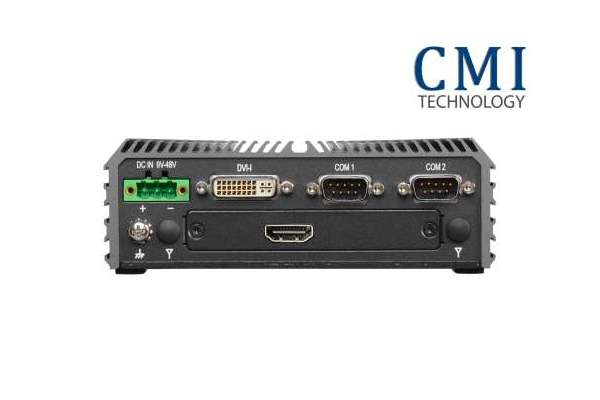

• 1x Combined Multiple I/O (CMI) Interface
• 1x SIM Card Socket
• 2x Antenna Holes

• Watchdog Timer: Software Programmable Supports 256 Levels System Reset
• Supports Instant Reboot Technology (0.2 sec)

• Supports AT/ATX Power Type
• Power Input Voltage 9~48VDC
• 1x 3-pin Terminal Block
• Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W (Optional)

• Dimensions (WxDxH, mm): 150 x 105 x 52.3 mm
• Weight: 0.87 kg
• Construction: Extruded Aluminum with Heavy Duty Metal
• Mounting: Wall / VESA (Optional DIN-Rail/Side Mounting)
• Unibody Chassis
• Fanless Design
• Jumper-less Design
• Cable-less Design

• Reverse Power Input Protection
• Over Voltage Protection: Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
• Over Current Protection: 20A
• ESD Protection: +/-8kV (air), +/-4kV (contact)
• Surge Protection: 3.84 kV (impedance 12 ohm 1.2/50us waveform)

• Windows® 10
• Linux: Supports by project

• Operating Temperature: -40°C to 70°C ( * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
• Storage Temperature: -40°C to 85°C
• Relative Humidity: 95%RH @ 70°C (non-Condensing)
• Shock: Operating, 50 Grms, Half-sine 11 ms Duration * w/ SSD, according to IEC60068-2-27
• Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes * w/ SSD, according to IEC60068-2-64
• MTBF: 632,353 Hours

• EMC: CE, FCC Class A
• Safety: LVD EN62368-1
