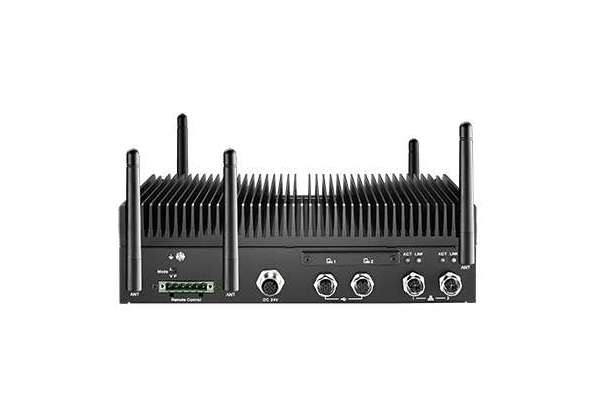

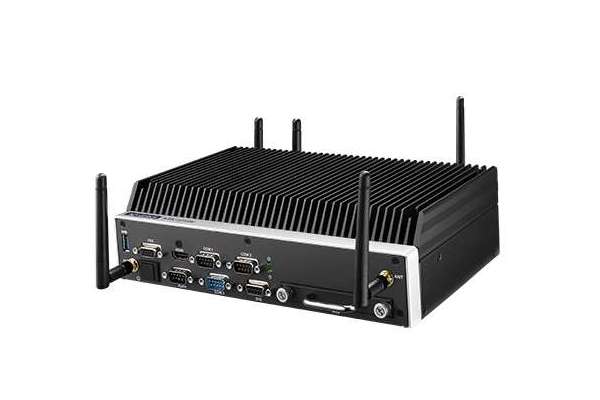

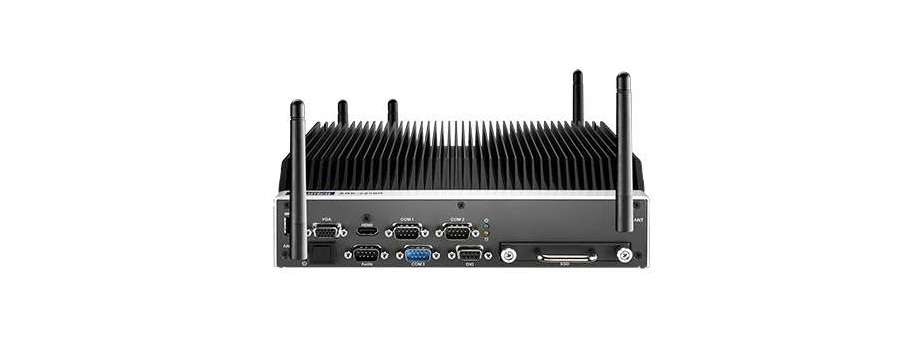

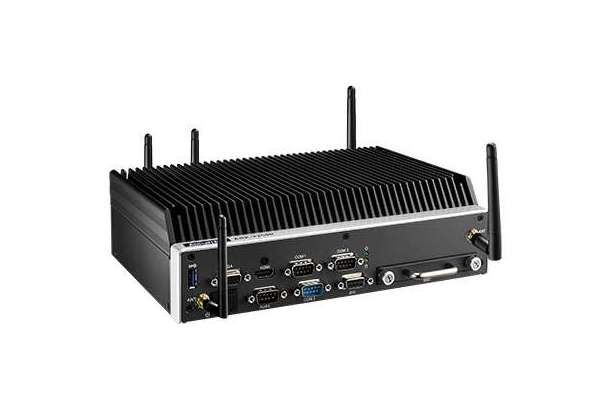

Безвентиляторный встроенный компьютер на Intel Core i7-6822EQ QC/i5-6442EQ QC 6 поколения, диапазон рабочих температур -40 ~ 70 °C с EN50155 Advantech ARK-2250R
Цены и наличие
| Код товара | Описание товара | Цена с НДС | Наличие на складе |
|---|---|---|---|
| ARK-2250R-S9A1E | Компактний промисловий комп'ютер Advantech ARK Rail PC, Core i5-6442EQ 1.9G, 2HDMI | 103 200,0 | |
| ARK-2250R-U0A1E | Компактный компьютер ARK-2250R, 6th Gen Intel Core i7-6822EQ QC/i5-6442EQ QC Rolling Stock Fanless System | 122 317,0 |
Безвентиляторная система для подвижного состава на Intel Core i7-6822EQ QC/i5-6442EQ QC 6-го поколения
- Intel i7-6822EQ QC/ Intel i5-6442EQ QC SoC
- Штабелированная конструкция расширения, опциональный комплект для расширения
- DC 24V EN50155 S2 / C1 совместимый, DC 48/72 / 110V опции
- Выдерживает избыточную входную мощность
- Поддержка температуры от -40 до 70 ° C в соответствии с EN50155 TX
- Прочное соединение для LAN / USB / Audio / COM и вход питания
- Антивибрационная / ударопрочная защита, IEC 61373, категория 1, класс B
- Встроенное программное обеспечение для удаленного управления Advantech WISE-PaaS / RMM
Дополнительная информация
| Part Number | ARK-2250R-S9A1E | ARK-2250R-U0A1E |
Processor |
||
| CPU | Intel i5-6442EQ QC SoC | Intel i7-6822EQ QC SoC |
| Core Number | 4 | 4 |
| Frequency | 1.9 GHz | 2.0 GHz |
| L2 Cache | 6 MB | 8 MB |
| BIOS | AMI EFI | AMI EFI |
Memory |
||
| Technology | DDR4 2133MHz | DDR4 2133MHz |
| Max. Capacity | 32 GB | 32 GB |
| Socket | 2 x 260-pin SO-DIMM | 2 x 260-pin SO-DIMM |
Graphics |
||
| Chipset | QM170 | QM170 |
| Graphic Engine | DirectX 11.3, OGL 4.4, OCL 2.1, Encode: H.264, MPEG2/4, VC1, WMV9, Decode: H.264, MPEG2, EHVC: H.265 | DirectX 11.3, OGL 4.4, OCL 2.1, Encode: H.264, MPEG2/4, VC1, WMV9, Decode: H.264, MPEG2, EHVC: H.265 |
| VGA | Up to 1920 x 1200 at 60 Hz | Up to 1920 x 1200 at 60 Hz |
| HDMI | HDMI 1.4a for HD video playback, 1080P at 60Hz | HDMI 1.4a for HD video playback, 1080P at 60Hz |
| Dual Display | VGA + HDMI (Std.) or Dual HDMI (by project) | VGA + HDMI (Std.) or Dual HDMI (by project) |
Ethernet |
||
| LAN1 | 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan | 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan |
| LAN2 | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
Audio |
||
| Interface | Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in | Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in |
I/O |
||
| Serial port | 3 x RS-232/422/485 port with auto flow control | 3 x RS-232/422/485 port with auto flow control |
| USB | 2x USB2.0 A-Coded, 1x USB3.0 Type A | 2x USB2.0 A-Coded, 1x USB3.0 Type A |
| GPIO | 8-bit Programmable DIO | 8-bit Programmable DIO |
| CANBus | Optional | Optional |
Other |
||
| Watchdog Timer | 255 levels timer interval, setup by software | 255 levels timer interval, setup by software |
| TPM | TPM2.0 (Infineon SLB9665) | TPM2.0 (Infineon SLB9665) |
Expansion |
||
| Mini PCIe | #1, Full-size Mini PCIe (SATA/PCIe/USB) w/external SIM socket, #2, Full-size Mini PCIe (PCIe/USB) w/external SIM socket, #3, M.2 2230 E key | #1, Full-size Mini PCIe (SATA/PCIe/USB) w/external SIM socket, #2, Full-size Mini PCIe (PCIe/USB) w/external SIM socket, #3, M.2 2230 E key |
Storage |
||
| 2.5" HDD/SSD | 1 x 2.5" SATA drive bay | 1 x 2.5" SATA drive bay |
| mSATA | 1 x full size mSATA socket (Mini PCIe #1) | 1 x full size mSATA socket (Mini PCIe #1) |
Software Support |
||
| Microsoft Windows | Windows 10, Windows 8.1, WES7, Windows 7 | Windows 10, Windows 8.1, WES7, Windows 7 |
| Linux | Support by project | Support by project |
Power |
||
| Power Type | ATX | ATX |
| Input Voltage | DC 24V - StandardDC 48/72/110V - Options | DC 24V - StandardDC 48/72/110V - Options |
| Power Requirement | Regulation: EN50155 S2/C1 Compliant | Regulation: EN50155 S2/C1 Compliant |
| Power Consumption | Typical 22 W, Max. 55 W | Typical 22 W, Max. 55 W |
Power Requirement |
||
| Vehicle Power Ignition | Selectable boot-up & shut-down voltage, on/off delay time | Selectable boot-up & shut-down voltage, on/off delay time |
Mechanical |
||
| Construction | Aluminum housing | Aluminum housing |
| Mounting | Wall mounting kit | Wall mounting kit |
| Dimensions | 260 x 73 x 160.2mm | 260 x 73 x 160.2mm |
| Weight | 3.2 Kg | 3.2 Kg |
Environment |
||
| Operational Temperature | With extended temperature peripherals: -40 ~ 70 °C EN50155 TX | With extended temperature peripherals: -40 ~ 70 °C EN50155 TX |
| Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) |
| Relative Humidity | 95% @ 40° C (non-condensing) | 95% @ 40° C (non-condensing) |
| Vibration during Operation | IEC61373 Category1, Class B | IEC61373 Category1, Class B |
| Shock During Operation | IEC61373 Category1, Class B | IEC61373 Category1, Class B |
| EMC | CE/FCC Class B, CCC, BSMI, EN50121-3-2, EN50121-4 | CE/FCC Class B, CCC, BSMI, EN50121-3-2, EN50121-4 |
Certification |
||
| Safety Certifications | UL, CCC, BSMI, CB, EN50155 | UL, CCC, BSMI, CB, EN50155 |
