Безвентиляторный встраиваемый ПК на Intel Celeron N3350 DC SoC с 4K Dual HDMI/Dual LAN/M.2 DIN-Rail Advantech ARK-11
Цены и наличие
| Код товара | Описание товара | Цена с НДС | Наличие на складе |
|---|---|---|---|
| ARK-11-S1A3 | Компактний промисловий комп'ютер Advantech ARK-11 Intel N3350 F1w/4G RAM,64G SSD,win10 62368 ADP | 40 885,1 | |
| ARK-11-S1A1 | Компактний промисловий комп'ютер Advantech ARK-11 Intel N3350 DC w/4G RAM, 64G SSD, win10 and ADP | 36 581,3 |

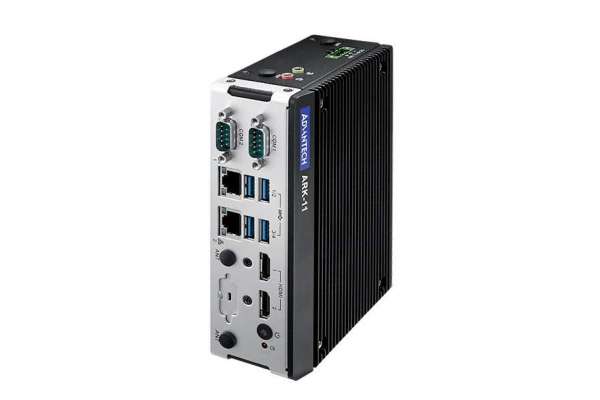

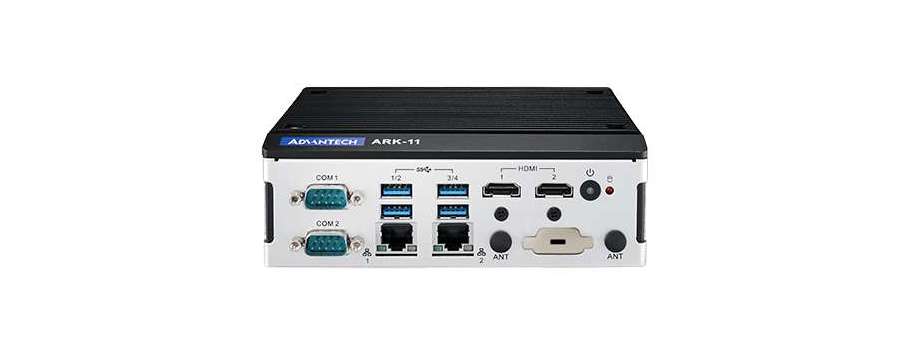

Безвентиляторный встраиваемый ПК ARK-11 на Intel Celeron N3350 DC SoC с 4K Dual HDMI/Dual LAN/M.2 DIN-Rail
- Intel Celeron N3350, двухъядерный, 1,1 ГГц
- Система с креплением на DIN-рейку и основными портами ввода/вывода на передней панели
- Память I-Grade 4G DDR3L и встроенный твердотельный накопитель 64 ГБ
- Встроенная Windows 10 IoT Enterprise
- Адаптер на 60 Вт в комплекте с аксессуарами
- Два входа HDMI с разрешением до 4K
- 1 полноразмерный mPCIe с держателем SIM-карты и 1 разъем M.2 2230 для WIFI
- Входная мощность в широком диапазоне 12 ~ 28 В
- -30 ~ 70 ° C расширенная рабочая температура
- Поддержка Advantech WISE-PaaS / DeviceOn
Дополнительная информация
|
Part Number |
ARK-11-S1A2 |
Processor |
|
|
CPU |
Intel Celeron N3350 Dual Core SoC |
|
Frequency |
1.1 GHz, turbo burst 2.4 GHz |
|
Core Number |
2 |
|
BIOS |
AMI EFI 64 Mbit |
Memory |
|
|
Technology |
DDR3L 1866 MHz |
|
Max. Capacity |
8GB, 1 x 4GB memory (-40 ~ 85 °C) built-in |
|
Socket |
2 x 204-pin SO-DIMM |
Graphics |
|
|
Chipset |
Intel HD Graphics 500, CPU integrated |
|
Graphic Engine |
Gen9 Low Power; 18 Execution Units Media Codec Supported: H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG, 3D HW Acceleration: OpenGL 4.4, DirectX* 12, OpenCL* 2.0 |
|
HDMI |
HDMI1 : 3840 x 2160 @ 30Hz; HDMI2 : 3840 x 2160 @ 30Hz |
|
Dual Display |
HDMI1 + HDMI2 |
Ethernet |
|
|
LAN1 |
10/100/1000 Mbps Intel i210 GbE, support Wake On Lan |
|
LAN2 |
10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
Audio |
|
|
Interface |
Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
I/O |
|
|
Serial port |
2 x RS-232/422/485 with auto flow control, COM2 with 5V/12V power supply |
|
USB |
4 x USB 3.0 |
|
GPIO |
8-bit Programmable DIO (Optional) |
Expansion |
|
|
Mini PCIe |
1 x Full-size mPCIe with SIM holder |
|
M.2 |
1 x M.2 2230 E key for WIFI module |
Storage |
|
|
2.5" HDD/SSD |
1 x 2.5" 64G MLC SSD (-40~85°C) built-in |
|
mSATA |
1 x Full-size mSATA (*share with mPCIe slot) |
Others |
|
|
Watchdog timer |
255 levels timer interval, setup by software |
Software Support |
|
|
Microsoft Windows |
Windows 10 IoT Enterprise built-in |
|
Linux |
Support by project |
| Power | |
|
Power Type |
AT/ATX |
|
Input Voltage |
12 ~ 28 VDC |
|
Power Adaptor |
AC to DC, 24V/2.5A 60W adaptor built-in |
Power Consumption |
|
|
Typical |
6.4W |
|
Max. |
18.1W |
Mechanical |
|
|
Construction |
Aluminum housing |
|
Mounting |
DIN-rail/Wall Mount |
|
Dimensions |
53.5 x 158 x 114 mm (2.11" x 6.22" x 4.49") |
|
Weight |
1.2 kg (2.65lb) |
Environment |
|
|
Operational Temperature |
With extended temp. peripherals: -30 ~ 70 °C (-22 ~ 158 °F) with 0.7 m/s air flow, With 2.5 inch hard disk: 0 ~ 40 °C (32 ~ 104 °F) with 0.7 m/s air flow |
|
Storage Temperature |
-40 ~ 85° C (-40 ~ 185° F) |
|
Relative Humidity |
95% @ 40° C (non-condensing) |
|
Vibration during Operation |
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
Shock During Operation |
With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
Certification |
|
|
EMC |
CE/FCC Class B, CCC, BSMI |
|
Safety Certifications |
UL, CB, CCC, BSMI |
