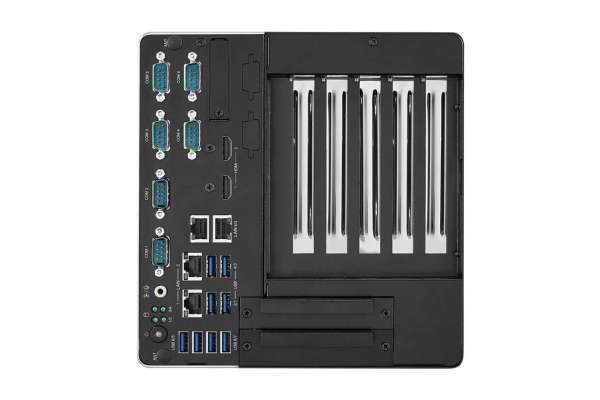

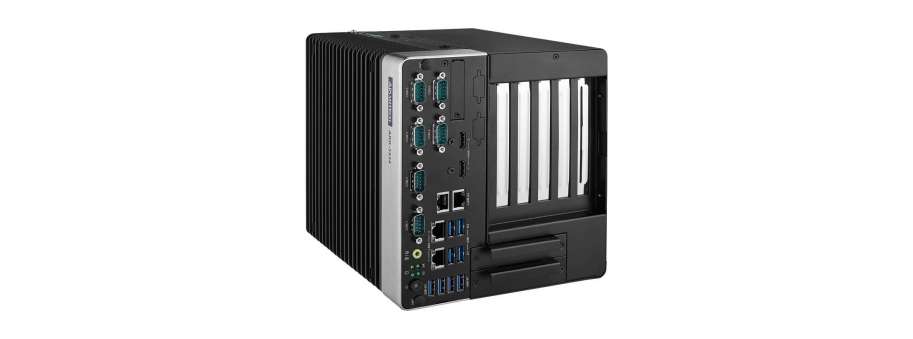

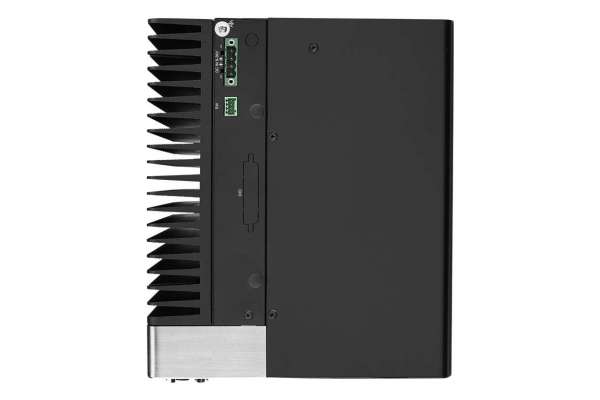

Безвентиляторный промышленный ПК с возможностью расширения, на процессорах Intel® i3/i5/i7/i9 LGA1700 12-го и 13-го поколений Advantech ARK-3534D

Цены и наличие

Код товара Описание товара Цена с НДС Наличие на складе
ARK-3534D-00A1 Компактний промисловий комп'ютер Advantech ARK-35 Intel ADL-S R680E PCIex4+PCIex16+2*PCI, 9-36V  74 112,2
  • Поддержка процессоров Intel® Core™ i3/i5/i7/i9 12-го и 13-го поколений.
  • Подключение трех независимых дисплеей: HDMI + HDMI + дополнительный дисплей
  • Поддержка памяти DDR5 SO-DIMM ECC/non-ECC объемом до 64 ГБ
  • Входное напряжение широкого диапазона 9–36 В постоянного тока
  • До трех отсеков для 2.5" жестких дисков с поддержкой Intel® SW RAID
  • Поддержка до 4GbE, 8USB, 8COM, 16-битного DIO, 2CANBus, TPM2.0
  • SUSI API, WISE-DeviceOn, McAfee и Acronis в комплекте
CPU i9-13900E i7-13700E i5-13500E i3-13100E i9-12900E i7-12700E i5-12500E i3-12100E G6900E
Frequency 1.3-5.2GHz 1.3-5.1GHz 1.5-4.6GHz 3.3-4.4GHz 1.7-5.0GHz 1.6-4.8GHz 2.9-4.5GHz 3.2-4.2GHz 3.0GHz
L3 Cache 36MB 30MB 24MB 12MB 30MB 25MB 18MB 12MB 4MB
Cores 24 16 14 4 16 12 6 4 2
TDP 65W 65W 65W 60W 65W 65W 65W 60W 46W

Дополнительная информация

Processor System

Chipset R680E
BIOS AMI EFI 256Mbit

Memory

Technology DDR5 4800 MHz
Max. Capacity 64 GB
Socket 2 x 262-pin ECC/nonECC SO-DIMM

Graphics

Chipset Intel® UHD Graphics 770
Graphic Engine
  • DirectX 12, OpenGL 4.5
  • HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8.
  • HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
HDMI 2 HDMI port, HDMI 2.0 for HD video playback, 4096x2160@60Hz
Optional 3rd Display module DVI-D / DP / HDMI Display Port
Triple Display HDMI+HDMI + 3rd display module

Ethernet

LAN1 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan
LAN2/3/4 10/100/1000/2500 Mbps Intel i225-LM GbE, support Wake On Lan

Audio

Interface Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch)

Others

Watch dog Timer 255-level timer interval, setup by software
TPM TPM 2.0 (by optional AMO-I029)

I/O Interface

Serial Port 4 x RS-232/422/485 port with auto flow control, 2 x RS-232 (additional COM7/8 2 x RS-232 by optional cable)
USB
  • 8 x USB 3.2 (4 x Gen2, 4 x Gen1)
  • 1 x Internal USB2.0 (Optional)
DIO 16bit DIO (by optional cable)

Expansions

CANBus 2 ports by optional cable
M.2 1 x M2. 2230 E key and 1 x M.2 2280 B key with SIM holder #1
Add-on Card Slot 2 Slot PCI + 1 Slot PCIex4 + 1 Slot PCIex16 (If card power power consumption over 30W for add-on cards, please bundled with AMO-3509 kit for power and thermal solutions)
Maximum card size 110mm (H) x 180mm (L)

Storage

HDD 2 x 2.5" SATAIII 15mm height HDD bay support Intel SW RAID (Up to 3 x 2.5" SATAIII HDD bays)
NVME 1 x PCIex2 (Share with M.2 2280 B key)

Software Support

Microsoft Windows Windows 10
Linux By Project Support

Power Requirements

Power Type AT/ATX
Power Input Voltage 9-36V
Power Adapter AC to DC, 230W (Optional)

Power Consumption (CPU/Memory Only)

Typical 56.1W
Max 92.4W

Mechanical

Construction Aluminum housing
Mounting Desk mounting
Dimensions (W x H x D) 197.2 x 204 x 230 mm
Weight 6.41 Kg

Environment

Operating Temperature Up to 65W processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow with HDD: 0 ~ 40° C with 0.7m/s air flow
Storage Temperature -40 ~ 85° C
Relative Humidity 95% @ 40° C (non-condensing)
Vibration During Operation With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Shock During Operation With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
EMC CE/FCC Class B, CCC, BSMI
Safety CB, UL, CCC, BSMI
