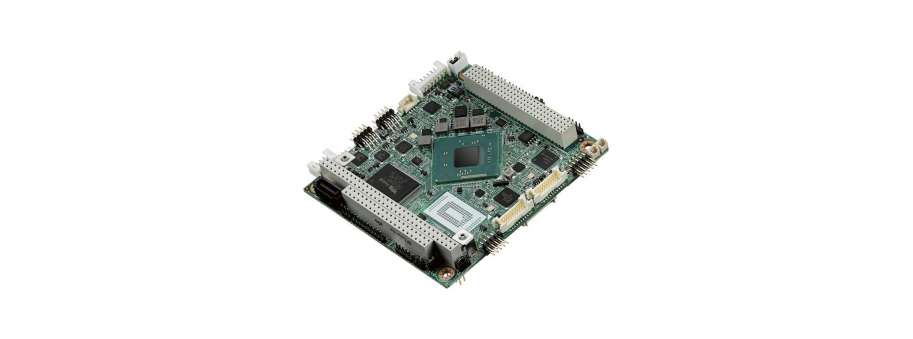

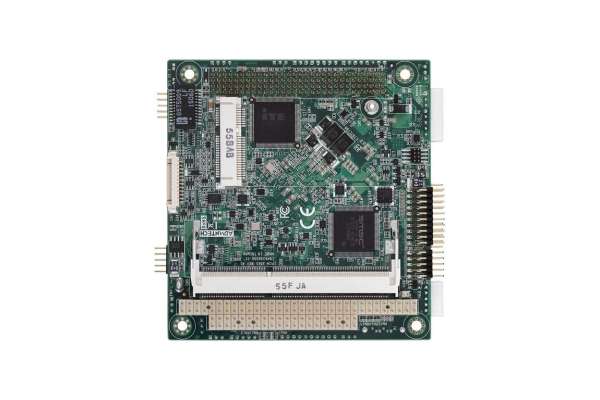

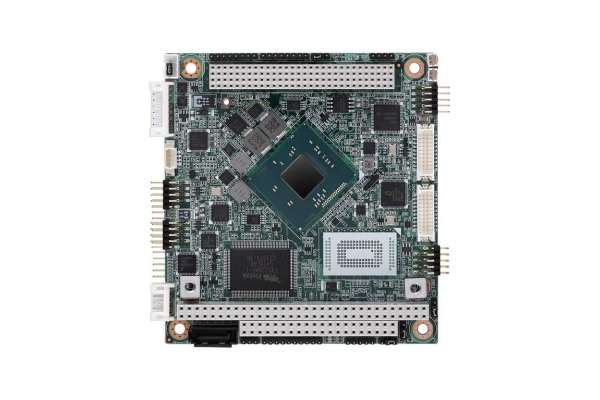

Одноплатный ПК на процессорах Intel® Atom™ E3825 / E3845 & Celeron® N2930, PC/104-Plus SBC Advantech PCM-3365
Цены и наличие
| Код товара | Описание товара | Цена с НДС | Наличие на складе |
|---|---|---|---|
| PCM-3365E-S3A2 | Процесорний модуль, що вбудовується Advantech PCM-3365E E3825 A2 PC104+/VGA+LVDS/6USB/3COM | 20 394,9 | |
| PCM-3365EW-S3A2 | Процесорний модуль, що вбудовується - Advantech PCM-3365EW E3825 BT-I E3825 A2 PC104+/VGA+LVDS/6USD/3COM -40~85 | 22 716,0 | |
| PCM-3365EW-S9A2 | Процесорний модуль, що вбудовується - Advantech PCM-3365EW, BT-I E3845 A2 PC104+/VGA+LVDS/6USD/3COM -40~85C | 25 571,3 | |
| PCM-3365N-S8A2 | Процесорний модуль, що вбудовується - Advantech PCM-3365N, BT N2930 A2 PC104+/VGA+LVDS/6USD/3COM | 22 230,9 |
Аналог модели PCM-3353 (снята с производства)
- Intel® Atom™ E3825/E3845 и Celeron® N2930
- DDR3L-1066/1333 МГц SODIMM до 8 ГБ
- 3 независимых дисплея: VGA+LVDS+HDMI/DVI
- Поддержка расширения PC/104-Plus
- Богатый ввод/вывод: 1 GbE, 3 COM, SATA, 6 USB2.0, полноразмерный mSATA/miniPCIE
- Поддерживает SUSIAccess и API встроенного программного обеспечения
Дополнительная информация
Processor System |
|
|
|
| CPU | Intel Celeron N2930 | Intel Atom E3825 | Intel Atom E3845 |
| Base Frequency | 1.83 GHz (Quad-Core) | 1.33 GHz (Dual-Core) | 1.91 GHz (Quad-Core) |
| Max Turbo Frequency | 2.16 GHz | - | - |
| L2 Cache | 2MB | 1MB | 2MB |
| BIOS | AMI UEFI BIOS at 64 Mb | AMI UEFI BIOS at 64 Mb | AMI UEFI BIOS at 64 Mb |
Memory |
|||
| Technology | DDR3L 1333 MHz | DDR3L 1066 MHz | DDR3L 1333 MHz |
| Max. Capacity | 8 GB | 8 GB | 8 GB |
| Socket | 1 x 204-pin SODIMM | 1 x 204-pin SODIMM | 1 x 204-pin SODIMM |
Display |
|||
| Controller | Intel Gen7 graphic engine | Intel Gen7 graphic engine | Intel Gen7 graphic engine |
| Processor Graphics |
|
|
|
| VGA | 2560 x 1600 at 60Hz | 2560 x 1600 at 60Hz | 2560 x 1600 at 60Hz |
| LVDS | 24-bit LVDS up to WUXGA 1920 x 1200 at 60Hz Supports single channel 24-bit LVDS up to 1440 x 900 at 60Hz | 24-bit LVDS up to WUXGA 1920 x 1200 at 60Hz Supports single channel 24-bit LVDS up to 1440 x 900 at 60Hz | 24-bit LVDS up to WUXGA 1920 x 1200 at 60Hz Supports single channel 24-bit LVDS up to 1440 x 900 at 60Hz |
| HDMI / DVI | HDMI 1.4a for HD video playback, 1080P at 60Hz, up to 1920 x 1080 DVI 1.0 (DVI-D), up to 1920 x 1080 (Cable is optional) | HDMI 1.4a for HD video playback, 1080P at 60Hz, up to 1920 x 1080 DVI 1.0 (DVI-D), up to 1920 x 1080 (Cable is optional) | HDMI 1.4a for HD video playback, 1080P at 60Hz, up to 1920 x 1080 DVI 1.0 (DVI-D), up to 1920 x 1080 (Cable is optional) |
| Mulit-Display | VGA + LVDS, VGA + HDMI/DVI, HDMI/DVI + LVDS | VGA + LVDS, VGA + HDMI/DVI, HDMI/DVI + LVDS | VGA + LVDS, VGA + HDMI/DVI, HDMI/DVI + LVDS |
Ethernet |
|||
| Speed | 10/100/1000Mbps | 10/100/1000Mbps | 10/100/1000Mbps |
| Controller | Intel I210 | Intel I210 | Intel I210 |
| Connector | Pin Header | Pin Header | Pin Header |
WatchDog Timer |
|||
| WatchDog Timer | Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds | Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds | Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds |
Storage |
|||
| SATA | 1, up to 3Gb/s (300 MB/s) | 1, up to 3Gb/s (300 MB/s) | 1, up to 3Gb/s (300 MB/s) |
| mSATA | 1 x Full-size (SATA signal shared with Onboard flash) | 1 x Full-size (SATA signal shared with Onboard flash) | 1 x Full-size (SATA signal shared with Onboard flash) |
| Onboard Flash* | 16GB/32GB/64GB | 16GB/32GB/64GB | 16GB/32GB/64GB |
Internal I/O |
|||
| Serial | 1 RS-232/422/485 from COM 1, 2 RS-232 from COM2/3 (ESD protection: Air gap ±15kV, Contact ±8kV) | 1 RS-232/422/485 from COM 1, 2 RS-232 from COM2/3 (ESD protection: Air gap ±15kV, Contact ±8kV) | 1 RS-232/422/485 from COM 1, 2 RS-232 from COM2/3 (ESD protection: Air gap ±15kV, Contact ±8kV) |
| USB2.0 | 6 | 6 | 6 |
| I²C | 1 (Shared with SMBus pin) | 1 (Shared with SMBus pin) | 1 (Shared with SMBus pin) |
| SMBus | 1 | 1 | 1 |
| GPIO | 8-bit | 8-bit | 8-bit |
Expansion |
|||
| Mini PCIe | 0 (PCIe is supported by request) | 0 (PCIe is supported by request) | 0 (PCIe is supported by request) |
| PC/104 | PC/104 Expansion (ISA Bus), DMA is not supported and Memory address has limitation* | PC/104 Expansion (ISA Bus), DMA is not supported and Memory address has limitation* | PC/104 Expansion (ISA Bus), DMA is not supported and Memory address has limitation* |
| PCI-104 | PCI-104 Expansion (PCI Bus) | PCI-104 Expansion (PCI Bus) | PCI-104 Expansion (PCI Bus) |
Power |
|||
| Power Type | AT/ATX Support PC104 plus power module* | AT/ATX Support PC104 plus power module* | AT/ATX Support PC104 plus power module* |
| Power Supply Voltage | 5V ± 5% | 5V ± 5% | 5V ± 5% |
| Power Consumption (Typical) |
|
|
|
| Power Consumption (Max, test in HCT) |
|
|
|
| Power Management | ACPI | ACPI | ACPI |
| Battery | Lithium 3 V / 210 mAH | Lithium 3 V / 210 mAH | Lithium 3 V / 210 mAH |
Environment |
|||
| Operational | 0 ~ 60° C with 0.7m/s air flow (Operational humidity: 40° C @ 95% RH Non-Condensing) | 0 ~ 60° C with 0.7m/s air flow (Operational humidity: 40° C @ 95% RH Non-Condensing) | 0 ~ 60° C with 0.7m/s air flow (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational | -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing | -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing | -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing |
Physical Characteristics |
|||
| Dimensions (L x W) | 96 x 90 mm (3.8" x 3.5") | 96 x 90 mm (3.8" x 3.5") | 96 x 90 mm (3.8" x 3.5") |
| Weight | 0.735 kg (1.62 lb) (with heat-sink) | 0.735 kg (1.62 lb) (with heat-sink) | 0.735 kg (1.62 lb) (with heat-sink) |
| Height | Top side: 14.4mm (N2930, E3825 standard), 19.4mm (E3845 & E3825 extend temp.); Bottom side:7.8mm, PCB: 1.6mm | Top side: 14.4mm (N2930, E3825 standard), 19.4mm (E3845 & E3825 extend temp.); Bottom side:7.8mm, PCB: 1.6mm | Top side: 14.4mm (N2930, E3825 standard), 19.4mm (E3845 & E3825 extend temp.); Bottom side:7.8mm, PCB: 1.6mm |
