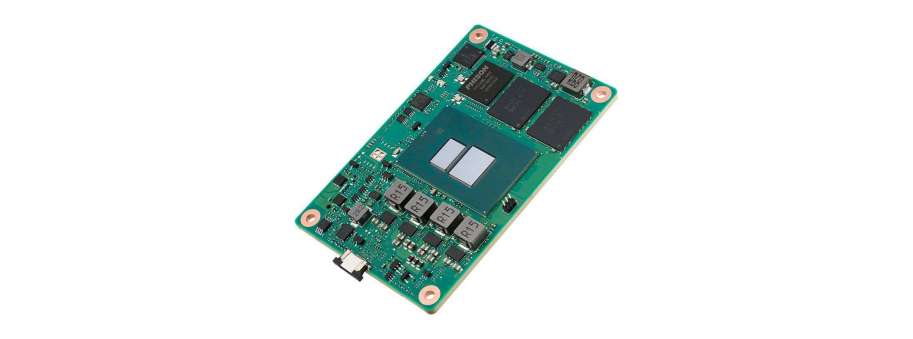

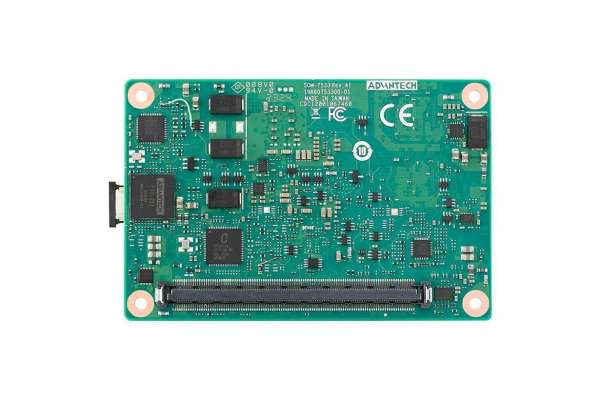

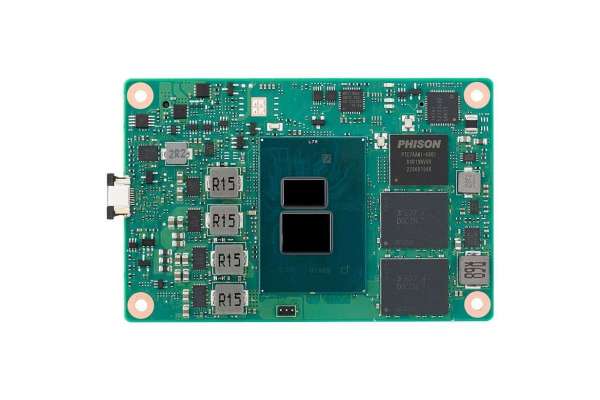

ПК на модуле Advantech SOM-7533/R

Модуль COM Express® Mini с процессорами Intel® Core™ i3, N и Atom® x7000 (Alder Lake-N/Amston Lake) Advantech SOM-7533/R

Цены и наличие

Код товара	Описание товара	Цена с НДС	Наличие на складе
SOM-7533DCCC-S8A1	I3-N305 15W 8C LPDDR5 16G eMMC 64G COMe Mini	45 120,5
SOM-7533CCBC-U0A1	N97 12W 4C LPDDR5 8G eMMC 32G COMe Mini	25 686,2
SOM-7533DCBC-S0A1	N200 9W 4C LPDDR5 16G eMMC 32G COMe Mini	32 967,8
SOM-7533BCAC-S0A1	N50 6W 2C LPDDR5 4G eMMC 16G COMe Mini	23 216,9
SOM-7533CCBC-S5A1	x7425E 12W 4C LPDDR5 8G eMMC 32G COMe Mini	29 307,3
SOM-7533RDCBX-S3A1	x7835RE 12W 8C LPDDR5 16G eMMC 32G COMe Mini	62 864,5
SOM-7533RCCBX-S5A1	x7433RE 9W 4C LPDDR5 8G eMMC 32G COMe Mini	43 067,9
SOM-7533RBC0X-S0A1	x7211RE 6W 2C LPDDR5 4G COMe Mini	35 997,7

• Мини-модуль COM Express® R3.1 тип 10
• Процессоры Intel® Core-i®/Pentium®/Celeron® и Atom® серии x7000
• Одноканальная память LPDDR5 4800MT/s до 16 ГБ, поддержка IBECC
• Поддержка 2,5 Гбит/с TSN
• Многочисленные расширения ввода/вывода: PCIe gen3, USB3.2 Gen2, SATA3.0
• Встроенная память eMMC до 64 Гб (опционально)
• Поддержка iManager, встроенных программных API и Wise-DeviceOn

Processor System
CPU	N50	N97	N200	i3-N305	x7425E	x7835RE	x7433RE	x7211RE
Base Frequency	1.0 GHz	2.0 GHz	1.0 GHz	1.0/1.8 GHz	1.5 GHz	1.3 GHz	1.5 GHz	1.0 GHz
Max Single Core Turbo Frequency	3.4 GHz	3.6 GHz	3.7 GHz	3.8 GHz	3.4 GHz	3.6 GHz	3.4 GHz	3.2 GHz
Cores	2	4	4	8	4	8	4	2
LLC	6 MB	6 MB	6 MB	6 MB	6 MB	6 MB	6 MB	6 MB
CPU TDP	6W	12W	6W	9/15W	12W	12W	9W	6W
IBECC	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
BIOS	AMI UEFI 256Mbit	AMI UEFI 256Mbit	AMI UEFI 256Mbit	AMI UEFI 256Mbit	AMI UEFI 256Mbit	AMI UEFI 256Mbit	AMI UEFI 256Mbit	AMI UEFI 256Mbit
Graphics
Controller	Intel® UHD Graphics	Intel® UHD Graphics	Intel® UHD Graphics	Intel® UHD Graphics	Intel® UHD Graphics	Intel® UHD Graphics	Intel® UHD Graphics	Intel® UHD Graphics
EU	16	24	32	32	24	32	32	16
Base. Frequency	600 MHz	850 MHz	450 MHz	1.0 GHz	800 MHz	800 MHz	600 MHz	400 MHz
Max. Frequency	750 MHz	1.2 GHz	750 MHz	1.25 GHz	1.0 GHz	1 GHz	800 MHz	800 MHz

Дополнительная информация

Form Factor
Form Factor	COM Express Mini
Pin-out Type	COM Express R3.1 Type 10 compatible
Memory
Technology	LPDDR5
Speed	4800 MT/s
Max. Capacity	Up to 16GB
Channel/Socket	Single Channel / Memory down
ECC Support	IBECC Supported by all CPU SKUs
Graphics
3D/HW Acceleration	Open GL 4.6, DirectX 12.1 Vulkan 1.2 (Windows) Mesa 3D, Open GL 4.6, Vulkan 1.2 (Linux)
Display
LCD (LVDS/eDP)	1port LVDS single channel: 1366 x 768 @60Hz/eDP 1920 x 1080 @60Hz (Up to eDP 4096 x 2304 by specific SKU)
DDI (HDMI/DisplayPort)	1 DDI Port Support Configurable HDMI/DisplayPort -HDMI 2.0b: 4096 x 2034 @ 60Hz -DisplayPort 1.4: 4096 x 2034 @ 60Hz
Multiple Display	Double Simultaneous Independent Display
Expansion
PCI Express x1 (Gen3)	4 PCIe x1 by default, 2 PCIe x2 by option; Support Configurable 1 PCIe x4 by SATA option
Audio Interface	HD Audio
LPC	Yes
Serial Bus
SMBus	Yes
I2C Bus	Yes
Ethernet
Gigabit	Intel I226 controller ; Speed: 10M / 100M / 1000M / 2.5G speeds, Support TSN by specific SKU
I/O
SATA3.0	2 Port (6 Gbps)
USB3.2 (Gen2)	2 Ports (10 Gbps)
USB2.0	8 Ports (480 Mbps)
SPI Bus	Yes. For BIOS EEPROM
GPIO	8-bit
Onboard Storage	eMMC up to 64GB (Optional)
Watchdog	65536 level, 0 ~ 65535 sec
COM Port	2 Ports (4-Wire), 2 Ports (2-Wire)
TPM	TPM2.0
CAN Bus	2 Ports
Power
Type	ATX: Vin, VSB; AT: Vin
Supply Voltage	Vin: 4.75V ~ 20V; VSB: 4.75V ~ 5.25V; RTC Battery: 2.0V ~ 3.3V
Power Consumption (Max.)	TBD
Power Consumption (Idle)	TBD
Environment
Operating Temperature	Operating Standard: 0 ~ 60 °C (32 ~ 140 °F), Extend: -40 ~ 85 °C (-40 ~ 185 °F) with 0.7m/s air flow. Storage: -40 ~ 85 °C (-40 ~ 185 °F)
Storage Temperature	-40 ~ 85 °C (-40 ~ 185 °F)
Humidity	Operating: 40 °C@95% relative humidity, non-condensing Storage: 60 °C@95%relative humidity, non-condensing
Vibration Resistance	3.5 Grms
Mechanical
Dimensions	84 mm x 55 m
