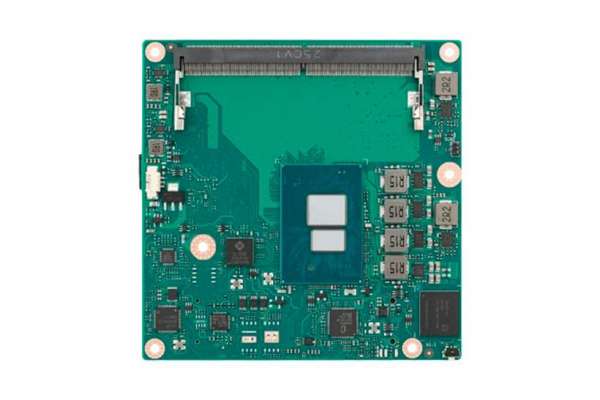

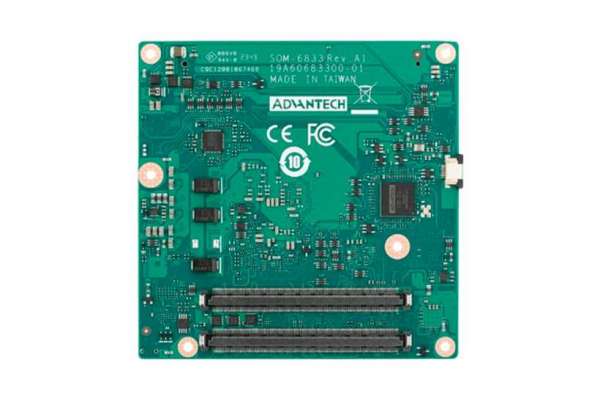

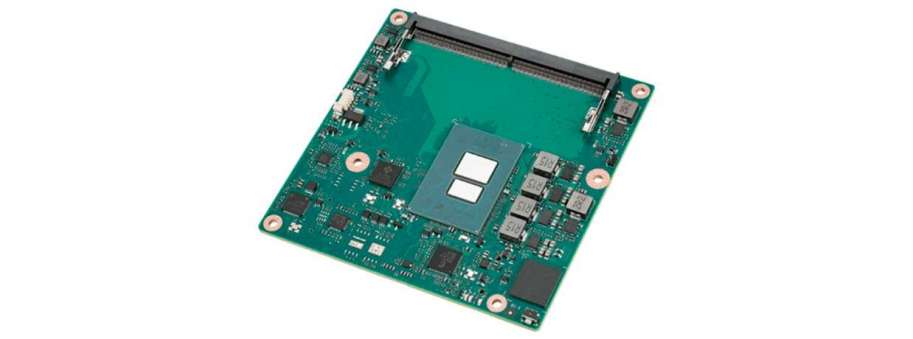

Компьютер на модуле Advantech SOM-6833

Модуль COM Express® на Intel® Core-i®/Pentium®/Celeron® и Atom® x7000 процессорах (кодовое имя: Alder Lake-N) Type6 Advantech SOM-6833

Цены и наличие

Код товара	Описание товара	Цена с НДС	Наличие на складе
SOM-6833N8-S8A1	Intel i3-N305 15W 8C DDR5 128G COMe Compact	36 164,2
SOM-6833A4-S5A1	Atom x7425E 12W 4C DDR5 64G COMe Compact	25 456,1
SOM-6833N4-U0A1	N97 12W 4C DDR5 32G COMe Compact	22 466,6
SOM-6833N4-S0A1	N200 6W 4C DDR5 COMe Compact	27 452,1
SOM-6833N2-S0A1	N50 6W 2C DDR5 eDP COMe Compact	21 643,2
SOM-6833RA78X-S3A1	Atom x7835RE 15W 8C DDR5 32G COMe Compact	52 204,3
SOM-6833RA74X-S5A1	Atom x7433RE 12W 4C DDR5 COMe Compact	35 245,5
SOM-6833RA72X-S0A1	Atom x7211RE 6W 2C DDR5 eDP COMe Compact	32 272,0

• Компактный модуль COM Express® R3.1 тип 6
• Процессоры Intel® Core-i®/Pentium®/Celeron® и Atom® серии x7000
• Одноканальная DDR5 4800MT/s до 16 ГБ, поддержка IBECC
• PCIe gen3, USB3.2 Gen2, SATA3.0, 2.5GbE с поддержкой TSN
• Встроенный eMMC (опция)
• Поддержка iManager, встроенных программных API и Wise-DeviceOn

Processor System
CPU	N50	N97	N200	i3-N305	x7425E
Base Frequency	1.0 GHz	2.0 GHz	1.0 GHz	1.0/1.8 GHz	1.5 GHz
Max Single Core Turbo Frequency	3.4 GHz	3.6 GHz	3.7 GHz	3.8 GHz	3.4 GHz
Cores	2	4	4	8	4
LLC	6 MB	6 MB	6 MB	6 MB	6 MB
CPU TDP	6W	12W	9W	9/15W	12W
IBECC	Yes	Yes	Yes	Yes	Yes
Graphics
EU	16	24	32	32	24
Base. Frequency	600 MHz	850 MHz	450 MHz	1.0 GHz	800 MHz
Max. Frequency	750 MHz	1.2 GHz	750 MHz	1.25 GHz	1.0 GHz

Дополнительная информация

Form Factor
Form Factor	COM Express Compact
Pin-out Type	COM Express R3.1 Type 6 compatible
Processor System
BIOS	AMI UEFI 256Mbit
Memory
Technology	DDR5
Speed	4800 MT/s
Max. Capacity	Up to 16GB
Channel/Socket	Single Channel / 1 x 262P SODIMM
ECC Support	IBECC
Graphics
Controller	Intel® UHD Graphics
3D/HW Acceleration	Open GL 4.6, DirectX 12.1 Vulkan 1.2 (Windows) Mesa 3D, Open GL 4.6, Vulkan 1.2 (Linux)
Display
LCD (LVDS/eDP)	LVDS dual channel: 1920 x 1200@60Hz/eDP 1920 x 1080 @60Hz (Up to eDP 4096 x 2304 by CPU N97 SKU)
DDI (HDMI/DisplayPort)	2 DDI ports support configurable HDMI/DisplayPort -HDMI 2.0b: 4096 x 2160 @ 60Hz -DisplayPort 1.4: 4096 x 2160 @ 60Hz
Multiple Display	Triple Simultaneous Independent Display
Expansion
PCI Express x1 (Gen3)	5 PCIe x1 by default, Up to 7 PCIe x1 with 2 SATA option co-lay
eSPI/LPC	Default LPC, Option eSPI
Serial Bus
SMBus	Yes
I2C Bus	Yes
Ethernet
Gigabit	Intel I226 controller ; Speed: 10M / 100M / 1000M / 2.5G speeds, Support TSN by specific SKU
I/O
SATA3.0	2 Port (6 Gbps)
USB3.2 (Gen2)	Default 2 Ports (10 Gbps), Option to 4 Ports by USB Hub
USB2.0	8 Ports (480 Mbps)
Audio	HD Audio
SPI Bus	Yes. For BIOS EEPROM
GPIO	8-bit
Onboard Storage	eMMC5.1 (Option)
Watchdog	65536 level, 0 ~ 65535 sec
COM Port	2 Ports (2-Wire)
TPM	TPM2.0
CAN Bus	1 Ports (Option with COM Port)
Power
Type	ATX: Vin, VSB; AT: Vin
Supply Voltage	Vin: 8.5V ~ 20V; VSB: 4.75V ~ 5.25V; RTC Battery: 2.0V ~ 3.3V
Power Consumption (Max.)	TBD
Power Consumption (Idle)	TBD
Environmen
Operating Temperature	Standard: 0 ~ 60 °C (32 ~ 140 °F)
Storage Temperature	-40 ~ 85 °C (-40 ~ 185 °F)
Humidity	Operating: 40 °C@95% relative humidity, non-condensing Storage: 60 °C@95%relative humidity, non-condensing
Vibration Resistance	3.5 Grms
Mechanica
Dimensions	95 mm x 95 m
