Компактный ПК со слотами PCIe Advantech IPC-320

Компактный ПК Tower с процессорным разъемом Intel® Core™ i 12-го или 13-го поколения (LGA 1700) и блоком питания мощностью 250 Вт Advantech IPC-320

Цены и наличие

Код товара	Описание товара	Цена с НДС	Наличие на складе
IPC-320-25A	IPC-320 chassis w/250W PSU	20 841,3
AIMB-308H-00A1	LGA1700 Propitiatory H610E/2LAN/HDMI/DP	21 621,9

• Процессор Intel® 12/13 поколения Core™ i9/i7/i5/i3 и Pentium®/Celeron® с набором микросхем H610E
• Конструкция для ограниченного пространства
• Двойной порт USB 3.2 и двойной порт USB 2.0 на передней и задней стороне
• Двойной независимый дисплей (HDMI/DP)
• 2 низкопрофильных слота расширения (PCIe x16 и PCIe x4)
• Встроенный источник питания мощностью 250 Вт, 12 В и 5 В
• Соответствует требованиям Amazon Web Service (AWS) IoT Greengrass.

13th Generation Processors

CPU

i9- 13900(E)

i9- 13900TE

i7- 13700(E)

i7- 13700T(E)

i5- 13500(E)

i5- 13500T(E)

i5- 13400(E)

i3- 13100(E)

i3- 13100T(E)

P-core Base Frequency (Up to)

2.0 GHz

1.1 GHz

2.1 GHz

1.4 GHz

2.5 GHz

1.6 GHz

2.5 GHz

3.4 GHz

2.5 GHz

L3 Cache

36 MB

36 MB

30 MB

30 MB

24 MB

24 MB

20MB

12 MB

12 MB

Cores

24

24

16

16

14

14

10

4

4

Processor Base Power

65 W

35 W

65 W

35 W

65 W

35 W

65 W

60 W

35 W

12th Generation Processor

CPU

i9- 12900(E)

i9- 12900TE

i7- 12700(E)

i7- 12700TE

i5- 12500(E)

i5-12400

i5- 12500TE

i3- 12100(E)

i3- 12100TE

Pentium G7400E

Pentium G7400TE

Celeron G6900E

Celeron G6900TE

Base Frequency

2.4GHz

2.3GHz

2.1 GHz

1.4 GHz

2.9 GHz

2.5GHz

1.9 GHz

3.2 GHz

2.1 GHz

3.6 GHz

3.0 GHz

3.0 GHz

2.4 GHz

L3 Cache

30MB

30MB

25MB

25MB

18 MB

18 MB

18 MB

12 MB

12 MB

6 MB

6 MB

4 MB

4 MB

Cores

16

16

12

12

6

6

6

4

4

2

2

2

2

TDP

65W

35W

65W

35W

65W

35W

35W

65W

35W

46W

35W

46W

35W

Дополнительная информация

Socket	LGA 1700
Temperature	0 ~ 40 °C
Chipset	H610E
BIOS	AMI 256MB SPI Flash
Expansion slot
PCIeX4 (Gen 3)	1 (Max. card length 170 mm)
PCIeX16 (Gen 4)	1 (Max. card length 170 mm)
Memory
Technology	Dual Channel (Non-ECC) DDR4 3200 MHz
Max Capacity	64 GB
Sockets	2 x 288-pin DIMM
Graphics
Controller	Chipset integrated Intel HD Graphics
VRAM	Shares system memory is subjected to OS
Ethernet
Interface	10/100/1000/2.5G Mbps (2.5G for LAN2 only)
Controller	GbE LAN1: Intel I219-V; GbE LAN2: Intel I226-V
Connector	2 x RJ-45
SATA
Max. Data Transfer Rate	600 MB/s
Channel	3
Front Panel I/O and Miscellaneous
USB	4 (2 x USB 3.2 Gen1 and 2 x USB 2.0)
LED Indicators	PWR, HDD

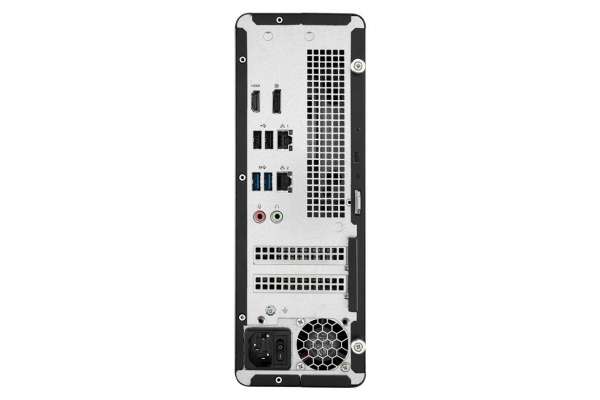

Rear I/O
HDMI	1 (Resolution up to 4096 x 2160 @ 60Hz)
DP 1.2	1 (Resolution up to 4096 x 2304 @ 60Hz)
Ethernet	2
USB	4 (2 x USB 3.2 Gen 1, 2 x USB 2.0)
Audio	2 (Line-out , Mic-in )
Internal connectors
USB type A	1
SATA	3
M.2	M key(link x2)
Drive bay
Slim Optical Drive	1
3.5"	1 (For single 2.5" or 3.5" HDD/SSD, no need 989K008734 bracket) (For dual T: 9.6mm 2.5" HDD/SSD, order 989K008734 bracket)
Cooling
Fan	NA (Optional as 98R)
Air filter	NA (Optional as 98R)
Environment
Temperature	Operating: 0 ~ 40 °C Non-Operating: -20 ~ 60 °C
Humidity	Operating: 85% RH@ 40 °C, non-condensing Non-Operating: 95% RH @ 60 °C, non-condensing
Vibration (5-500Hz)	Operating: 1 Grms Non-Operating: 2 G
Shock	Operating: 10G (with 11ms duration, hal sine wave)
System security monitoring	Chassis intrusion switch (Optional) Padlock hoop Kensington cable lock slot
Physical Characteristics
Dimension (W x H x D)	95 x 270 x 300 mm (3.74 x 10.63 x 11.81 inch)
Weight	3.306 kg (7.289 lb)
EMC Emission Class	EMI class B
