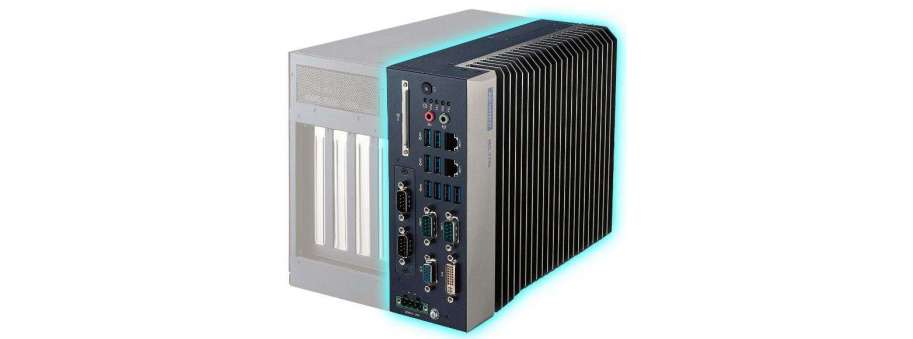

Компактная безвентиляторная система Intel® 6-го и 7-го поколения Core i Advantech MIC-7700
Цены и наличие
| Код товара | Описание товара | Цена с НДС | Наличие на складе |
|---|---|---|---|
| MIC-7700H-00A2 | Компактний промисловий комп'ютер Advantech MIC-7700, H110, Modular IPC | 49 131,1 | |
| MIC-7700H-02A2 | H110, i211AT, Modular IPC | 50 918,9 | |
| MIC-7700Q-00A2 | Компактний промисловий комп'ютер Advantech MIC-7700, Q170, VGA+DVI, 4 COM, 8 USB3.0 | 54 693,4 | |
| MIC-7700Q-02A2 | Q170, i211AT, Modular IPC | 58 961,1 |
- Процессор Intel® для настольных ПК 6-го и 7-го поколения (LGA1151) с чипсетом Q170 / H110
- 2 x RS-232/422/485 и 4 x RS232 последовательных порта (с кабелем расширения)
- 1 x 2,5" HDD, 1 x CFast, 1 x mSATA и 1 mini-PCIe с SIM-картой
- Поддерживает 2 LAN, Isolation COM, 32-битные модули GPIO
- 2 х GigaLAN и 8 х USB 3.0
- VGA и DVI выход
- Поддерживает i-модуль Advantech, SUSIAccess и API встроенного программного обеспечения
- Диапазон входной мощности 9 ~ 36 В постоянного тока
- Широкий диапазон рабочей температуры
Дополнительная информация
| MIC-7700H-00A1 | MIC-7700Q-00A1 | |
| Expansion Slot | ||
|
Mini-PCIE |
1 x miniPCIe with USIM and 1 x mSATA |
1 x miniPCIe with USIM and 1 x mSATA |
| Front I/O Interface | ||
|
USB2.0 |
4 | - |
|
USB3.0 |
4 | 8 |
|
Audio Jack |
1xLine-out; 1x Mic-in |
1xLine-out; 1x Mic-in |
|
Serial Port |
2xRS-232/422/485; 2xRS-232 |
2xRS-232/422/485; 2xRS-232 |
| Environment | ||
|
Operating Shock |
With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration |
With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration |
|
Operating Vibration |
1Grms (with HDD), 3Grms (with SSD) |
1Grms (with HDD), 3Grms (with SSD) |
| Ethernet | ||
|
Interface |
2 x RJ-45 |
2 x RJ-45 |
|
Controller |
LAN1: Intel I219V, LAN2: Intel I210IT |
LAN1: Intel I219V, LAN2: Intel I210IT |
| Graphics | ||
|
Graphic Interface |
VGA + DVI |
VGA + DVI |
|
Chipset Integrated |
Intel HD Graphic 530/510, support DirectX12 |
Intel HD Graphic 530/510, support DirectX12 |
| Miscellaneous | ||
|
Control |
Power Switch |
Power Switch |
| Physical Characteristics | ||
|
Dimensions (W x H x D) |
78 x 192 x 230 mm |
78 x 192 x 230 mm |
|
Weight |
2.8 kg (6.17 lbs) |
2.8 kg (6.17 lbs) |
| Power | ||
|
Power Input |
9-36VDC |
9-36VDC |
|
Power Type |
ATX/AT |
ATX/AT |
| Storage | ||
|
CFast |
1 | 1 |
|
HDD |
1 x internal 2.5" HDD Bay |
1 x internal 2.5" HDD Bay |
| WatchDog Timer | ||
|
Interval |
Programmable 1 ~ 255 sec/min |
Programmable 1 ~ 255 sec/min |
|
Output |
System Reset |
System Reset |
| Memory | ||
|
Max. Capacity |
32GB (16GB per DIMM) |
32GB (16GB per DIMM) |
|
Socket |
2 x 260-pin SO-DIMM |
2 x 260-pin SO-DIMM |
|
Technology |
Dual Channel DDR4-2133MHz |
Dual Channel DDR4-2133MHz |
| Processor System | ||
|
CPU |
Intel Core i3/i5/i7 (LGA1151) |
Intel Core i3/i5/i7 (LGA1151) |
|
Chipset |
Intel H110 |
Intel Q170 |
|
Core Number |
4 / 2 core |
4 / 2 core |
|
BIOS |
AMI 128Mbit SPI Flash |
AMI 128Mbit SPI Flash |
|
Frequency |
Based on Intel CPU spec |
Based on Intel CPU spec |
|
L3 Cache |
8 MB/6 MB/4 MB/3 MB/2 MB |
8 MB/6 MB/4 MB/3 MB/2 MB |
